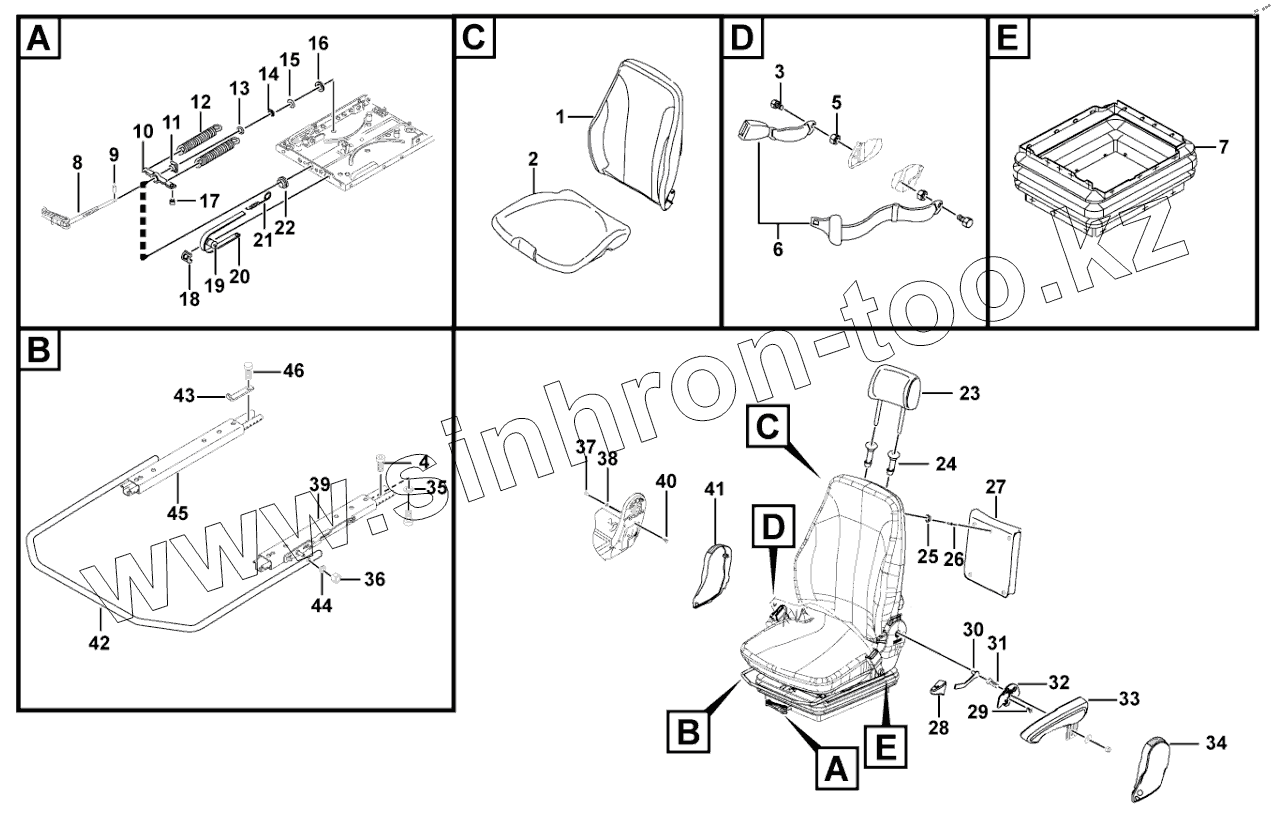

Каталог запасных частей к технике: SDLG L938F. Driver seat
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4190003195003 | Backrest | |
| 2 | 4190003195004 | Seat cushion | |
| 3 | 4190003195005 | Screw | |
| 4 | 4190003392040 | Screw | |
| 5 | 4190003195006 | Nut | |
| 6 | 4190003094 | Safety belt | |
| 7 | 4190003392002 | Bellows | |
| 8 | 4190003195007 | Adjusting bar | |
| 9 | 4190003392004 | Pin | |
| 10 | 4190003392005 | Bracket | |
| 11 | 4190003392006 | Nut | |
| 12 | 4190003392007 | Spring | |
| 13 | 4190003392008 | Washer | |
| 14 | 4190003392009 | Block | |
| 15 | 4190003392010 | Washer | |
| 16 | 4190003392011 | Washer | |
| 17 | 4190003392012 | Plug | |
| 18 | 4190003392013 | Cover | |
| 19 | 4190003392014 | Roller | |
| 20 | 4190003195008 | Bracket | |
| 21 | 4190003392016 | Spring | |
| 22 | 4190003392017 | Bushing | |
| 23 | 4190003195001 | Head restraint | |
| 24 | 4190003392018 | Bushing | |
| 25 | 4190000165003 | Rivet 106408 | |
| 26 | 4190000165002 | Rivet 135786 | |
| 27 | 4190003392019 | Bag | |
| 28 | 4190003392020 | Adjusting bar | |
| 29 | 4190003392021 | Screw | |
| 30 | 4190003392022 | Bracket | |
| 31 | 4190003392023 | Screw | |
| 32 | 4190003392024 | Adjusting plate | |
| 33 | 4190003195002 | Arm rest | |
| 34 | 4190003392025 | Cover | |
| 35 | 4190003392036 | Washer | |
| 36 | 4190003392037 | Nut | |
| 37 | 4190003392028 | Cap | |
| 38 | 4190003392029 | Nut | |
| 39 | 4190003392030 | Slide rail | |
| 40 | 4190003392031 | Screw | |
| 41 | 4190003392032 | Cover | |
| 42 | 4190003392033 | Control rail | |
| 43 | 4190003392034 | Bracket | |
| 44 | 4190003392038 | Washer | |
| 45 | 4190003392035 | Slide rail | |
| 46 | 4190003392039 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
