Каталог запасных частей к технике: SDLG L916. Travel brake
1
1
1
1
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
5
5
6
7
7
7
8
9
9
10
11
12
13
13
14
14
15
15
16
16
17
18
18
19
20
21
22
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

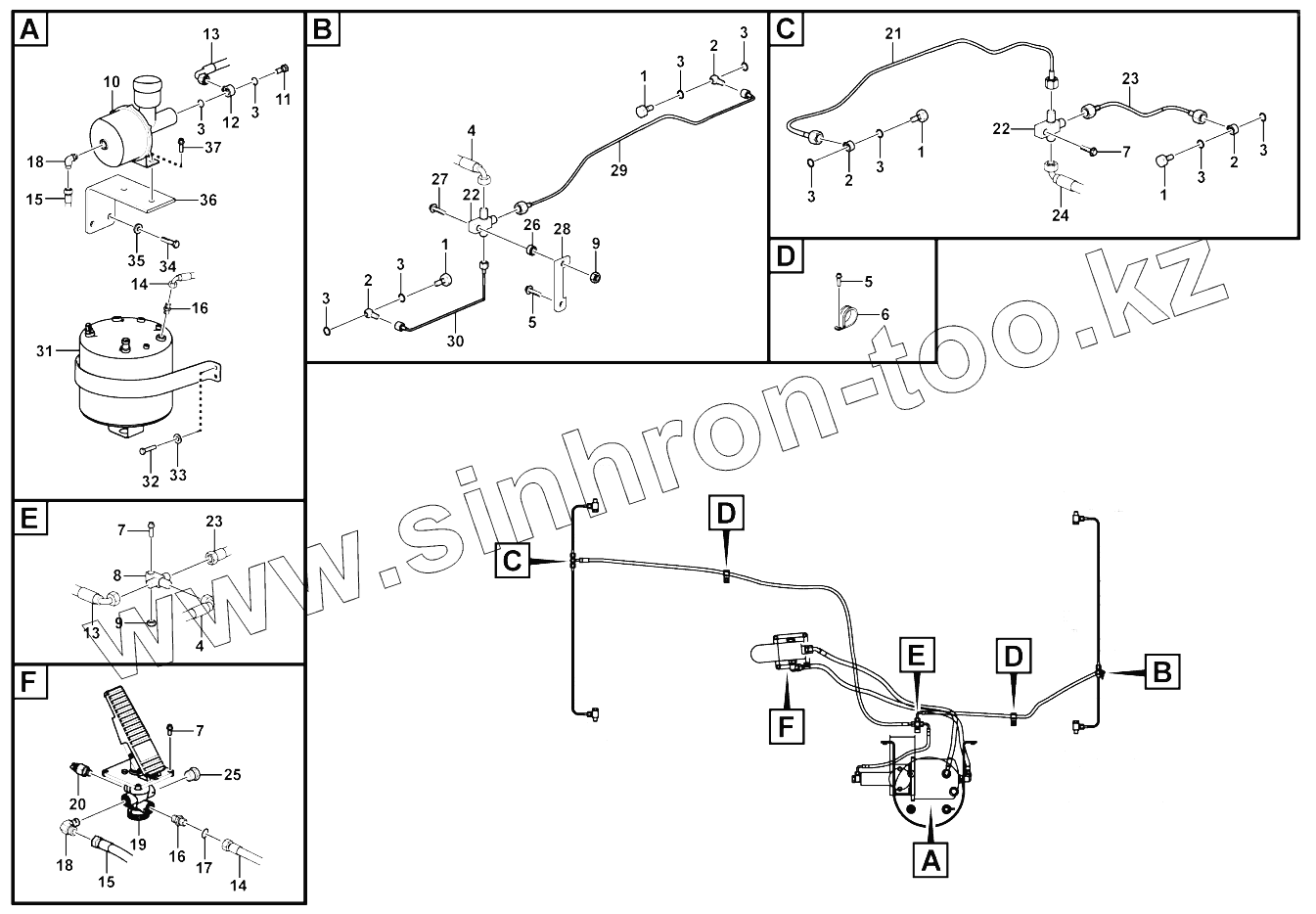

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29220014801 | Nipple | |
| 2 | 29220014811 | Block | |
| 3 | 4030000551 | O-ring | |
| 4 | 4041002075 | Hose | |
| 5 | 4011001297 | Screw | |
| 6 | 4041002410 | Clamp | |
| 7 | 4011001295 | Screw | |
| 8 | 29220015081 | Three-way nipple | |
| 9 | 4013000373 | Nut | |
| 10 | 4120006350 | Pneumatic cylinder | |
| 11 | 29220001231 | CONNECTOR | |
| 12 | 29220001241 | CONNECTOR | |
| 13 | 29220015111 | Hose | |
| 14 | 29220015091 | Air inlet pipe | |
| 15 | 29220015101 | Hose | |
| 16 | 29220016661 | Nipple | |
| 17 | 29220000811 | WASHER | |
| 18 | 29220001201 | JOINT | |
| 19 | 4120003758 | Brake valve | |
| 20 | 4120003757 | Pressure switch | |
| 21 | 29220014851 | Brake pipe | |
| 22 | 29220015011 | Three-way nipple | |
| 23 | 29220014831 | Brake pipe | |
| 24 | 4041002078 | Hose | |
| 25 | 4030000055 | PLUG JB1000-M22x1.5-35 | |
| 26 | 4043002654 | Attaching sleeve | |
| 27 | 4011001425 | Bolt | |
| 28 | 29220015071 | Plate | |
| 29 | 29220015051 | Brake pipe | |
| 30 | 29220015031 | Brake pipe | |
| 31 | 29220014881 | Air tank | |
| 32 | 4011001241 | Screw | |
| 33 | 4015000428 | Washer | |
| 34 | 4011001248 | Screw | |
| 35 | 4015000162 | Washer | |
| 36 | 29220015121 | Bracket | |
| 37 | 4011001302 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
