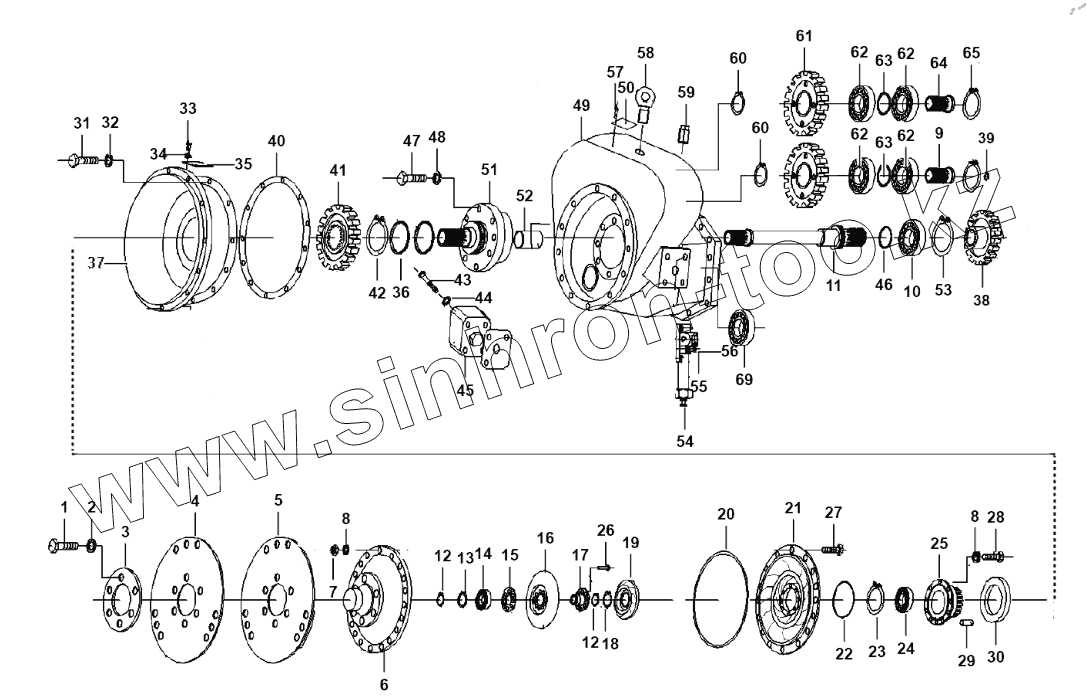

Каталог запасных частей к технике: SDLG L916. Torque converter system
1
2
3
4
5
6
7
8
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
60
61
62
62
62
62
63
63
64
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011001579 | Screw | |
| 2 | 4015000338 | Spring washer | |
| 3 | 4110002138001 | Flange | |
| 4 | 4110002138002 | Plate | |
| 5 | 4110002138003 | Attaching plate | |
| 6 | 4110002138004 | Cover | |
| 7 | 4013000031 | NUT GB6170-M8EpZn-10 | |
| 8 | 4015000036 | WASHER | |
| 9 | 4110002138028 | Shaft | |
| 10 | 4021000021 | ROLLING BEARING GB276-6308 | |
| 11 | 4110002138029 | Shaft | |
| 12 | 4015000257 | CHECK RING GB894.1-38-65Mn | |
| 13 | 4015000046 | SNAP RING | |
| 14 | 4021000011 | BALL BEARIN | |
| 15 | 4110002138005 | Washer | |
| 16 | 4110002138006 | Turbine | |
| 17 | 4110002138007 | Seat | |
| 18 | 4015000133 | Retaining ring | |
| 19 | 4110002138008 | Stator | |
| 20 | 4110002138009 | O-ring | |
| 21 | 4110002138010 | Impeller | |
| 22 | 4110002138032 | O-ring | |
| 23 | 4015000241 | SNAPP RING GB893.1-110-65Mn | |
| 24 | 4021000113 | BALL BEARIN GB276-6212 | |
| 25 | 4110002138011 | Seat | |
| 26 | 4110002138033 | Rivet | |
| 27 | 4011000764 | Bolt | |
| 28 | 4011000993 | Bolt | |
| 29 | 4110002138034 | Pin | |
| 30 | 4110002138012 | Sealing ring | |
| 31 | 4011000763 | Bolt | |
| 32 | 4015000025 | Washer | |
| 33 | 4011001097 | Screw | |
| 34 | 4015000036 | WASHER | |
| 35 | 4110002138013 | Plate | |
| 36 | 4110002138014 | Sealing ring | |
| 37 | 4110002138015 | Cover | |
| 38 | 4110002138031 | Gear | |
| 39 | 4015000019 | CHECK RING | |
| 40 | 4110002138016 | Gasket | |
| 41 | 4110002138017 | Gear | |
| 42 | 4015000239 | Retaining ring | |
| 43 | 4110002138035 | Screw | |
| 44 | 4015000025 | Washer | |
| 45 | 4110002138018 | Valve | |
| 46 | 4110002138030 | Sealing ring | |
| 47 | 4011000763 | Bolt | |
| 48 | 4015000025 | Washer | |
| 49 | 4110002138019 | Housing | |
| 50 | 4110002138020 | Name plate | |
| 51 | 4110002138021 | Stator housing | |
| 52 | 4110002138022 | Sleeve | |
| 53 | 4015000017 | RIONG SNAP | |
| 54 | 4110002138023 | Valve | |
| 55 | 4015000025 | Washer | |
| 56 | 4011000993 | Bolt | |
| 57 | 4019000007 | Rivet | |
| 58 | 4110002442001 | Screw | |
| 59 | 4110002138024 | Plug | |
| 60 | 4015000046 | SNAP RING | |
| 61 | 4110002138025 | Gear | |
| 62 | 4021000011 | BALL BEARIN | |
| 63 | 4110002138026 | Sleeve | |
| 64 | 4110002138027 | Shaft | |
| 65 | 4015000015 | RIONG SNAP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
