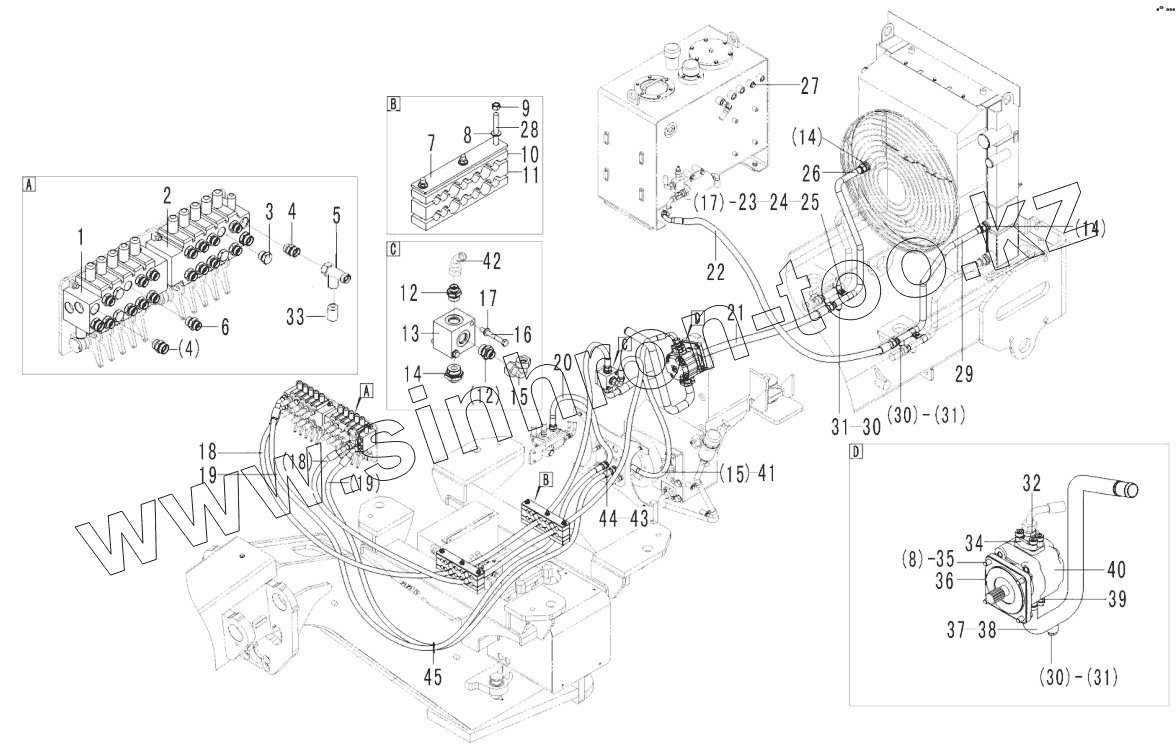

Каталог запасных частей к технике: SDLG G9190. Working pump assembly
1
2
3
4
4
5
6
7
8
8
9
10
11
12
12
13
14
14
14
15
15
16
17
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120004033 | Control valve | |
| 2 | 4120004032 | Control valve | |
| 3 | 4120004882 | Plug | |
| 4 | 4120000264 | Nipple | |
| 5 | 4120001850 | Three-way nipple | |
| 6 | 4120004894 | Nipple | |
| 7 | 28120002531 | Fixing plate | |
| 8 | 4015000168 | WASHER | |
| 9 | 4013000011 | NUT | |
| 10 | 28120002551 | Rubber clamp | |
| 11 | 28120002541 | Rubber clamp | |
| 12 | 4120003763 | Nipple | |
| 13 | 28120004591 | Block | |
| 14 | 4120004835 | Nipple | |
| 15 | 4120000919 | Nipple | |
| 16 | 4011000503 | Болт | |
| 17 | 4015000162 | Washer | |
| 18 | 4120004893 | Hose assembly | |
| 19 | 4120004892 | Hose assembly | |
| 20 | 4120004884 | Hose assembly | |
| 21 | 4120004836 | Hose assembly | |
| 22 | 4120004886 | Hose assembly | |
| 23 | 28120004701 | Clamp | |
| 24 | 4011000082 | BOLT | |
| 25 | 4013000007 | NUT | |
| 26 | 28120005271 | Pipe | |
| 27 | 4120004718 | Plug | |
| 28 | 28120004561 | Locking rod | |
| 29 | 28120004901 | Pipe | |
| 30 | 4041000508 | THREAD PLUG | |
| 31 | 4041000768 | O-RING LGB168-11524 | |
| 32 | 4120004854 | Nipple | |
| 33 | 4120005360 | Nipple | |
| 34 | 4120001115 | Nipple | |
| 35 | 4011000090 | BOLT | |
| 36 | 28120000021 | Gasket | |
| 37 | 28120004851 | Pipe | |
| 38 | 4030000178 | O-RING GB3452.1-30.0x3.55G | |
| 39 | 4120000456 | Flange half | |
| 40 | 4120004039 | Gear pump | |
| 41 | 4120004887 | Hose assembly | |
| 42 | 4041001417 | Nipple | |
| 43 | 28120004881 | Nipple | |
| 44 | 28120004671 | Nut | |
| 45 | 4019000023 | Cable tie |
