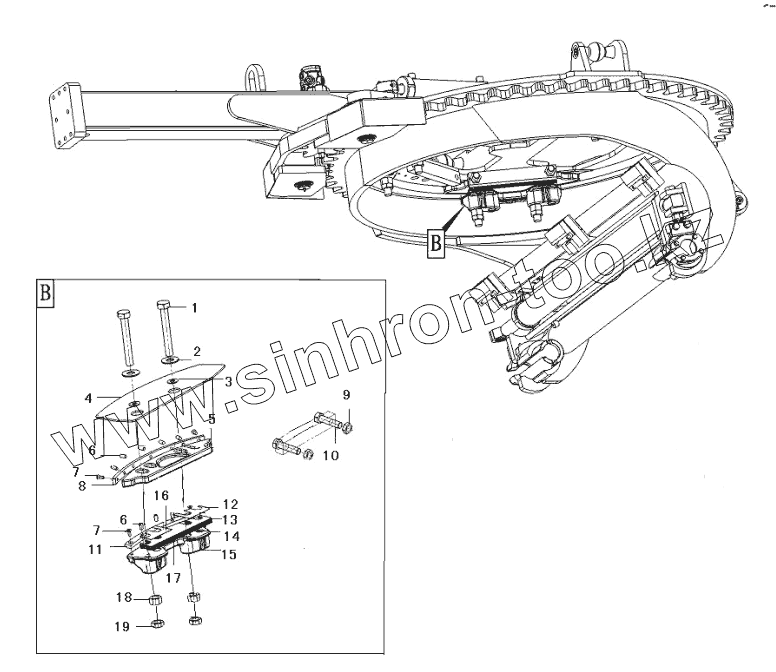

Каталог запасных частей к технике: SDLG G9190. Work equipment
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
B877 (2013)
B877 (2017)
G9138 (2020)
G9190 (2013)
L916 (2017)
L938F (2016)
L948 (2016)
L948F (2015)
L953N (2017)
L956F (2017)
L958F (2019)
LG6150E
LG6210E (2013)
LG918 (2008)
LG918 (2009)
LG933 (2008)
LG933 (2018)
LG933L (2011)
LG936 (2007)
LG936 (2007)
LG936L (2009)
LG936L (2013)
LG936L (2017)
LG938 (2006)
LG938 (2010)
LG938F (2015)
LG938L (2010)
LG944MSK (2015)
LG946L (2010)
LG952 (2007)
LG952 (2009)
LG952H (2009)
LG952H (2012)
LG952N (2016)
LG953 (2006)
LG953 (2008)
LG953 (2009)
LG953N (2015)
LG955N (2015)
LG956 (2005)
LG956F (2016)
LG956FH (2017)
LG956L (2009)
LG956L (2015)
LG956V (2015)
LG958 (2006)
LG958L (2009)
LG958L (2012)
LG958N (2013)
LG958N (2015)
LG968 (2007)
LG968 (2009)
LG969 (2007)
LG969 (2009)
LG969N (2015)
LGB680 (2007)
Схема
>
Не выбрано
Engine assembly
The fuel tank assembly
Radiator assembly
Upper cover plate assembly
Fuel pre filter components
Muffler assembly
Air cleaner assembly
Transmission assembly
4644101 Tank
4644102 Input section
4644103 The output part
4644106 Control valve
4644107 Tachometer
4644108 Idler gear
4644109 Stop dog
4644120 Control pressure valve
4644121 Oil pipe
4644125 Sensor kit
4644130 Assembly block
4644131 Oil pipe
4644138 Fuel filter
4644 151KV+K1 Clutch
4644 152KR+K2 Clutch
4644 153K3+K4 Clutch
4644 154 Power take-off component
4644 137 Emergency.steer.pump
4644155 Power take-off component
4644 159 Control valve parts
4644 199 Loose parts
Transmission radiator assembly
Front axle installation drawing
Front axle installation drawing
Tire 17.5-25-16PRTT E-2/L-2
Front axle rim 14.00/1.5-25 (371379)
Rim 14.00/1.5-25 (371300)
Rear axle
Wheel assembly
Rear axle rim 14.00/1.5-25 (371379)
Rim 14.00/1.5-25 (371300)
Axle assembly 90000283
82513600 Carrier assembly
93000011 Planetary assembly
84787100 Brake assembly
90500021 Left balance-box assembly
90500022 Right balance-box assembly
Drive shaft assembly
Drive shaft assembly
Hydraulic tank assembly
Working pump assembly
Turning joint
Control valve assembly
Cylinder assembly
Cylinder assembly
Blade assembly
Blade assembly
Cylinder assembly
Hydraulic cylinder 90x50x1346-1794 (3713CH)
Hydraulic cylinder 90x50x693.5-955.5 (3713CH)
Hydraulic cylinder 100x50x169-473 (3713CH)
Hydraulic cylinder 100x50x260.5-562 (3713CH)
Left steering cylinder 63x45x340-577 (3713CH)
Right steering cylinder 63x45x340-577 (3713CH)
Cylinder 90x50x1379.5-493.5 (3713CH)
Hydraulic cylinder 80x35x279.5-507 (3713CH)
Hydraulic cylinder 115x50x303-610 (3713CH)
Hydraulic cylinder 80x60x63.5 (3713CH)
Pump JHP2032 (370101)
ZH0401A200 (320212) Turning joint
AX31368-4 (3100AX) Control vavle
AX31368-5 (3100AX) Control vavle
Circle/drawbar assembly
Swing frame assembly
Working equipment
Work equipment
Work equipment
Tilting cradle, assembly single tilt, light duty circle
Ball stud, assembly
Retaining plate, ball cap assy machd
Blade assembly
Steering pump assembly
Steering gear assembly
Steering cylinder assembly
JHP2032/Gj1016 (370101) Gear pump
Parking brake assembly
LG19-CZJG-LGS814 Parking brake system
Service brake assembly
Filter assembly
Brake valve assy
Oil returning block assembly
Prefill valve assembly
SJXGL60X10 Filter
Accumulator assembly
Solrnoid valve assembly
06-466-103 Brake valve
06-463-020 Control valve
Front frame assembly
Articulation ass
Cab assy
Cab assy
Cab electric system
Interior assembly
Door-sys
Control lever assembly
Support member assembly
Air spring group
Steering assembly
Valve mounting assembly
Steerign column
Transmission system
Seat assembly
Engine hood
Symbol and sign
Cover assembly
Left front fender
Right front fender
Left rear fender
Right rear fender
Ladder
Bracket
Air conditioner assy
Air conditioner system
Evaporator assembly (330112)
Electric system
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4011000750
Bolt
2
4015000119
WASHER
3
28350001751
Washer
4
28350001651
Wear part
5
28350001681
Guide plate
6
28350002061
Pin
7
28350002051
Screw
8
28350002101
Wear plate
9
4013000310
Nut
10
4011001061
Screw
11
28350001691
Wear part
12
28350001741
Shim
13
28350001721
Shim
14
28350001711
Shim
15
28350001671
Clamping plate
16
28350001731
Shim
17
28350001701
Shim
18
4013000308
Nut
19
4013000309
Nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
