Каталог запасных частей к технике: SDLG G9190. Support member assembly
1
2
3
3
3
3
3
4
4
4
5
6
7
7
7
7
8
8
9
10
11
12
13
14
14
15
15
16
17
17
18
18
19
19
20
21
22
23
24
25
25
26
26
27
27
28
29
30
31
32
33
34
35
36

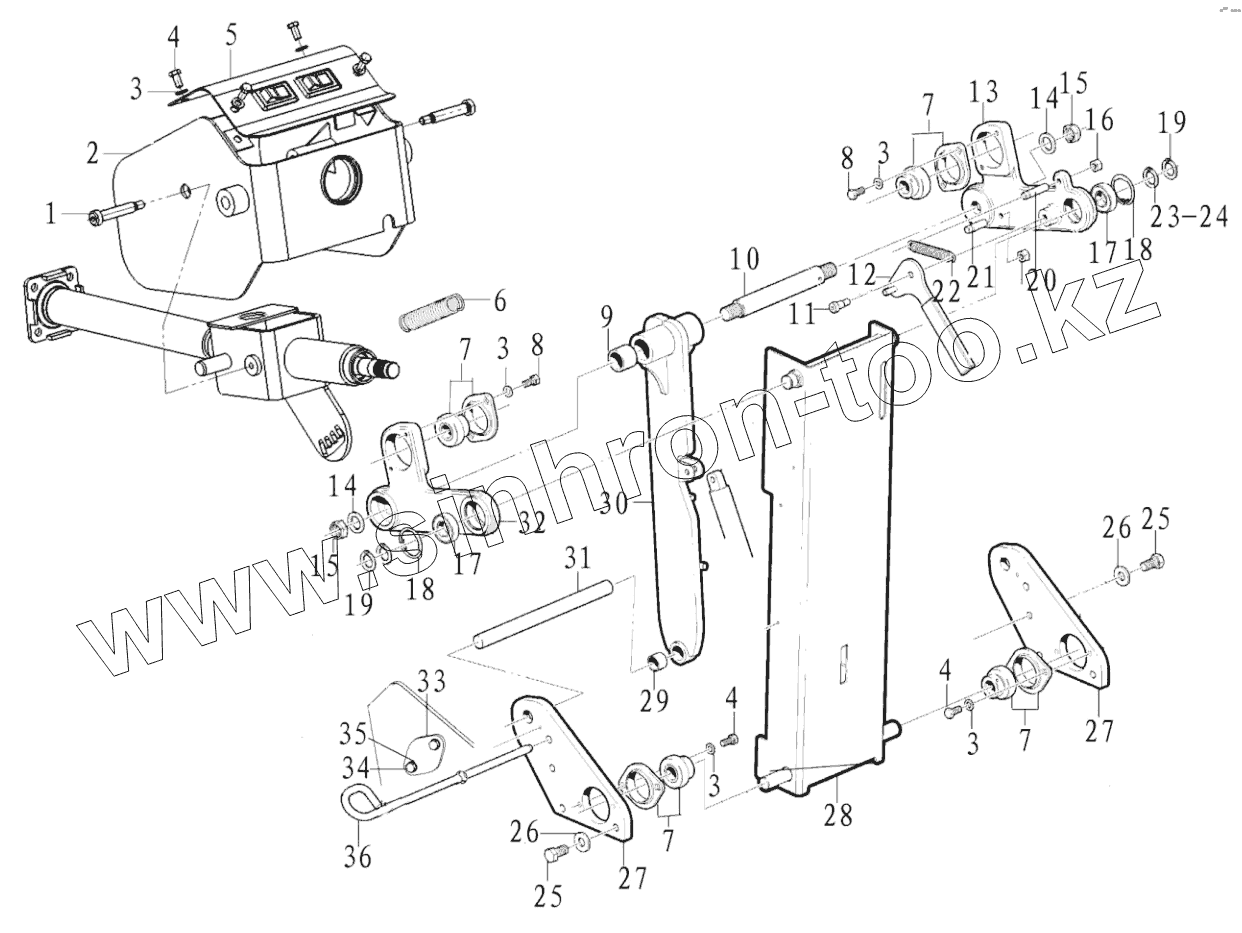

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4014000144 | BOLT GB70.1-M10x70EpZn-8.8 | |
| 2 | 28270007391 | Bracket | |
| 3 | 4015000072 | WASHER | |
| 4 | 4011000632 | BOLT GB5783-M8x16-8.8 | |
| 5 | 28270007401 | Cover | |
| 6 | 28270006301 | Spring | |
| 7 | 4021000282 | Bearing | |
| 8 | 4011000105 | BOLT | |
| 9 | 28270006081 | Bushing | |
| 10 | 28270006221 | Shaft | |
| 11 | 28270006271 | Screw | |
| 12 | 28270006231 | Handle | |
| 13 | 4190003002 | Attaching frame | |
| 14 | 4015000181 | WASHER | |
| 15 | 4013000082 | Nut | |
| 16 | 4013000007 | NUT | |
| 17 | 4021000283 | Ball bearing | |
| 18 | 4015000204 | RING SNAP GB893.1-42-65Mn | |
| 19 | 4015000129 | Retaining ring | |
| 20 | 28270006281 | Pin | |
| 21 | 28270006291 | Pin | |
| 22 | 28270006311 | Spring | |
| 23 | 28270007801 | Shim | |
| 24 | 28270007811 | Shim | |
| 25 | 4011000081 | BOLT | |
| 26 | 4015000162 | Washer | |
| 27 | 28270006131 | Support plate | |
| 28 | 28270006161 | Support plate | |
| 29 | 28270006091 | Bushing | |
| 30 | 28270006021 | Support plate | |
| 31 | 4190003001 | Shaft | |
| 32 | 4190003003 | Attaching frame | |
| 33 | 28270007871 | Cover | |
| 34 | 4011000423 | Screw | |
| 35 | 4015000207 | WASHER | |
| 36 | 28270006141 | Pin |
