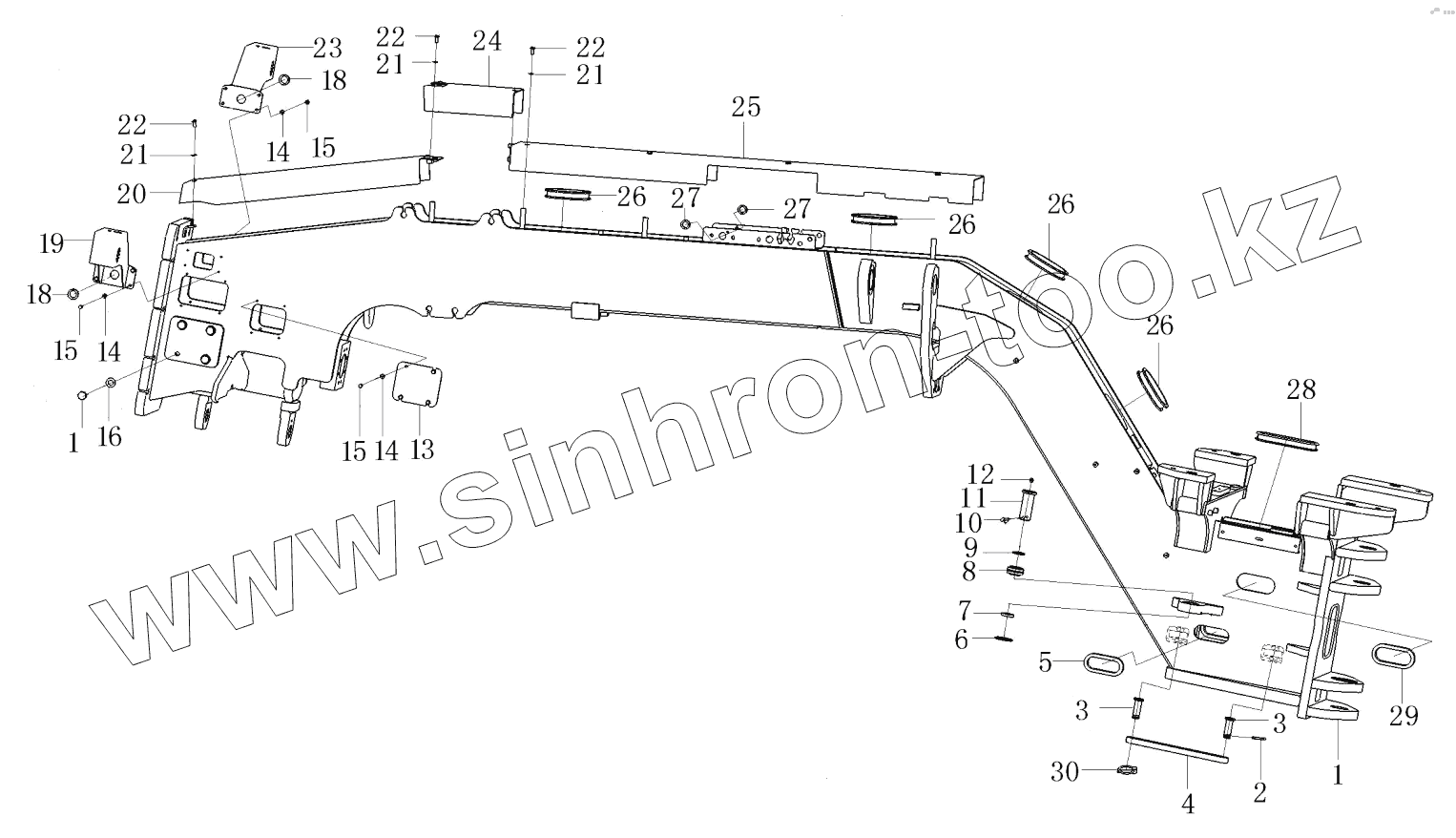

Каталог запасных частей к технике: SDLG G9190. Front frame assembly
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
15
15
16
18
18
19
20
21
21
21
22
22
22
23
24
25
26
26
26
26
27
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28210008571 | Front frame | |
| 2 | 4016000194 | SPLIT PIN GB91-8x50EpZn-Q235A | |
| 3 | 4016000329 | Pin | |
| 4 | 28210009441 | Lock lever | |
| 5 | 28210009691 | Rubber collar | |
| 6 | 28210010541 | Washer | |
| 7 | 28210010531 | Sleeve | |
| 8 | 4021000236 | Spherical plain bearing | |
| 9 | 28210010521 | Sleeve | |
| 10 | 4016000099 | Split pin | |
| 11 | 28210010511 | Pin | |
| 12 | 4030000065 | GREASE NIPPLE | |
| 13 | 28210008881 | Mounting plate | |
| 14 | 4015000162 | Washer | |
| 15 | 4011000084 | BOLT | |
| 16 | 4015000167 | WASHER GB97.1-24EpZn-300HV | |
| 17 | 4011000384 | Screw | |
| 18 | 29310000091 | RUBBER | |
| 19 | 28210011101 | Lantern bracket | |
| 20 | 28210008811 | Weld plate | |
| 21 | 4015000168 | WASHER | |
| 22 | 4011000197 | BOLT | |
| 23 | 28210011111 | Lantern bracket | |
| 24 | 28210008871 | Plate | |
| 25 | 28210008841 | Weld plate | |
| 26 | 26240004811 | Rubber sleeve | |
| 27 | 29310000071 | RUBBER SLEEVE | |
| 28 | 28210009701 | Rubber collar | |
| 29 | 26240004821 | Rubber sleeve | |
| 30 | 28210010291 | Clamp |
