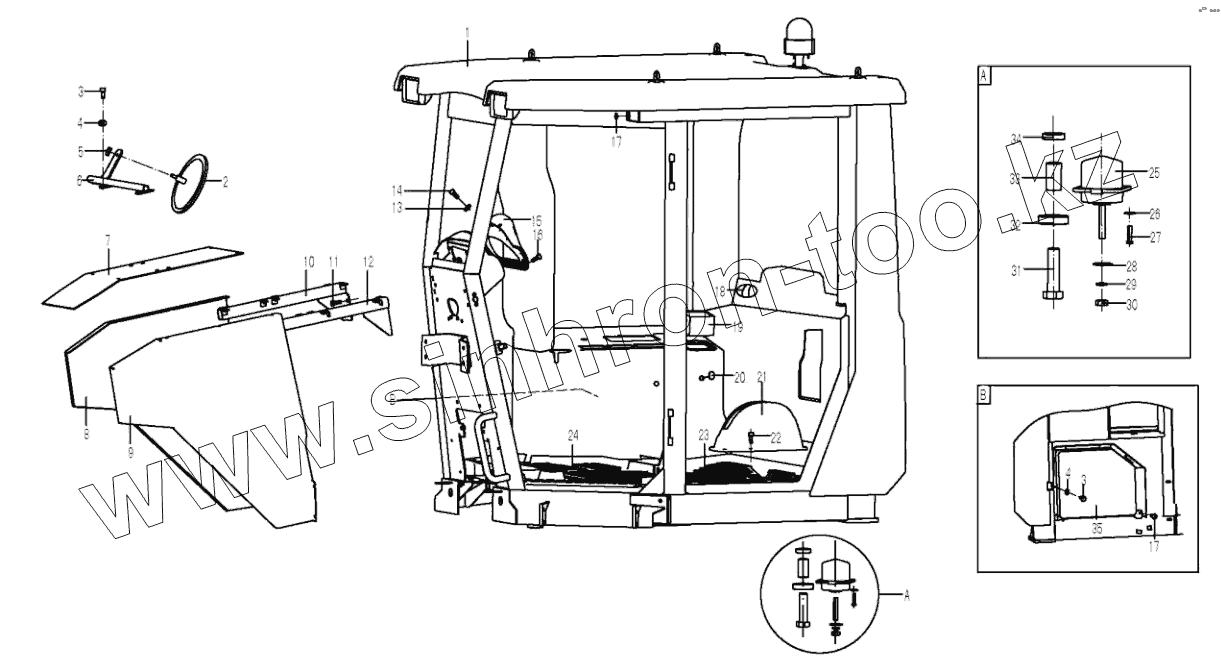

Каталог запасных частей к технике: SDLG G9190. Cab assy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28250005651 | Cab | |
| 2 | 11211277 | Rear view mirror | |
| 3 | 4011000101 | BOLT | |
| 4 | 4015000198 | Washer | |
| 5 | 4013000007 | NUT | |
| 6 | 28250007761 | Bracket | |
| 7 | 28250007631 | Guard plate | |
| 8 | 28250007651 | Guard plate | |
| 9 | 28250007641 | Guard plate | |
| 10 | 28250007571 | Bracket | |
| 11 | 4011000474 | BOLT | |
| 12 | 28250006811 | Bracket | |
| 13 | 26290004591 | Nut | |
| 14 | 4014000068 | Screw | |
| 15 | 29290012561 | Protecting cover | |
| 16 | 4014000048 | SCREW | |
| 17 | 4011000458 | BOLT | |
| 18 | 29290012851 | Air outlet | |
| 19 | 29290012711 | Box | |
| 20 | 29310018251 | Rubber cap | |
| 21 | 29310016861 | Protecting cover | |
| 22 | 4014000058 | SCREW | |
| 23 | 28250008171 | Rubber mat | |
| 24 | 28250008161 | Rubber mat | |
| 25 | 29310020291 | Shock absorber | |
| 26 | 4015000197 | WASHER | |
| 27 | 4011000184 | BOLT | |
| 28 | 4015000305 | Retaining ring | |
| 29 | 4015000098 | WASHER GB93-16-65Mn | |
| 30 | 4013000016 | NUT | |
| 31 | 29090007982 | Screw | |
| 32 | 28250008341 | Washer | |
| 33 | 29310016541 | Bushing | |
| 34 | 29310016531 | Shim | |
| 35 | 29350010471 | Ventilation unit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
