Каталог запасных частей к технике: SDLG G9190. Accumulator assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано B877 (2013) B877 (2017) G9138 (2020) G9190 (2013) L916 (2017) L938F (2016) L948 (2016) L948F (2015) L953N (2017) L956F (2017) L958F (2019) LG6150E LG6210E (2013) LG918 (2008) LG918 (2009) LG933 (2008) LG933 (2018) LG933L (2011) LG936 (2007) LG936 (2007) LG936L (2009) LG936L (2013) LG936L (2017) LG938 (2006) LG938 (2010) LG938F (2015) LG938L (2010) LG944MSK (2015) LG946L (2010) LG952 (2007) LG952 (2009) LG952H (2009) LG952H (2012) LG952N (2016) LG953 (2006) LG953 (2008) LG953 (2009) LG953N (2015) LG955N (2015) LG956 (2005) LG956F (2016) LG956FH (2017) LG956L (2009) LG956L (2015) LG956V (2015) LG958 (2006) LG958L (2009) LG958L (2012) LG958N (2013) LG958N (2015) LG968 (2007) LG968 (2009) LG969 (2007) LG969 (2009) LG969N (2015) LGB680 (2007)

Схема > Не выбрано Engine assembly The fuel tank assembly Radiator assembly Upper cover plate assembly Fuel pre filter components Muffler assembly Air cleaner assembly Transmission assembly 4644101 Tank 4644102 Input section 4644103 The output part 4644106 Control valve 4644107 Tachometer 4644108 Idler gear 4644109 Stop dog 4644120 Control pressure valve 4644121 Oil pipe 4644125 Sensor kit 4644130 Assembly block 4644131 Oil pipe 4644138 Fuel filter 4644 151KV+K1 Clutch 4644 152KR+K2 Clutch 4644 153K3+K4 Clutch 4644 154 Power take-off component 4644 137 Emergency.steer.pump 4644155 Power take-off component 4644 159 Control valve parts 4644 199 Loose parts Transmission radiator assembly Front axle installation drawing Front axle installation drawing Tire 17.5-25-16PRTT E-2/L-2 Front axle rim 14.00/1.5-25 (371379) Rim 14.00/1.5-25 (371300) Rear axle Wheel assembly Rear axle rim 14.00/1.5-25 (371379) Rim 14.00/1.5-25 (371300) Axle assembly 90000283 82513600 Carrier assembly 93000011 Planetary assembly 84787100 Brake assembly 90500021 Left balance-box assembly 90500022 Right balance-box assembly Drive shaft assembly Drive shaft assembly Hydraulic tank assembly Working pump assembly Turning joint Control valve assembly Cylinder assembly Cylinder assembly Blade assembly Blade assembly Cylinder assembly Hydraulic cylinder 90x50x1346-1794 (3713CH) Hydraulic cylinder 90x50x693.5-955.5 (3713CH) Hydraulic cylinder 100x50x169-473 (3713CH) Hydraulic cylinder 100x50x260.5-562 (3713CH) Left steering cylinder 63x45x340-577 (3713CH) Right steering cylinder 63x45x340-577 (3713CH) Cylinder 90x50x1379.5-493.5 (3713CH) Hydraulic cylinder 80x35x279.5-507 (3713CH) Hydraulic cylinder 115x50x303-610 (3713CH) Hydraulic cylinder 80x60x63.5 (3713CH) Pump JHP2032 (370101) ZH0401A200 (320212) Turning joint AX31368-4 (3100AX) Control vavle AX31368-5 (3100AX) Control vavle Circle/drawbar assembly Swing frame assembly Working equipment Work equipment Work equipment Tilting cradle, assembly single tilt, light duty circle Ball stud, assembly Retaining plate, ball cap assy machd Blade assembly Steering pump assembly Steering gear assembly Steering cylinder assembly JHP2032/Gj1016 (370101) Gear pump Parking brake assembly LG19-CZJG-LGS814 Parking brake system Service brake assembly Filter assembly Brake valve assy Oil returning block assembly Prefill valve assembly SJXGL60X10 Filter Accumulator assembly Solrnoid valve assembly 06-466-103 Brake valve 06-463-020 Control valve Front frame assembly Articulation ass Cab assy Cab assy Cab electric system Interior assembly Door-sys Control lever assembly Support member assembly Air spring group Steering assembly Valve mounting assembly Steerign column Transmission system Seat assembly Engine hood Symbol and sign Cover assembly Left front fender Right front fender Left rear fender Right rear fender Ladder Bracket Air conditioner assy Air conditioner system Evaporator assembly (330112) Electric system

1

2

3

4

5

6

7

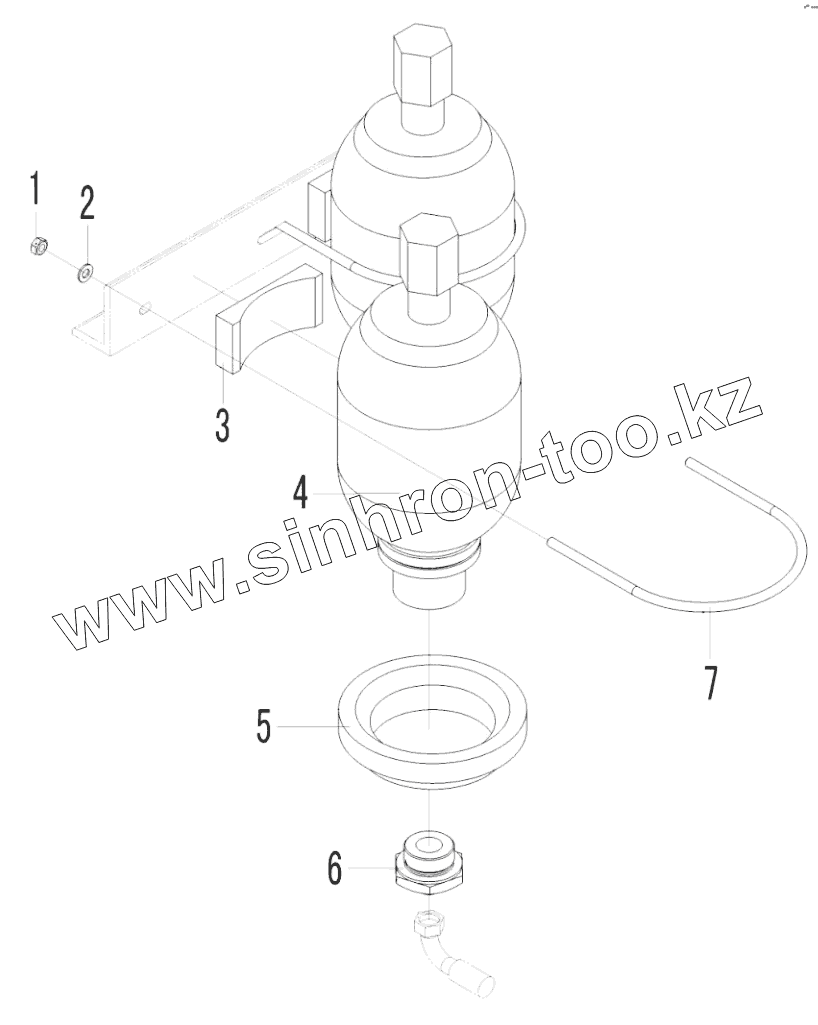

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4013000210		Nut
2	4015000072		WASHER
3	28180003171		Rubber mat
4	4120004038		Accumulator
5	29220010311		Rubber sleeve
6	29220010271		Nipple
7	29220010301		U-bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
