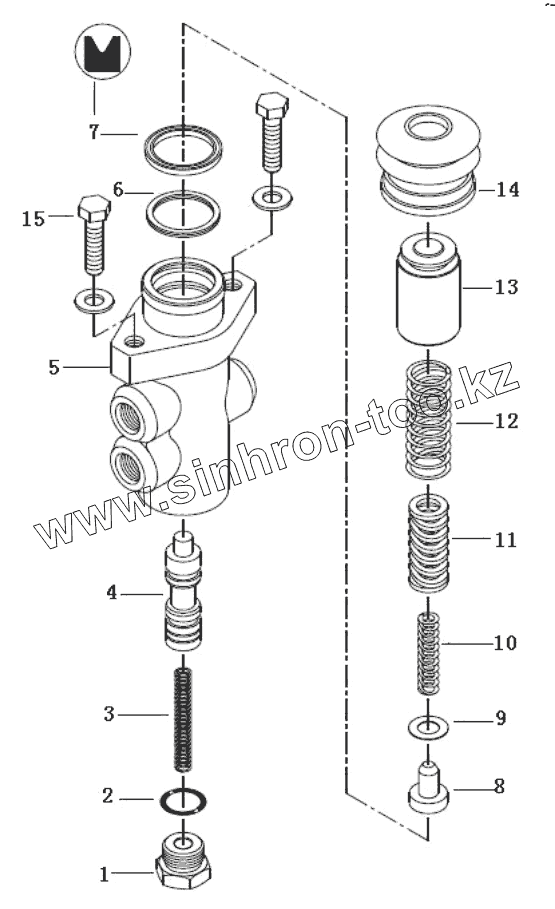

06-466-103 Brake valve
06-463-020 Control valve
Front frame assembly
Articulation ass
Cab assy
Cab assy
Cab electric system
Interior assembly
Door-sys
Control lever assembly
Support member assembly
Air spring group
Steering assembly
Valve mounting assembly
Steerign column
Transmission system
Seat assembly
Engine hood
Symbol and sign
Cover assembly
Left front fender
Right front fender
Left rear fender
Right rear fender
Ladder
Bracket
Air conditioner assy
Air conditioner system
Evaporator assembly (330112)
Electric system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4120005359001
Plug
2
4120005359002
Repair kit
3
4120005359003
Spring
4
4120005359004
Spool
5
4120005359005
Housing
6
4120005359002
Repair kit
7
4120005359002
Repair kit
8
4120005359006
Retainer
9
4120005359007
Shim
10
4120005359008
Spring
11
4120005359009
Spring
12
4120005359010
Spring
13
4120005359011
Piston
14
4120005359002
Repair kit
15
4120005359002
Repair kit
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
