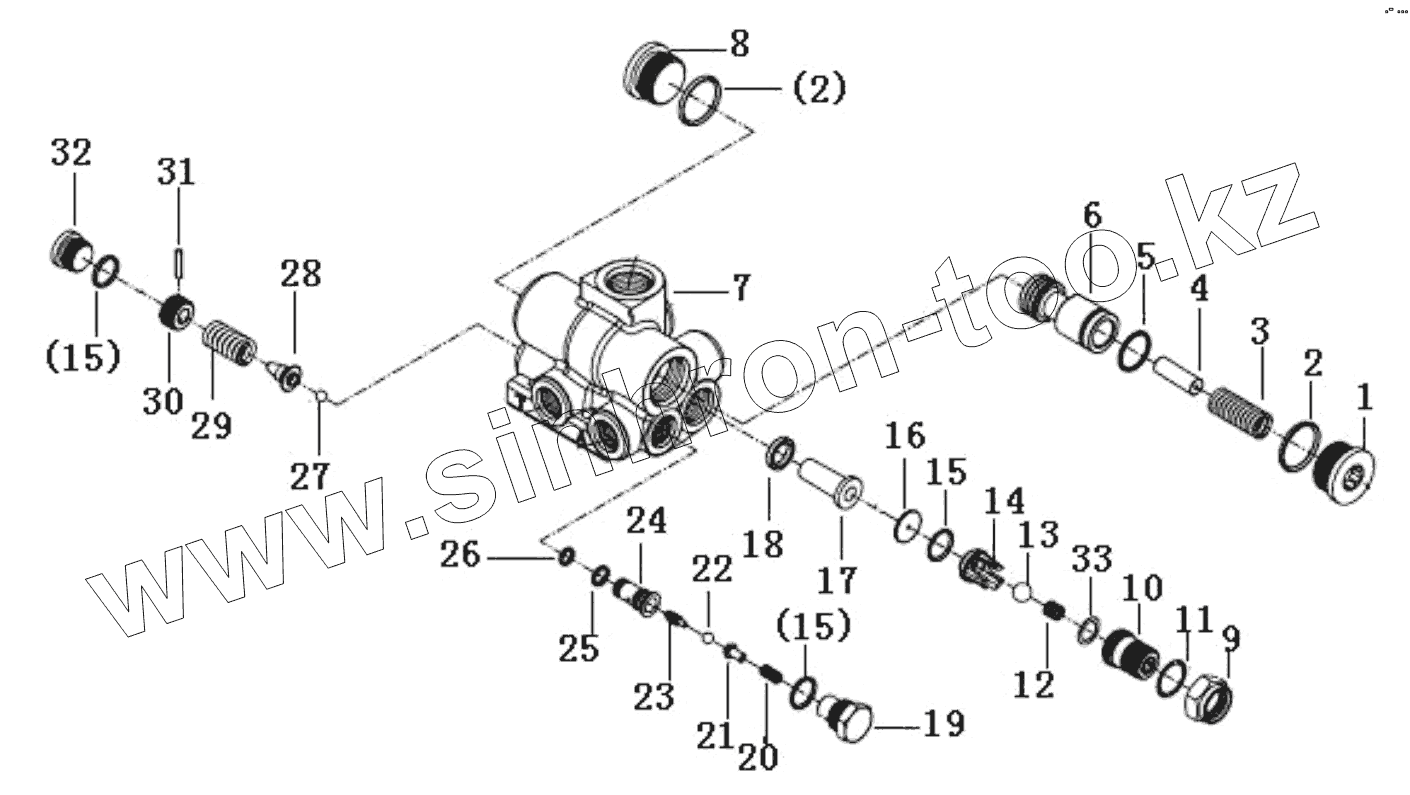

Каталог запасных частей к технике: SDLG G9190. 06-463-020 Control valve
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120005358001 | Plug | |
| 2 | 4120005358002 | Repair kit | |
| 3 | 4120005358003 | Spring | |
| 4 | 4120005358004 | Rod | |
| 5 | 4120005358002 | Repair kit | |
| 6 | 4120005358005 | Spool | |
| 7 | 4120005358006 | Housing | |
| 8 | 4120005358007 | Plug | |
| 9 | 4120005358008 | Nut | |
| 10 | 4120005358009 | Screw | |
| 11 | 4120005358002 | Repair kit | |
| 12 | 4120005358010 | Spring | |
| 13 | 4120005358011 | Ball | |
| 14 | 4120005358012 | Seat | |
| 15 | 4120005358002 | Repair kit | |
| 16 | 4120005358013 | Washer | |
| 17 | 4120005358002 | Repair kit | |
| 18 | 4120005358014 | Washer | |
| 19 | 4120005358015 | Plug | |
| 20 | 4120005358016 | Spring | |
| 21 | 4120005358017 | Stop dog | |
| 22 | 4120005358018 | Ball | |
| 23 | 4120005358019 | Spool | |
| 24 | 4120005358020 | Insert | |
| 25 | 4120005358002 | Repair kit | |
| 26 | 4120005358002 | Repair kit | |
| 27 | 4120005358021 | Ball | |
| 28 | 4120005358022 | Retainer | |
| 29 | 4120005358023 | Spring | |
| 30 | 4120005358024 | Screw | |
| 31 | 4120005358002 | Repair kit | |
| 32 | 4120005358025 | Plug | |
| 33 | 4120005358026 | Shim |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
