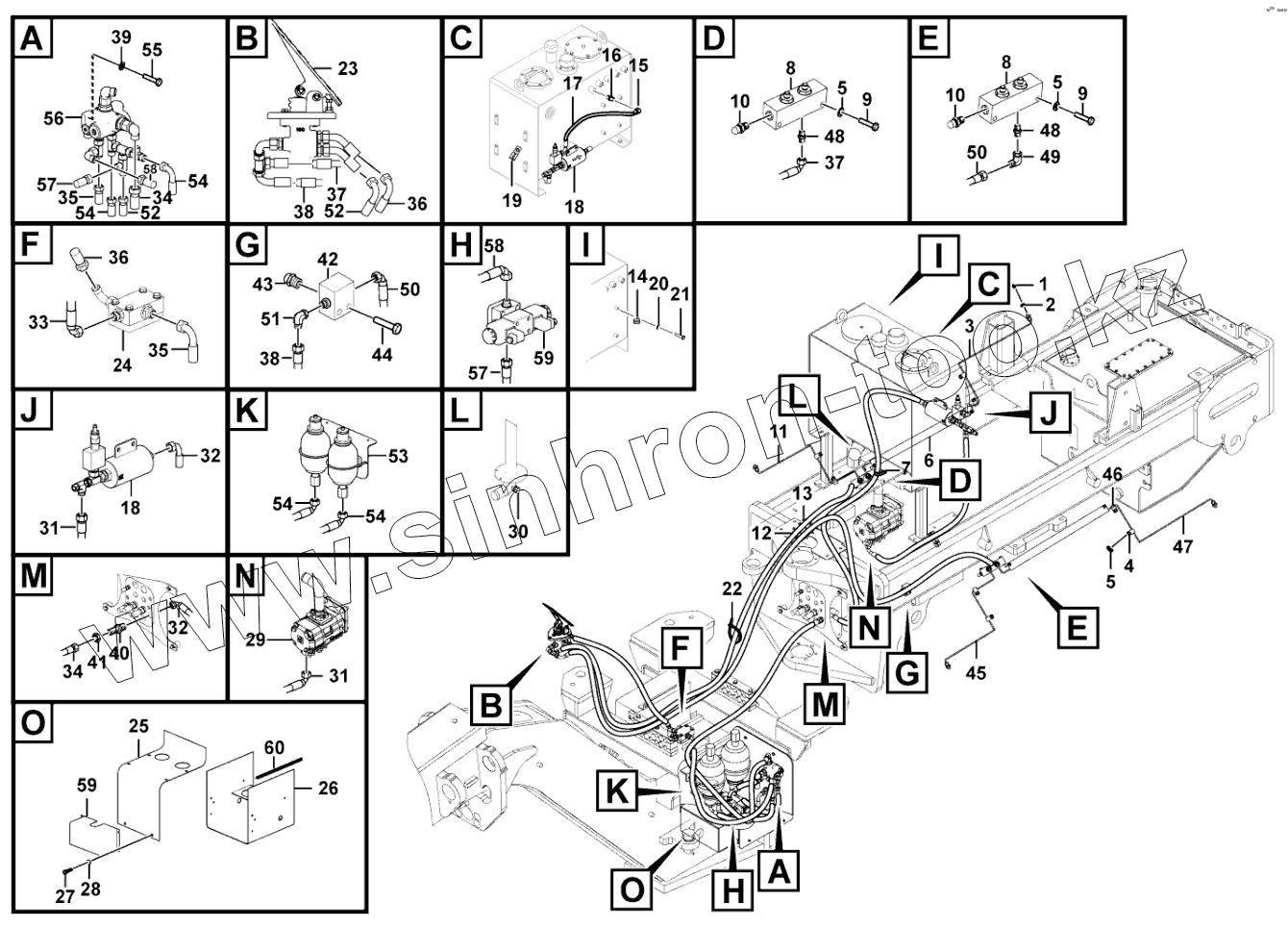

Каталог запасных частей к технике: SDLG G9138. Travel brake
1
2
3
4
5
5
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
33
34
34
35
35
36
36
37
37
38
38
39
40
41
42
43
44
45
46
47
48
48
49
50
50
51
52
52
53
54
54
54
54
55
56
57
57
58
58
59
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28180003041 | Nipple | |
| 2 | 4030000493 | O-ring | |
| 3 | 28180003011 | Steel pipe | |
| 4 | 28180003671 | Anchor plate | |
| 5 | 4015000072 | WASHER | |
| 6 | 28180003421 | Fixing plate | |
| 7 | 26370002201 | Clamp | |
| 8 | 28180003031 | Block | |
| 9 | 4011000718 | Screw | |
| 10 | 4120001246 | Plug | |
| 11 | 28180002991 | Steel pipe | |
| 12 | 26370002901 | Canvas cover | |
| 13 | 4190001834 | Cable tie | |
| 14 | 4041002377 | Clamp | |
| 15 | 4190000139 | Nipple | |
| 16 | 4120004568 | Nipple | |
| 17 | 4120007535 | Hose | |
| 18 | 28180004831 | Filter assembly | |
| 19 | 4041002384 | Clamp | |
| 20 | 4015000162 | Washer | |
| 21 | 4011000081 | BOLT | |
| 22 | 4190000020 | CLIP | |
| 23 | 28180003771 | Brake valve assembly | |
| 24 | 28180003781 | Oil returning block assembly | |
| 25 | 28180004631 | Plate | |
| 26 | 28180003101 | Cover plate | |
| 27 | 4011000105 | BOLT | |
| 28 | 4015000256 | WASHER | |
| 29 | 28180004811 | Gear pump | |
| 30 | 4120003897 | Nipple | |
| 31 | 4120007403 | Hose | |
| 32 | 4120007404 | Hose | |
| 33 | 4120007409 | Hose | |
| 34 | 4120007405 | Hose | |
| 35 | 4120003738 | Hose assembly | |
| 36 | 4120007414 | Hose | |
| 37 | 4120007412 | Hose | |
| 38 | 4120007410 | Hose | |
| 39 | 4015000197 | WASHER | |
| 40 | 28150004191 | Nipple | |
| 41 | 28120004661 | Nut | |
| 42 | 29220009221 | Block | |
| 43 | 4120004340 | Switch | |
| 44 | 4011000298 | BOLT | |
| 45 | 28180002951 | Steel pipe | |
| 46 | 28100004811 | Clamp | |
| 47 | 28180002971 | Steel pipe | |
| 48 | 4120003578 | Nipple | |
| 49 | 4190000141 | Nipple | |
| 50 | 4120007413 | Hose | |
| 51 | 4190000176 | Nipple | |
| 52 | 4120007411 | Hose | |
| 53 | 28180003131 | Accumulator | |
| 54 | 4120007406 | Hose | |
| 55 | 4120005110 | Bolt | |
| 56 | 28180004841 | Prefill valve assembly | |
| 57 | 4120007407 | Hose | |
| 58 | 4120007408 | Hose | |
| 59 | 28180003181 | Solenoid valve | |
| 60 | 4043002352 | Sealing strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
