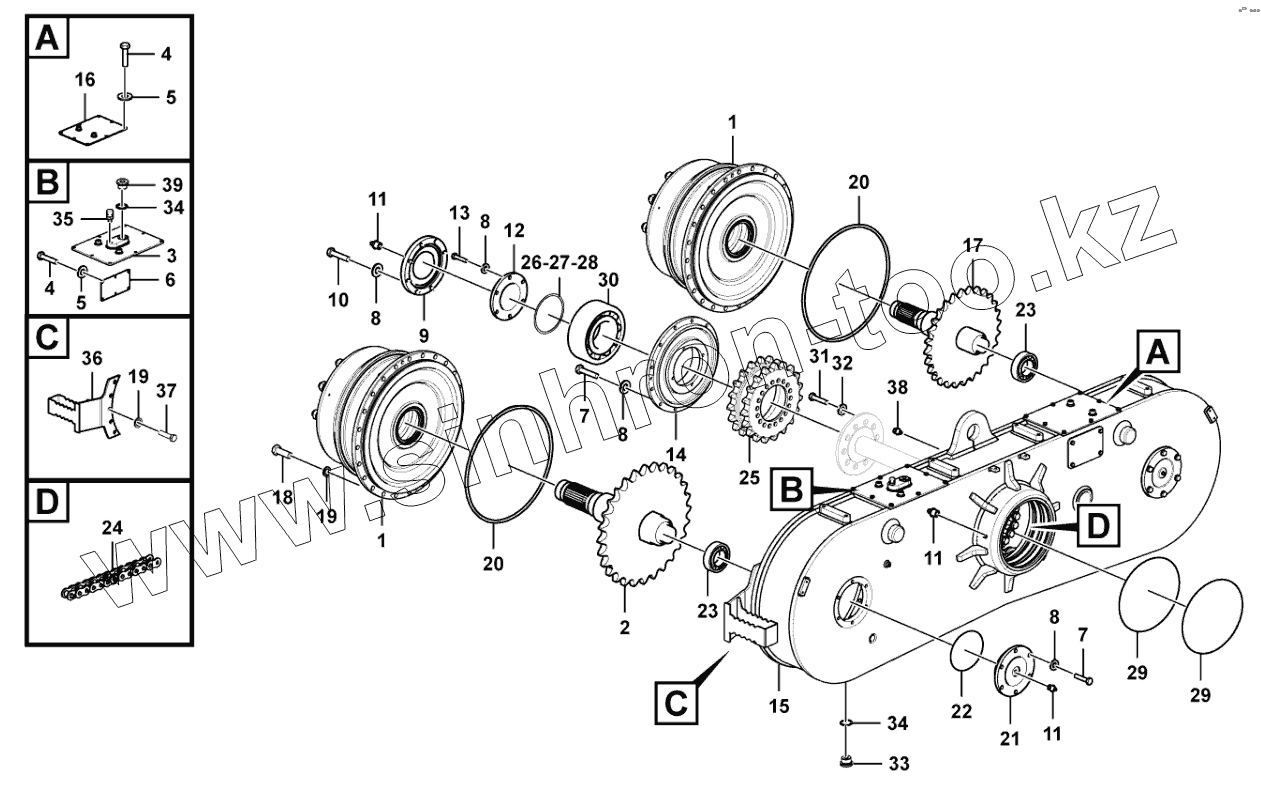

Каталог запасных частей к технике: SDLG G9138. Tandem drive
1
1
2
3
4
4
5
5
6
7
7
8
8
8
8
9
10
11
11
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
23
24
25
26
27
28
29
29
30
31
32
33
34
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28100006571 | Brake | |
| 2 | 28100007031 | Sprocket | |
| 3 | 28100006751 | Cover | |
| 4 | 4011001247 | Screw | |
| 5 | 4015000430 | Washer | |
| 6 | 28100006791 | Cover | |
| 7 | 4011001209 | Screw | |
| 8 | 29070015981 | Washer | |
| 9 | 28100006801 | Bearing cover | |
| 10 | 4014000110 | Screw | |
| 11 | 4030000065 | GREASE NIPPLE | |
| 12 | 28100006811 | Washer | |
| 13 | 4011001208 | Screw | |
| 14 | 28100006821 | Bearing seat | |
| 15 | 28100006831 | Tandem drive | |
| 16 | 28100007021 | Cover | |
| 17 | 28100006721 | Sprocket | |
| 18 | 4011001363 | Bolt | |
| 19 | 4015000027 | WASHER | |
| 20 | 4030000258 | O-ring | |
| 21 | 28100007051 | Bearing seat | |
| 22 | 4030001196 | Oring | |
| 23 | 4021000368 | Roller bearing | |
| 24 | 4110002797 | Roller chain | |
| 25 | 28100007061 | Sprocket | |
| 26 | 28100007071 | Shim | |
| 27 | 28100007081 | Shim | |
| 28 | 28100007091 | Shim | |
| 29 | 28100007901 | O-ring | |
| 30 | 4021000369 | Beraring | |
| 31 | 4011001198 | Screw | |
| 32 | 29070009511 | WASHER | |
| 33 | 28100007101 | Plug | |
| 34 | 4015000122 | WASHER | |
| 35 | 4110000818 | Nozzle | |
| 36 | 28100007121 | Foot step | |
| 37 | 4011001398 | Screw | |
| 38 | 4030000583 | Oil dipstick | |
| 39 | 28100007111 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
