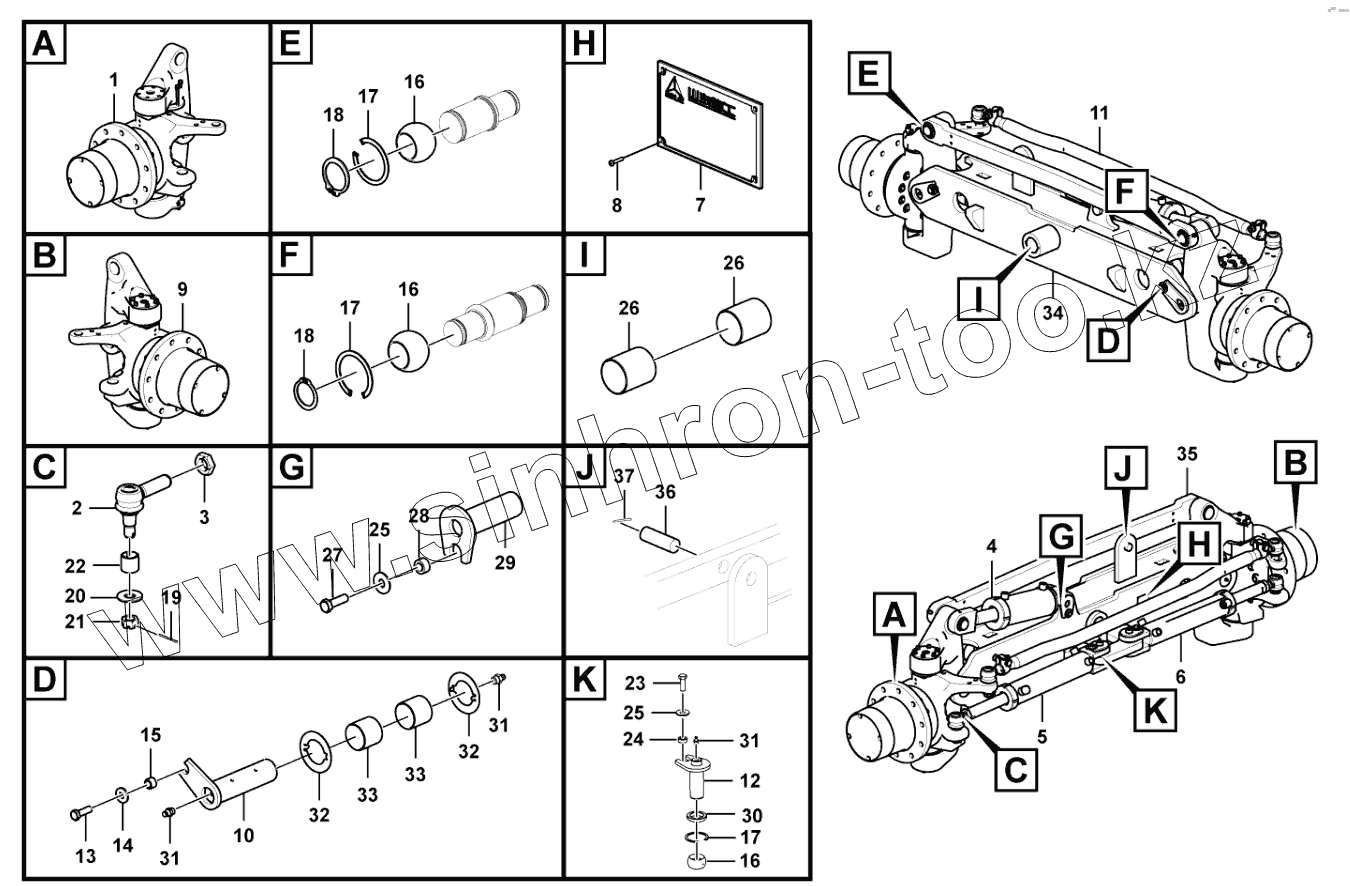

Каталог запасных частей к технике: SDLG G9138. Front axle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
17
17
18
18
19
20
21
22
23
24
25
25
26
26
27
28
29
30
31
31
31
32
32
33
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28080003181 | Left axle member | |
| 2 | 28080002541 | Ball joint | |
| 3 | 4013000319 | Nut | |
| 4 | 4120006951 | Cylinder | |
| 5 | 4120006952 | Cylinder | |
| 6 | 4120006953 | Cylinder | |
| 7 | 28080003141 | Name plate | |
| 8 | 4019000012 | Rivet | |
| 9 | 28080003191 | Right axle member | |
| 10 | 28080002181 | Steering knuckle | |
| 11 | 28080003161 | Tie rod | |
| 12 | 28080002381 | Steering knuckle | |
| 13 | 4011000510 | BOLT GB5782-M16x50EpZn-8.8 | |
| 14 | 4040000002 | WASHER | |
| 15 | 28080002421 | Spacer | |
| 16 | 4021000290 | Spherical plain bearing | |
| 17 | 4015000272 | RETAINER GB893.1-55-65Mn | |
| 18 | 4015000020 | RING SNAP | |
| 19 | 4016000057 | Split pin | |
| 20 | 4015000167 | WASHER GB97.1-24EpZn-300HV | |
| 21 | 28080002551 | Nut | |
| 22 | 28080002451 | Bushing | |
| 23 | 4011000089 | BOLT | |
| 24 | 28080002431 | Spacer | |
| 25 | 4015000186 | WASHER | |
| 26 | 28080002151 | Bearing | |
| 27 | 4011000091 | BOLT | |
| 28 | 28080002441 | Spacer | |
| 29 | 28080003131 | Steering knuckle | |
| 30 | 28080002461 | Spacer plate | |
| 31 | 4030000065 | GREASE NIPPLE | |
| 32 | 28080002261 | Thrust bearing | |
| 33 | 28080002141 | Bearing | |
| 34 | 28080003001 | Axle frame | |
| 35 | 28080003151 | Link rod | |
| 36 | 4016000317 | Pin | |
| 37 | 4016000040 | SPLINT PIN |
