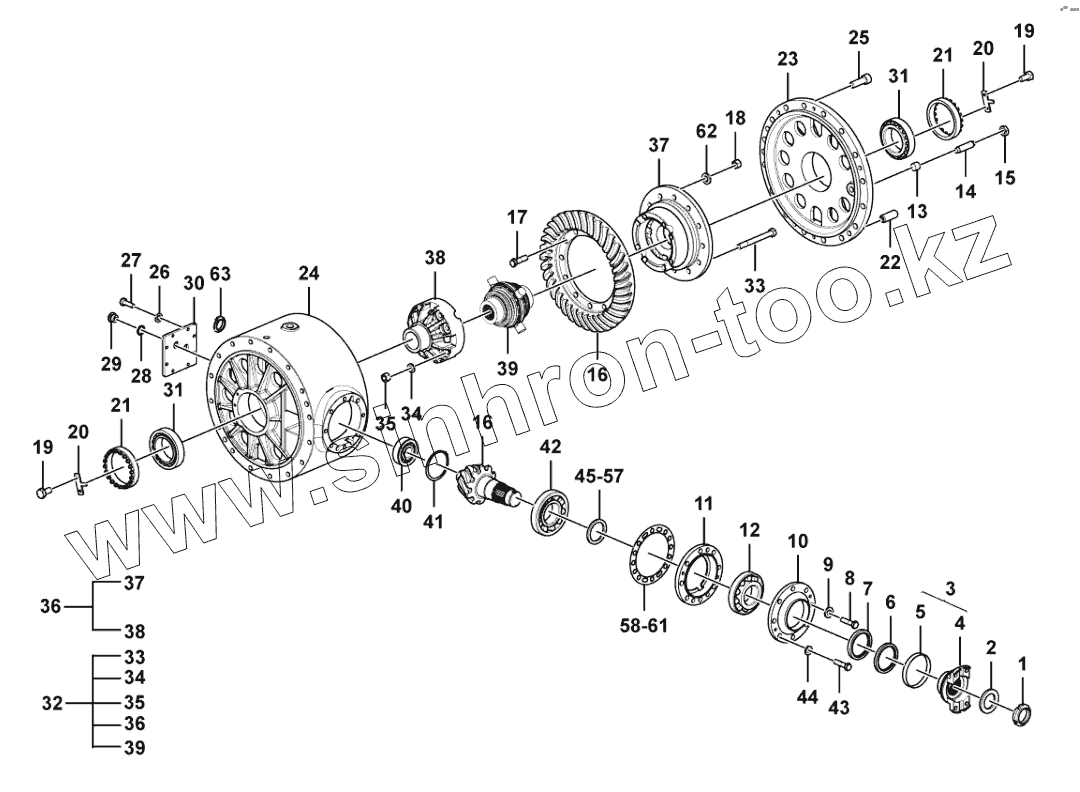

Каталог запасных частей к технике: SDLG G9138. Final drive
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
19
20
20
21
21
22
23
24
25
26
27
28
29
30
31
31
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28100007611 | Lock nut | |
| 2 | 28100007621 | Washer | |
| 3 | 28100007631 | Flange | |
| 4 | 28100007641 | Flange | |
| 5 | 28100007651 | Sleeve | |
| 6 | 4030001002 | Sealing ring | |
| 7 | 4030000789 | Sealing ring | |
| 8 | 4011001281 | Screw | |
| 9 | 29070015981 | Washer | |
| 10 | 28100007661 | Sealing cover | |
| 11 | 28100007671 | Bearing seat | |
| 12 | 4021000030 | BEARING | |
| 13 | 29070000661 | SLEEVE | |
| 14 | 28100007681 | Screw | |
| 15 | 4013000352 | Nut | |
| 16 | 28100009031 | Crown wheel | |
| 17 | 29070009501 | BOLT | |
| 18 | 4013000198 | NUT | |
| 19 | 4011000102 | BOLT | |
| 20 | 28100007721 | Lock washer | |
| 21 | 28100007741 | Nut | |
| 22 | 4016000370 | Spring pin | |
| 23 | 28100007751 | Centre housing | |
| 24 | 28100007761 | Centre housing | |
| 25 | 4014000110 | Screw | |
| 26 | 29050015471 | Washer | |
| 27 | 4011001397 | Screw | |
| 28 | 4015000122 | WASHER | |
| 29 | 28100007101 | Plug | |
| 30 | 28100007771 | Cover | |
| 31 | 4110002847 | Roller bearing | |
| 32 | 28100007781 | Differential | |
| 33 | 29070009491 | BOLT | |
| 34 | 29070009511 | WASHER | |
| 35 | 4013000198 | NUT | |
| 36 | 28100007791 | Differential housing | |
| 37 | 28100007801 | Differential housing | |
| 38 | 28100007811 | Differential housing | |
| 39 | 4110002805 | Differential | |
| 40 | 4110002848 | Roller bearing | |
| 41 | 4015000024 | RETAINNER RING | |
| 42 | 4021000032 | BEARING | |
| 43 | 4011001282 | Bolt | |
| 44 | 29090007961 | WASHER | |
| 45 | 29070022481 | Shim | |
| 46 | 29070022491 | Shim | |
| 47 | 29070022501 | Shim | |
| 48 | 29070022511 | Shim | |
| 49 | 29070022841 | Shim | |
| 50 | 29070022851 | Shim | |
| 51 | 29070022861 | Shim | |
| 52 | 29070022521 | Shim | |
| 53 | 29070022531 | Shim | |
| 54 | 29070022541 | Shim | |
| 55 | 29070022551 | Shim | |
| 56 | 28100007821 | Shim | |
| 57 | 28100007831 | Shim | |
| 58 | 28100007841 | Shim | |
| 59 | 28100007851 | Shim | |
| 60 | 28100007861 | Shim | |
| 61 | 28100007871 | Shim | |
| 62 | 29070009511 | WASHER | |
| 63 | 4030000583 | Oil dipstick |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
