Каталог запасных частей к технике: SDLG G9138. Draw bar
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
33
34
35
36
37
38
39
40
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

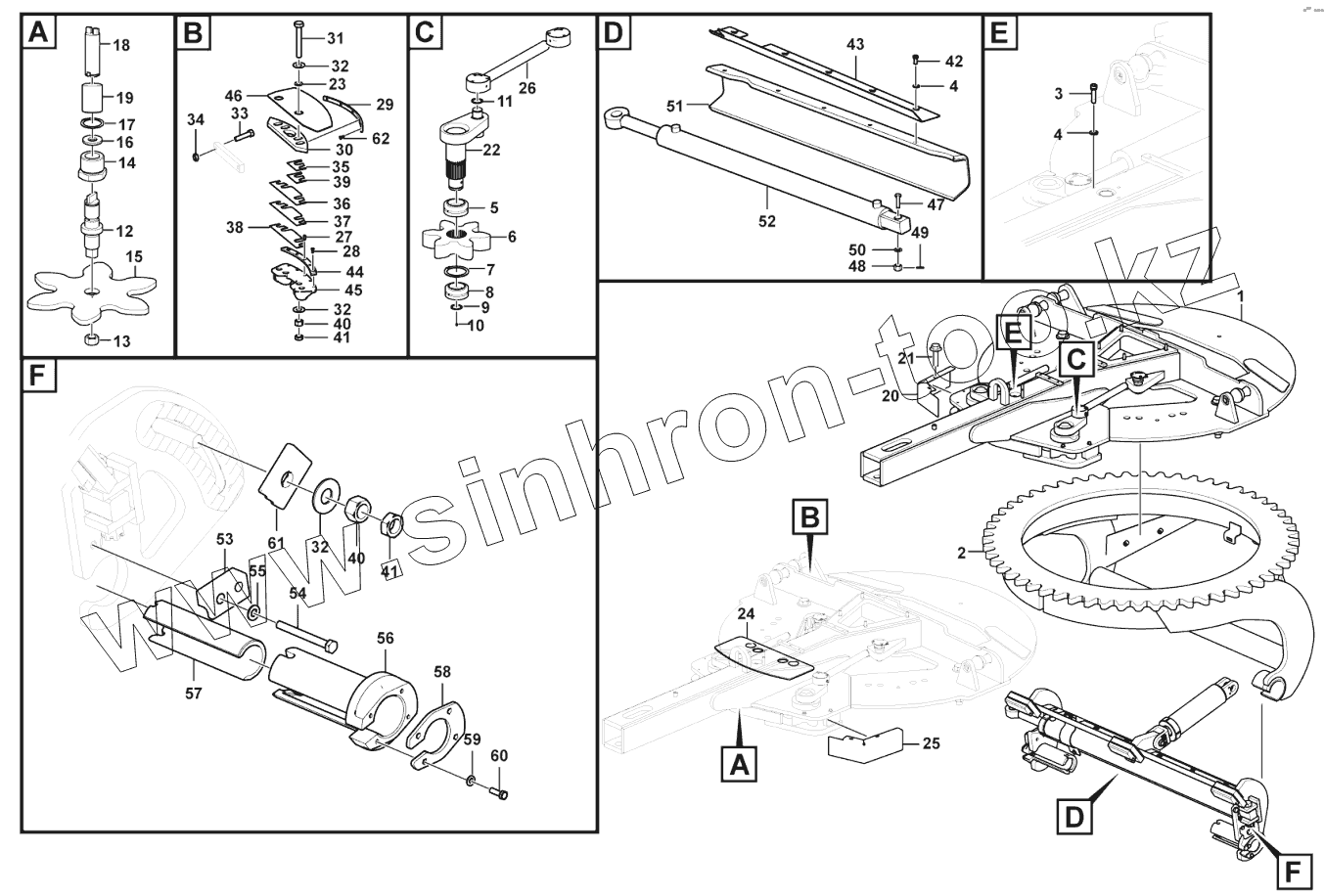

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28350003092 | Draw bar | |
| 2 | 28350005501 | Ring gear | |
| 3 | 4014000081 | Screw | |
| 4 | 4015000168 | WASHER | |
| 5 | 4021000043 | SPHERICAL PLAIN BEARING | |
| 6 | 28350003471 | Driving wheel | |
| 7 | 28350001021 | Washer | |
| 8 | 4021000050 | JOINT BEARING GB9163-GE50ES-2RS | |
| 9 | 4015000046 | SNAP RING | |
| 10 | 4030000065 | GREASE NIPPLE | |
| 11 | 4015000020 | RING SNAP | |
| 12 | 28350002131 | Shaft | |
| 13 | 4013000314 | Nut | |
| 14 | 28350002141 | Nut | |
| 15 | 28350003481 | Gear | |
| 16 | 28350002151 | Washer | |
| 17 | 4015000130 | RING SNAP | |
| 18 | 28350002111 | Shaft | |
| 19 | 28350002161 | Sleeve | |
| 20 | 28350003351 | Guard plate | |
| 21 | 4011000447 | BOLT | |
| 22 | 28350003681 | Swing pinion shaft | |
| 23 | 28350001751 | Washer | |
| 24 | 28350001661 | Wear part | |
| 25 | 28350003341 | Guard plate | |
| 26 | 4120008422 | Cylinder | |
| 27 | 28350002061 | Pin | |
| 28 | 28350002051 | Screw | |
| 29 | 28350005791 | Wear plate | |
| 30 | 28350003491 | Spacer plate | |
| 31 | 4011000750 | Bolt | |
| 32 | 4015000119 | WASHER | |
| 33 | 4011001061 | Screw | |
| 34 | 4013000310 | Nut | |
| 35 | 28350001731 | Shim | |
| 36 | 28350001721 | Shim | |
| 37 | 28350001711 | Shim | |
| 38 | 28350001701 | Shim | |
| 39 | 28350001741 | Shim | |
| 40 | 4013000308 | Nut | |
| 41 | 4013000309 | Nut | |
| 42 | 4011000197 | BOLT | |
| 43 | 28350003191 | Plate | |
| 44 | 28350003511 | Wear plate | |
| 45 | 28350002901 | Clamping plate | |
| 46 | 28350001651 | Wear part | |
| 47 | 28350001761 | Screw | |
| 48 | 4013000311 | Nut | |
| 49 | 4016000308 | Split pin | |
| 50 | 4015000167 | WASHER GB97.1-24EpZn-300HV | |
| 51 | 28350003151 | Tilting cradle | |
| 52 | 4120006956 | Cylinder | |
| 53 | 28350001501 | Clamping plate | |
| 54 | 4011001062 | Screw | |
| 55 | 4015000181 | WASHER | |
| 56 | 28350001211 | Guide bushing | |
| 57 | 28350002251 | Sleeve | |
| 58 | 28350001491 | Plate | |
| 59 | 4015000162 | Washer | |
| 60 | 4011000763 | Bolt | |
| 61 | 28350002751 | Plate | |
| 62 | 28350005781 | Screw |
