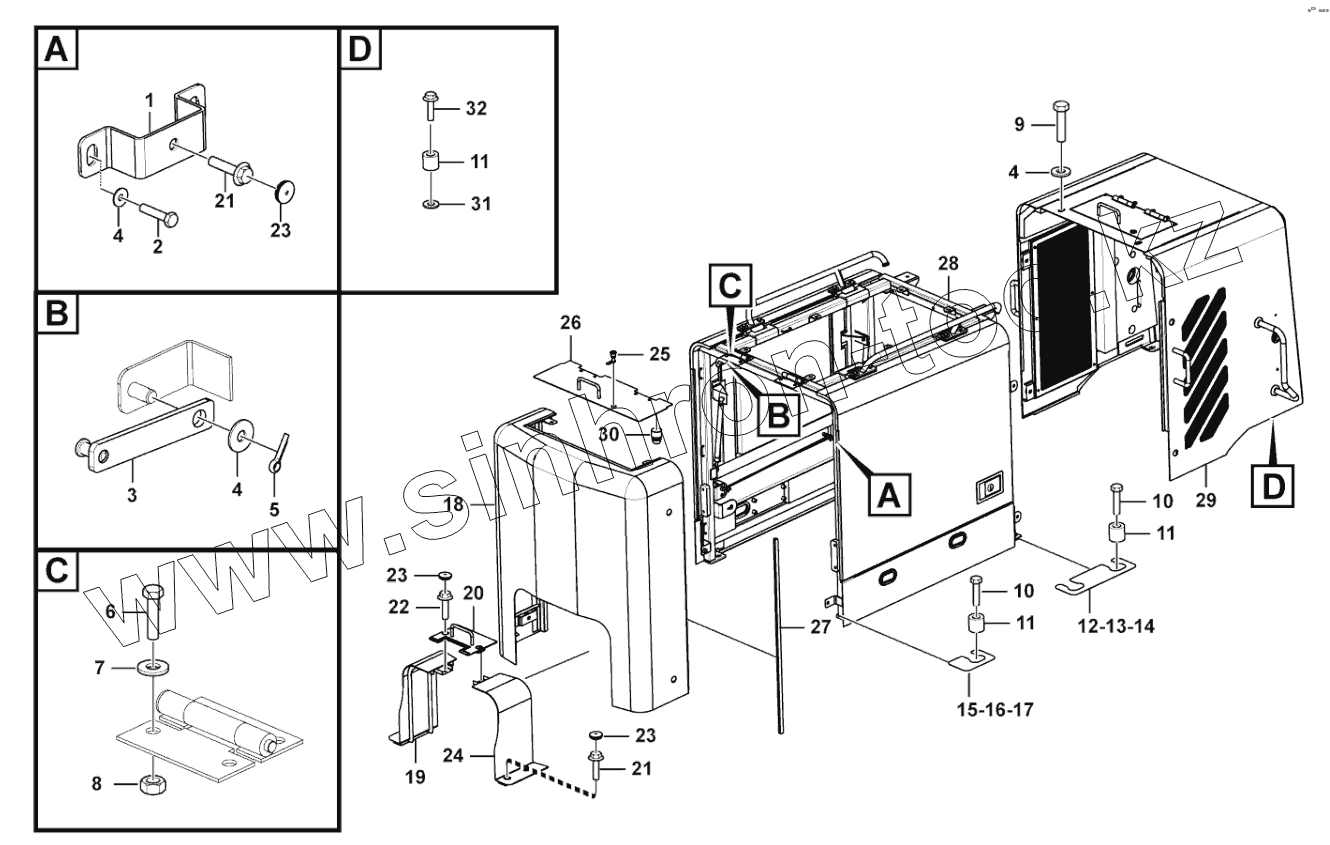

Каталог запасных частей к технике: SDLG G9138. Cover system
1
2
3
4
4
4
5
6
7
8
9
10
10
11
11
11
12
13
14
15
16
17
18
19
20
21
21
22
23
23
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28280010842 | Anchorage | |
| 2 | 4011000087 | BOLT | |
| 3 | 28280007901 | Guide member | |
| 4 | 4015000186 | WASHER | |
| 5 | 4016000035 | SPLIT PIN | |
| 6 | 4011000081 | BOLT | |
| 7 | 4015000162 | Washer | |
| 8 | 4013000007 | NUT | |
| 9 | 4011000197 | BOLT | |
| 10 | 4011000150 | BOLT | |
| 11 | 4043002121 | Attaching sleeve | |
| 12 | 28280010291 | Shim | |
| 13 | 28280010281 | Shim | |
| 14 | 28280010251 | Shim | |
| 15 | 28280010241 | Shim | |
| 16 | 28280010261 | Shim | |
| 17 | 28280010271 | Shim | |
| 18 | 28280010802 | Cover plate | |
| 19 | 28280010821 | Plate | |
| 20 | 28280011471 | Plate | |
| 21 | 4011001375 | Bolt | |
| 22 | 4011001299 | Screw | |
| 23 | 29330000201 | RUBBER COVER | |
| 24 | 28280010811 | Plate | |
| 25 | 4190000916 | LOCK | |
| 26 | 28280007801 | Cover plate | |
| 27 | 4043000849 | Sealing strip | |
| 28 | 28280010782 | Cover | |
| 29 | 28280010791 | Cover | |
| 30 | 29330022651 | EMPTY | |
| 31 | 28280012231 | Shim | |
| 32 | 4011000151 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
