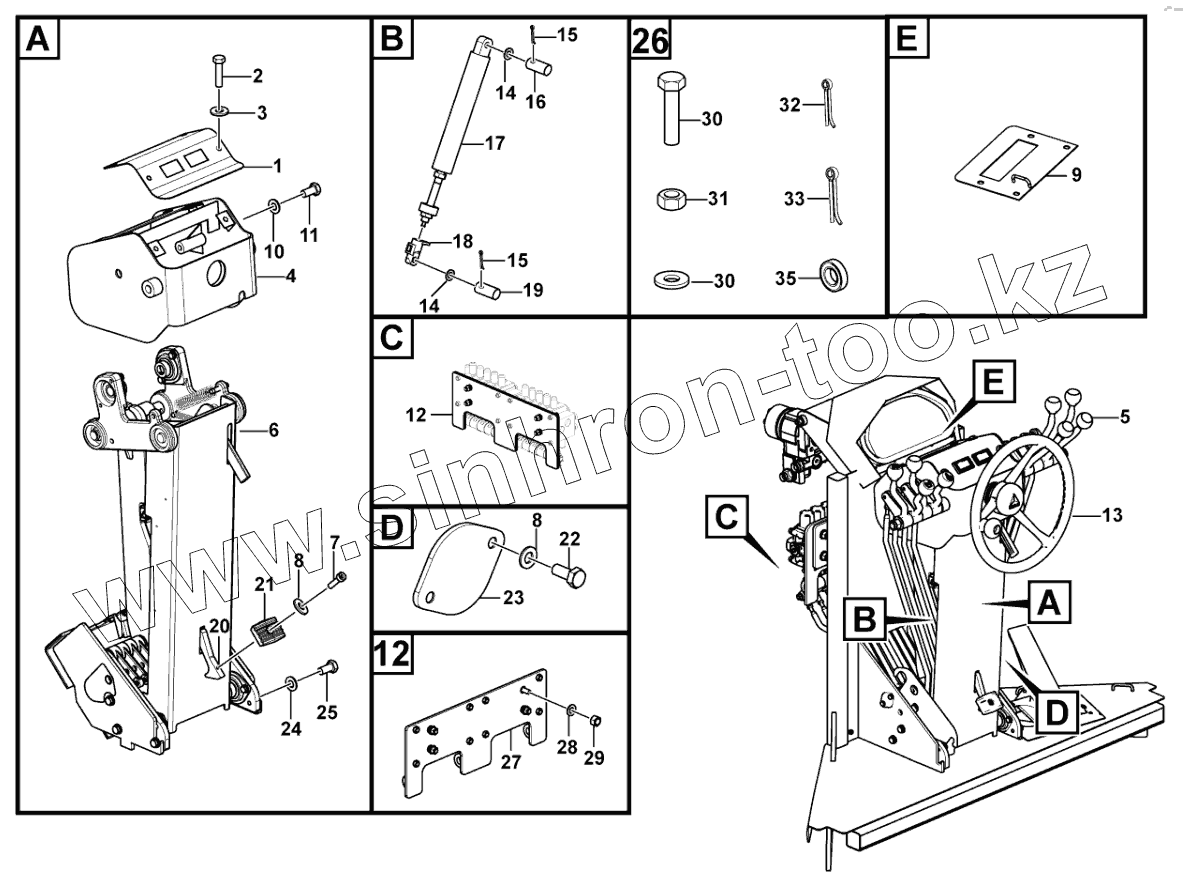

Каталог запасных частей к технике: SDLG G9138. Control lever assembly
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
27
28
29
30
30
31
32
33
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 28270011681 | Hood | |
| 2 | 4011000102 | BOLT | |
| 3 | 4015000256 | WASHER | |
| 4 | 28270011431 | Support rack | |
| 5 | 28270009621 | Control lever | |
| 6 | 28270011451 | Support | |
| 7 | 4014000058 | SCREW | |
| 8 | 4015000207 | WASHER | |
| 9 | 28270011461 | Cover frame | |
| 10 | 4011000289 | BOLT GB5783-M6x16EpZn-8.8 | |
| 11 | 4015000198 | Washer | |
| 12 | 28270009631 | Bracket | |
| 13 | 28270009781 | Steering system | |
| 14 | 4015000072 | WASHER | |
| 15 | 4016000100 | SPLINT PIN | |
| 16 | 28270008101 | Pin | |
| 17 | 28270007421 | Gas spring | |
| 18 | 4190003065 | Rod end | |
| 19 | 28270008111 | Pin | |
| 20 | 4190003066 | Attaching plate | |
| 21 | 28270006591 | Pedal | |
| 22 | 4011000423 | Screw | |
| 23 | 28270007871 | Cover | |
| 24 | 4015000197 | WASHER | |
| 25 | 4011000081 | BOLT | |
| 26 | 4190003667 | Small parts kit | |
| 27 | 4190003657 | Bracket | |
| 28 | 4015000168 | WASHER | |
| 29 | 4013000011 | NUT | |
| 30 | 4011000724 | BOLT GB5783-M8x25-8.8 | |
| 31 | 4013000210 | Nut | |
| 32 | 4016000107 | Split pin | |
| 33 | 4016000114 | PIN | |
| 34 | 4015000110 | WASHER | |
| 35 | 4021000298 | Joint bearing gb9161-si8e |
