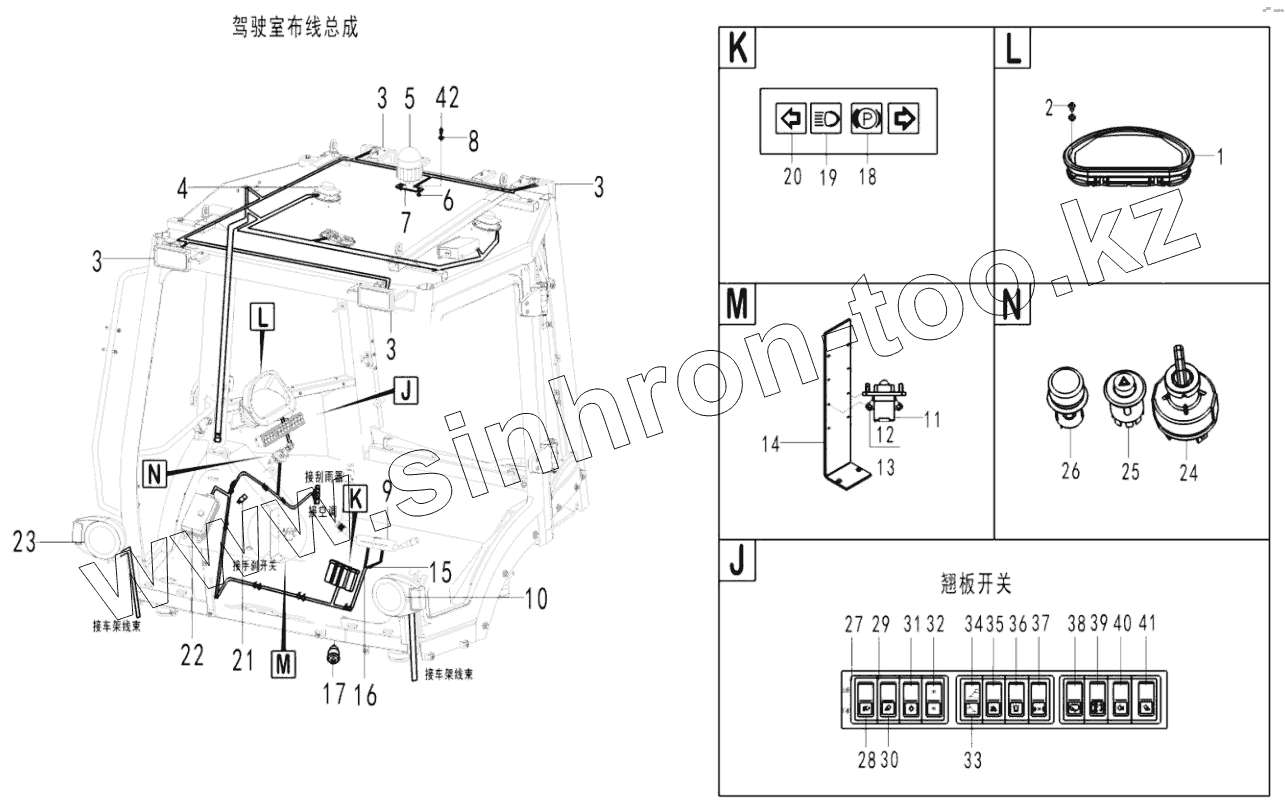

Каталог запасных частей к технике: SDLG B877. Electric assembly-cab
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 26370006932 | Display panel | |
| 2 | 4014000088 | SCREW | |
| 3 | 4130001937 | Lamp | |
| 4 | 29370015861 | Radio | |
| 5 | 4130000561 | Rotating beacon | |
| 6 | 4013000033 | NUT | |
| 7 | 29370012801 | Bracket | |
| 8 | 4015000072 | WASHER | |
| 9 | 4130001910 | Light switch | |
| 10 | 4130002127 | Lamp | |
| 11 | 4130000961 | Relay | |
| 12 | 4014000021 | SCREW GB818-M4x12EpZn-4.8 | |
| 13 | 4015000135 | WASHER | |
| 14 | 26370007021 | Bracket | |
| 15 | 4014000061 | SCREW | |
| 16 | 26370006362 | Cable harness | |
| 17 | 4120004340 | Switch | |
| 18 | 4130001624 | Indicator lamp | |
| 19 | 4130001619 | Indicator lamp | |
| 20 | 4130000601 | STEERING INDICATED LAMP | |
| 21 | 4130000870 | Relay | |
| 22 | 4130002114 | Control box | |
| 23 | 4130002128 | Lamp | |
| 24 | 3214526158 | Starter switch | |
| 25 | 4130000426 | ALARM BUTTON SWITCH | |
| 26 | 4130000749 | Cigarette lighter | |
| 27 | 4130000498 | SIDE FRAME | |
| 28 | 4130001941 | Rocker switch | |
| 29 | 4130000497 | Switch panel | |
| 30 | 4130000490 | Rocker switch | |
| 31 | 4130000489 | BACK LAMP BUTTON-SWlTCH JK931-01BGD | |
| 32 | 4130001939 | Rocker switch | |
| 33 | 4130001942 | Indicator lamp | |
| 34 | 4130001945 | Indicator lamp | |
| 35 | 4130001052 | Rocker switch | |
| 36 | 4130000593 | Rocker switch | |
| 37 | 4130002076 | Rocker switch | |
| 38 | 4130000775 | REAR WIPER BUTTON SWITCH JK931-01HGYQ | |
| 39 | 4130001940 | Rocker switch | |
| 40 | 4130000917 | SWlTCH,REAR HEADLlGHT K931-02HDD | |
| 41 | 4130000491 | Rocker switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
