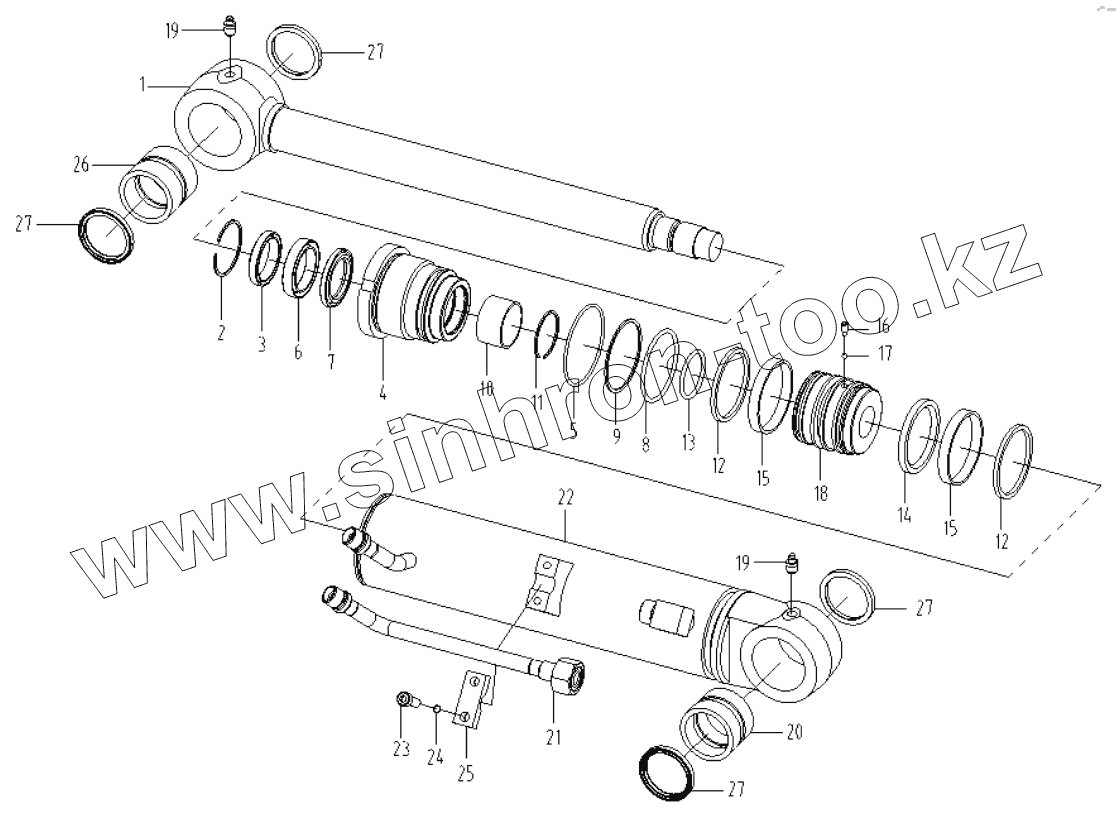

Каталог запасных частей к технике: SDLG B877. Cylinder (3713CH)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
17
18
19
19
20
21
22
23
24
25
26
27
27
27
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120005017001 | Piston rod | |
| 2 | 4120005017002 | Retaining ring | |
| 3 | 4120005017003 | Sealing ring kit | |
| 4 | 4120005017004 | Piston rod head | |
| 5 | 4120005017003 | Sealing ring kit | |
| 6 | 4120005017003 | Sealing ring kit | |
| 7 | 4120005017003 | Sealing ring kit | |
| 8 | 4120005017003 | Sealing ring kit | |
| 9 | 4120005017003 | Sealing ring kit | |
| 10 | 4120005017003 | Sealing ring kit | |
| 11 | 4120005017005 | Retaining ring | |
| 12 | 4120005017003 | Sealing ring kit | |
| 13 | 4120005017003 | Sealing ring kit | |
| 14 | 4120005017003 | Sealing ring kit | |
| 15 | 4120005017003 | Sealing ring kit | |
| 16 | 4014000411 | Screw | |
| 17 | 4090000063 | Ball | |
| 18 | 4120005017006 | Cylinder piston | |
| 19 | 4030000065 | GREASE NIPPLE | |
| 20 | 4120005017007 | Bushing | |
| 21 | 4120005017008 | Pipe | |
| 22 | 4120005017009 | Cylinder tube | |
| 23 | 4014000171 | SCREW GB70.1-M8x25-8.8 | |
| 24 | 4015000036 | WASHER | |
| 25 | 4120005017010 | Retainer | |
| 26 | 4120005017011 | Bushing | |
| 27 | 4120005017012 | Sealing ring |
