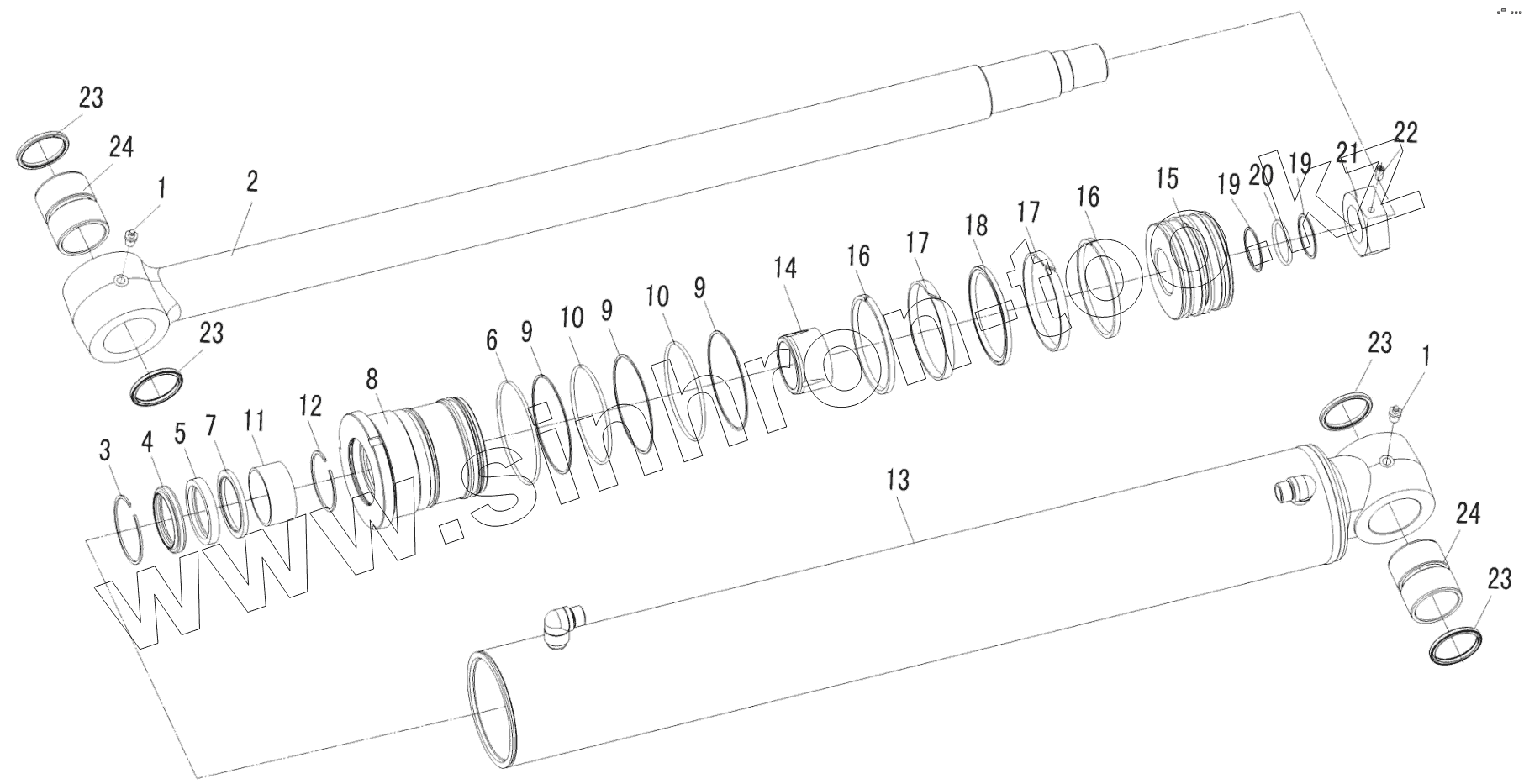

Каталог запасных частей к технике: SDLG B877. Cylinder (3713CH)
1
1
2
3
4
5
6
7
8
9
9
9
10
10
11
12
13
14
15
16
16
17
17
18
19
19
20
21
22
23
23
23
23
24
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4030000065 | GREASE NIPPLE | |
| 2 | 4120005024002 | Piston rod | |
| 3 | 4120005022003 | Retaining ring | |
| 4 | 4120005024001 | Sealing ring kit | |
| 5 | 4120005024001 | Sealing ring kit | |
| 6 | 4120005024001 | Sealing ring kit | |
| 7 | 4120005024001 | Sealing ring kit | |
| 8 | 4120005024003 | Piston rod head | |
| 9 | 4120005024001 | Sealing ring kit | |
| 10 | 4120005024001 | Sealing ring kit | |
| 11 | 4120005024001 | Sealing ring kit | |
| 12 | 4120005022004 | Retaining ring | |
| 13 | 4120005024004 | Cylinder tube | |
| 14 | 4120005024005 | Rubber buffer | |
| 15 | 4120005024006 | Cylinder piston | |
| 16 | 4120005024001 | Sealing ring kit | |
| 17 | 4120005024001 | Sealing ring kit | |
| 18 | 4120005024001 | Sealing ring kit | |
| 19 | 4120005024001 | Sealing ring kit | |
| 20 | 4120005024001 | Sealing ring kit | |
| 21 | 4120005023006 | Nut | |
| 22 | 4120005023009 | Screw | |
| 23 | 4120005024001 | Sealing ring kit | |
| 24 | 4120005022016 | Bushing |
