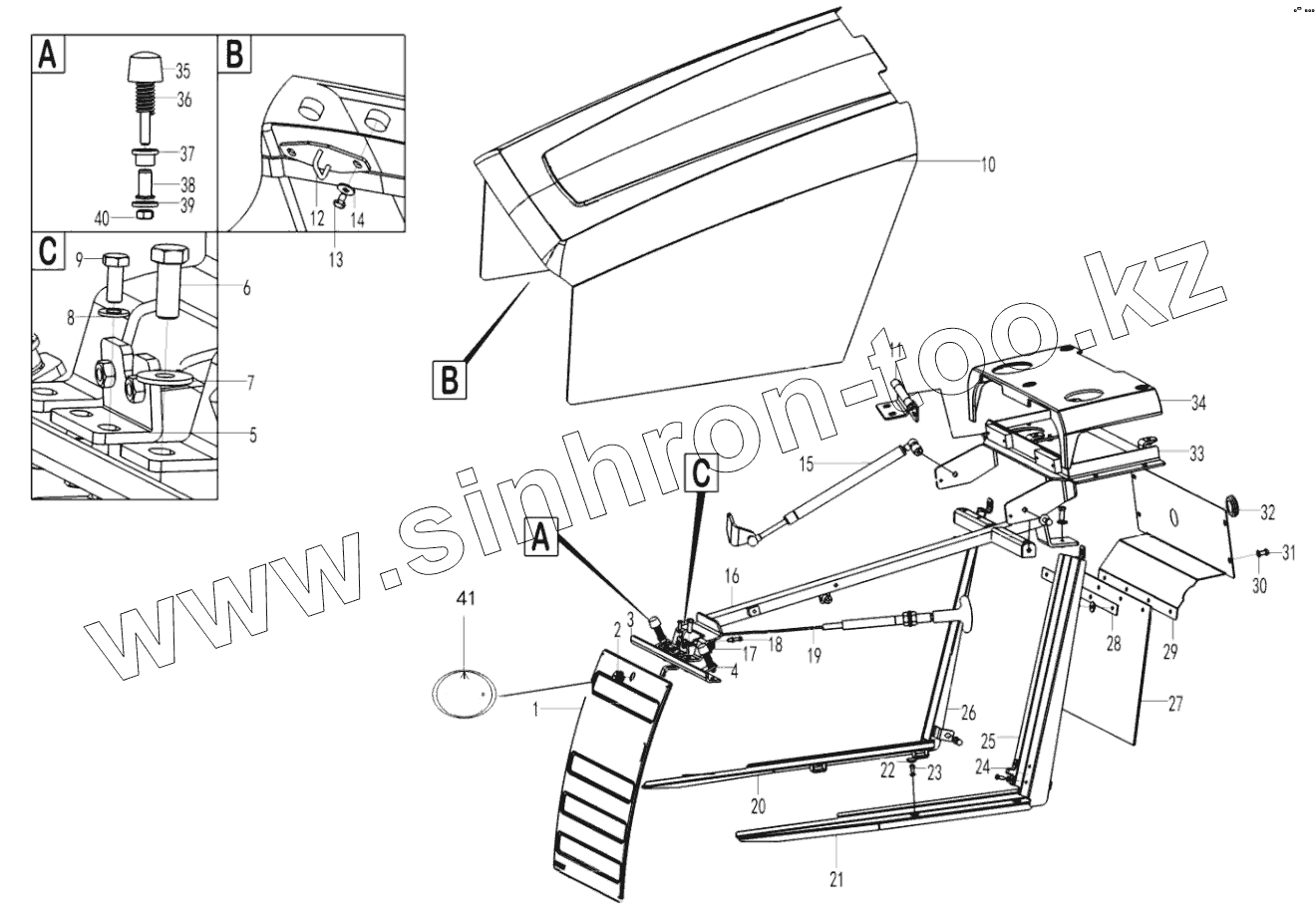

Каталог запасных частей к технике: SDLG B877. Cover assy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 26330020091 | Grille | |
| 2 | 14510165 | Key_assy | |
| 3 | 26330020171 | Bracket | |
| 4 | 26330019131 | Rubber block | |
| 5 | 26330019121 | Attaching plate | |
| 6 | 4011000084 | BOLT | |
| 7 | 4015000197 | WASHER | |
| 8 | 4015000072 | WASHER | |
| 9 | 4011000105 | BOLT | |
| 10 | 26330020131 | Bonnet | |
| 11 | 26330018981 | Hinge | |
| 12 | 26330019551 | Mounting plate | |
| 13 | 4011000934 | Screw | |
| 14 | 4015000256 | WASHER | |
| 15 | 26330019081 | Air spring | |
| 16 | 26330019021 | Attaching frame | |
| 17 | 4190002902 | Hood lock | |
| 18 | 4011000195 | BOLT | |
| 19 | 26330019201 | Control cable | |
| 20 | 26330018721 | Protecting plate | |
| 21 | 26330018711 | Protecting plate | |
| 22 | 29320008221 | RUBBER COVER | |
| 23 | 4014000033 | BOLT GB70.1-M8x16EpZn-8.8 | |
| 24 | 26330020551 | Block | |
| 25 | 26330018681 | Protecting plate | |
| 26 | 26330018671 | Mounting plate | |
| 27 | 26330019141 | Rubber plate | |
| 28 | 26330019151 | Plate | |
| 29 | 26330020521 | Plate | |
| 30 | 4015000162 | Washer | |
| 31 | 4011000081 | BOLT | |
| 32 | 26240004801 | Rubber sleeve | |
| 33 | 26330019001 | Attaching frame | |
| 34 | 26330018751 | Bonnet | |
| 35 | 26330019211 | Rubber buffer | |
| 36 | 26330019171 | Spring | |
| 37 | 26330019191 | Sleeve | |
| 38 | 26330019161 | Sleeve | |
| 39 | 26330019181 | Plain washer | |
| 40 | 4013000210 | Nut | |
| 41 | 26330021541 | Decal |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
