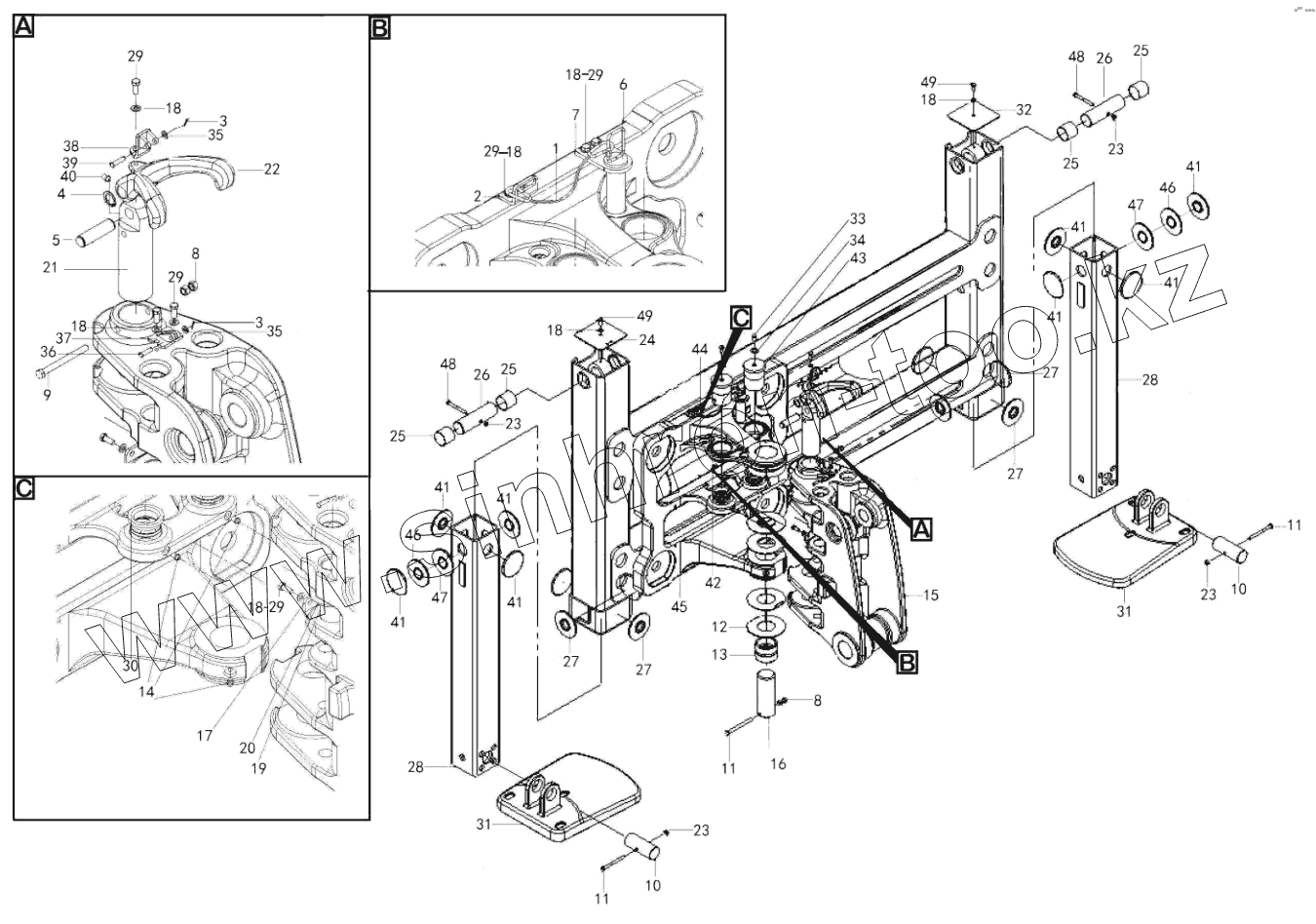

Каталог запасных частей к технике: SDLG B877. Bracket
1
2
3
3
4
5
6
7
8
8
9
10
10
11
11
11
12
13
14
15
16
17
18
18
18
18
18
18
18
19
20
21
22
23
23
23
23
24
25
25
25
25
26
26
27
27
27
27
28
28
29
29
29
29
29
30
31
32
33
34
35
35
36
37
38
39
40
41
41
41
41
41
41
41
41
41
42
43
44
45
46
46
47
47
48
48
49
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 26270002921 | String | |
| 2 | 26270002911 | Plate | |
| 3 | 4016000119 | PIN | |
| 4 | 4015000130 | RING SNAP | |
| 5 | 26270002871 | Pin | |
| 6 | 26270002891 | Pin | |
| 7 | 26270002882 | Plate | |
| 8 | 4013000011 | NUT | |
| 9 | 4011000263 | BOLT GB5782-M12x130EpZn-8.8 | |
| 10 | 26270002831 | Pin | |
| 11 | 4011000445 | Bolt | |
| 12 | 26270002641 | Copper washer | |
| 13 | 4043000637 | Bushing | |
| 14 | 4030000065 | GREASE NIPPLE | |
| 15 | 26270002611 | Frame | |
| 16 | 26270002681 | Pin | |
| 17 | 26270002701 | Plate | |
| 18 | 4015000162 | Washer | |
| 19 | 26270002691 | Pin | |
| 20 | 26270002711 | Washer | |
| 21 | 26270002671 | Pin | |
| 22 | 26270002621 | Hanger | |
| 23 | 4013000189 | Lock nut | |
| 24 | 26270002931 | Plate | |
| 25 | 26270002851 | Tube | |
| 26 | 26270002841 | Pin | |
| 27 | 26270002781 | Gasket | |
| 28 | 26270002801 | Support | |
| 29 | 4011000081 | BOLT | |
| 30 | 26270002651 | Bushing | |
| 31 | 26270002791 | Plate | |
| 32 | 26270002951 | Plate | |
| 33 | 4011000485 | BOLT GB16674-M16x20EpZn-8.8 | |
| 34 | 4015000181 | WASHER | |
| 35 | 4015000072 | WASHER | |
| 36 | 4016000144 | PIN B8X30 | |
| 37 | 26270003031 | Bracket | |
| 38 | 26270003041 | Bracket | |
| 39 | 4016000166 | Pin | |
| 40 | 4030000535 | OIL CUP | |
| 41 | 26270003061 | Shim | |
| 42 | 26270003091 | Bushing | |
| 43 | 26270003111 | Bushing | |
| 44 | 4015000197 | WASHER | |
| 45 | 26270003071 | Attaching frame | |
| 46 | 4043000376 | Shim | |
| 47 | 4043000385 | Shim | |
| 48 | 4011000528 | BOLT GB16674-M10x100EpZn-8.8 | |
| 49 | 4011000080 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
