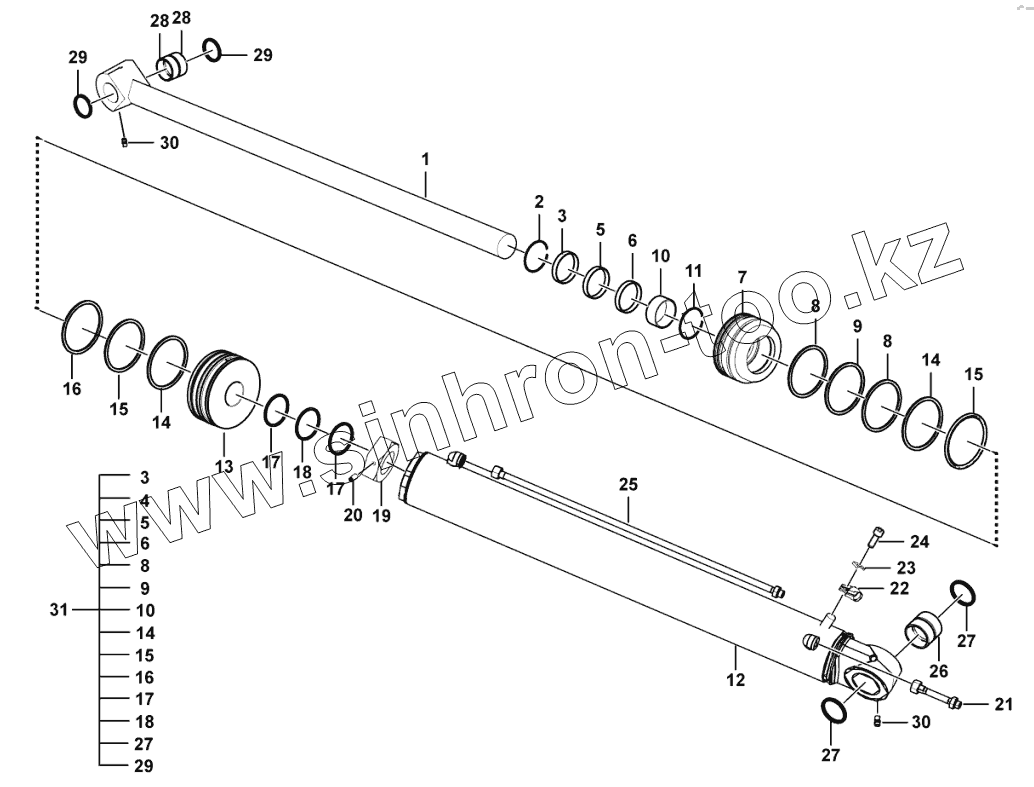

Каталог запасных частей к технике: SDLG B877. Tilt cylinder
1
2
3
3
4
5
5
6
6
7
8
8
8
9
9
10
10
11
12
13
14
14
14
15
15
15
16
16
17
17
17
18
18
19
20
21
22
23
24
25
26
27
27
27
28
28
29
29
29
30
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120005494003 | Piston rod | |
| 2 | 4120005494007 | Retaining ring | |
| 3 | 4120005797005 | Sealing ring | |
| 4 | 4120006118013 | Sealing ring | |
| 5 | 4120005022020 | Sealing ring | |
| 6 | 4120005026015 | Sealing ring | |
| 7 | 4120005494004 | Cover | |
| 8 | 4120005797006 | O-ring | |
| 9 | 4120005797007 | O-ring | |
| 10 | 4120005494005 | Bushing | |
| 11 | 4120005494006 | Retaining ring | |
| 12 | 4120005797001 | Cylinder tube | |
| 13 | 4120005494008 | Piston | |
| 14 | 4120005797008 | Sealing ring | |
| 15 | 4120005797009 | Sealing ring | |
| 16 | 4120005797010 | Sealing ring | |
| 17 | 4120005024017 | O-ring | |
| 18 | 4120005024018 | O-ring | |
| 19 | 4120005494009 | Nut | |
| 20 | 4120005494010 | Screw | |
| 21 | 4120005494015 | Oil pipe | |
| 22 | 4120005494014 | Clamp | |
| 23 | 4120005803010 | Block | |
| 24 | 4120005803011 | Screw | |
| 25 | 4120005494013 | Oil pipe | |
| 26 | 4120005020012 | Bushing | |
| 27 | 4120005022037 | Sealing ring | |
| 28 | 4120005494012 | Bushing | |
| 29 | 4120005797011 | Sealing ring | |
| 30 | 4120005801013 | Grease cup | |
| 31 | 4120005797003 | Sealing kit |
