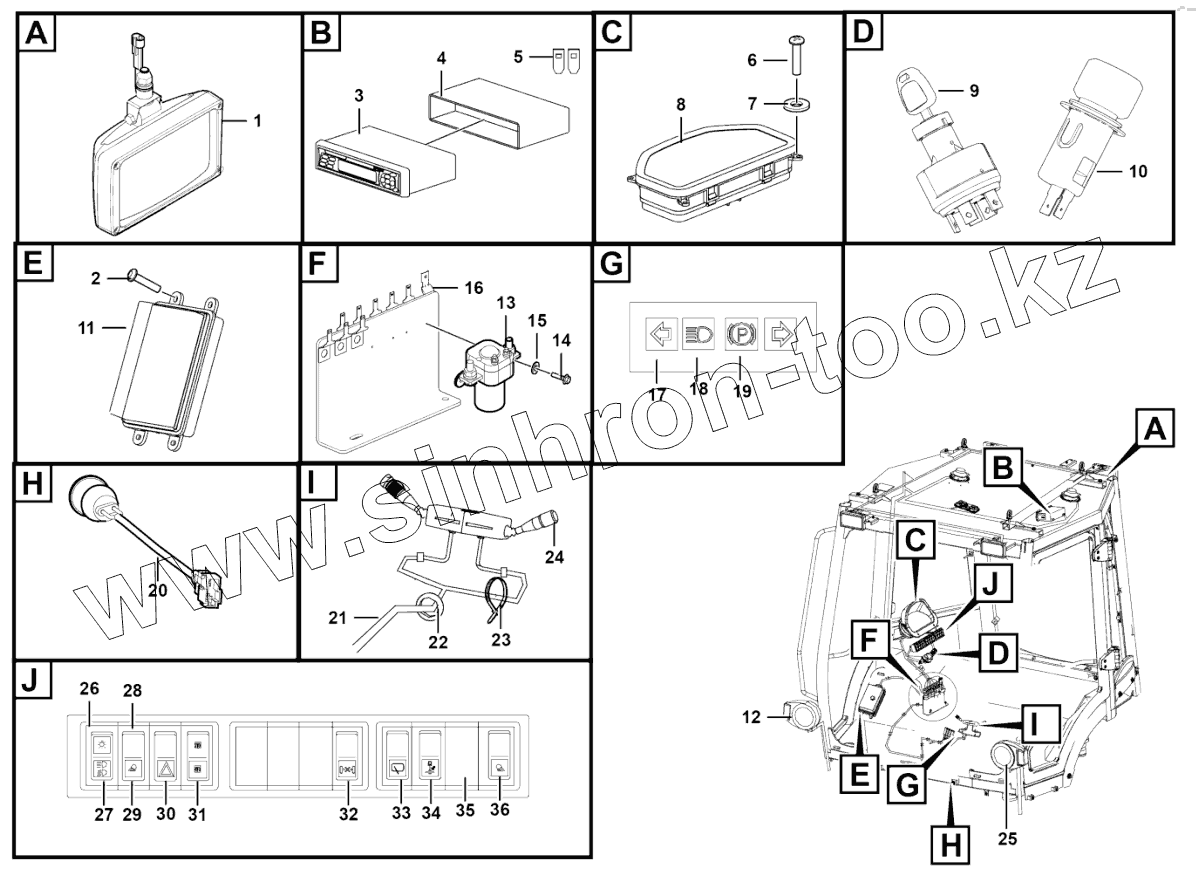

Каталог запасных частей к технике: SDLG B877. Electric equipment
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4130001937 | Lamp | |
| 2 | 4014000040 | SCREW | |
| 3 | 4130000903 | Radio | |
| 4 | 4130000905 | Bracket | |
| 5 | 4130000906 | Key | |
| 6 | 4014000088 | SCREW | |
| 7 | 4015000110 | WASHER | |
| 8 | 26370006932 | Display panel | |
| 9 | 11217633 | Starter switch | |
| 10 | 4130000749 | Cigarette lighter | |
| 11 | 4130002644 | Fuse and relay unit | |
| 12 | 4130002128 | Lamp | |
| 13 | 4130000961 | Relay | |
| 14 | 4014000021 | SCREW GB818-M4x12EpZn-4.8 | |
| 15 | 4015000135 | WASHER | |
| 16 | 26370008811 | Bracket | |
| 17 | 4130002187 | Indicator lamp | |
| 18 | 4130002189 | Indicator lamp | |
| 19 | 4130002188 | Indicator lamp | |
| 20 | 4120004340 | Switch | |
| 21 | 26370006365 | Wiring harness | |
| 22 | 29330031081 | Rubber sleeve | |
| 23 | 4190001832 | Cable tie | |
| 24 | 4130001910 | Light switch | |
| 25 | 4130002127 | Lamp | |
| 26 | 4130000498 | SIDE FRAME | |
| 27 | 4130002526 | Rocker switch | |
| 28 | 4130000497 | Switch panel | |
| 29 | 4130000490 | Rocker switch | |
| 30 | 4130000492 | Rocker switch | |
| 31 | 4130001939 | Rocker switch | |
| 32 | 4130002076 | Rocker switch | |
| 33 | 4130000775 | REAR WIPER BUTTON SWITCH JK931-01HGYQ | |
| 34 | 4130001940 | Rocker switch | |
| 35 | 4130000496 | CAP | |
| 36 | 4130000491 | Rocker switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
