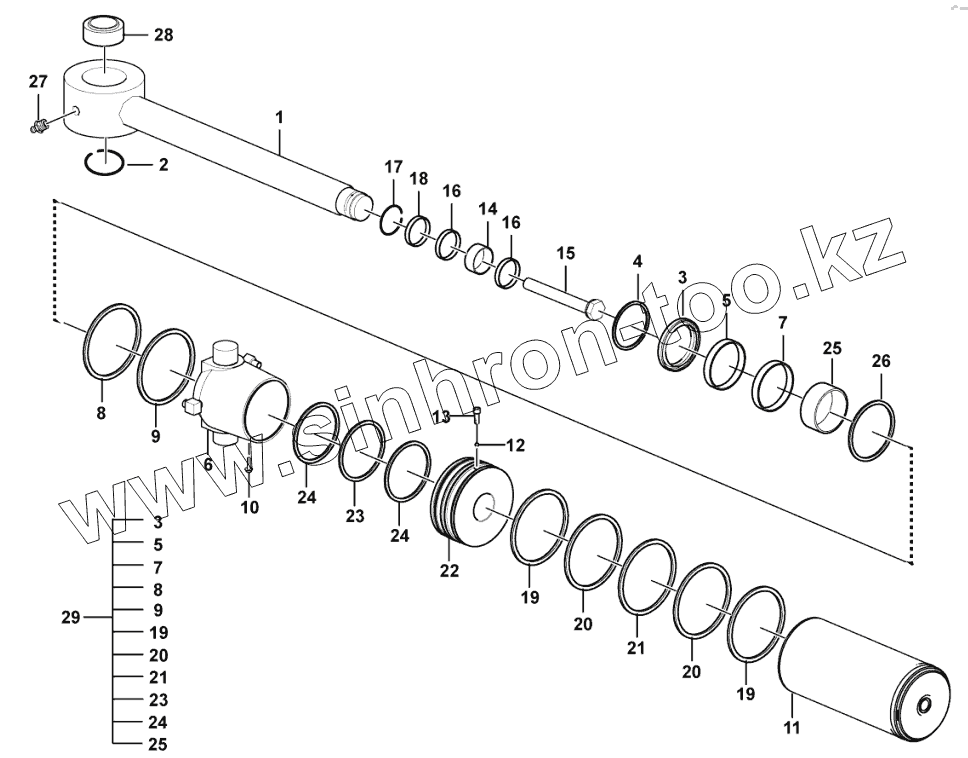

Каталог запасных частей к технике: SDLG B877. Cylinder
1
2
3
3
4
5
5
6
7
7
8
8
9
9
10
11
12
13
14
15
16
16
17
18
19
19
19
20
20
20
21
21
22
23
23
24
24
24
25
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120005026011 | Piston rod | |
| 2 | 4120006441005 | Retaining ring | |
| 3 | 4120005026012 | Sealing ring | |
| 4 | 4120005494007 | Retaining ring | |
| 5 | 4120005026013 | Sealing ring | |
| 6 | 4120005026014 | Cover | |
| 7 | 4120005026015 | Sealing ring | |
| 8 | 4120005026016 | O-ring | |
| 9 | 4120005026017 | O-ring | |
| 10 | 4120005026018 | Screw | |
| 11 | 4120005026019 | Cylinder tube | |
| 12 | 4120006316009 | Ball | |
| 13 | 4120005026020 | Screw | |
| 14 | 4120005026021 | Protecting casing | |
| 15 | 4120005026022 | Screw | |
| 16 | 4120005026023 | Sealing ring | |
| 17 | 4120005026024 | Retaining ring | |
| 18 | 4120005026025 | Sealing ring | |
| 19 | 4120005026026 | Sealing ring | |
| 20 | 4120005026027 | Sealing ring | |
| 21 | 4120005026028 | Sealing ring | |
| 22 | 4120005026029 | Piston | |
| 23 | 4120005026030 | O-ring | |
| 24 | 4120005026031 | O-ring | |
| 25 | 4120005494005 | Bushing | |
| 26 | 4120005026032 | Retaining ring | |
| 27 | 4120005801013 | Grease cup | |
| 28 | 4120003878021 | Spherical plain bearing | |
| 29 | 4120005026033 | Sealing kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
