Каталог запасных частей к технике: SANY SYM5190THBDZ 30. A810201202157 Box, operation, small
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
SYM5190THBDZ 30 Truck-mounted concrete pump
13233665 Boom GP
13233665 Boom GP
13234430 CylinderпјЊboom 1
13229819 CylinderпјЊboom 2
13229164 CylinderпјЊboom 3
13225469 CylinderпјЊboom 4
13472469 Revolving tower GP
13472469 Revolving tower GP
13227405 Turntable AS
13229662 Slewing mechanism
60022996 Motor, cycloid
A990303070000 Reducer GP
A810103000410 Reducer AS
13230447 Covering part
13229075 Outrigger, front, right
12620653 Cylinder, oil, outrigger
11141675 Mounting, encoder, turntable
11142524 Retainer
13229076 Outrigger, front, left
13229077 Outrigger, rear
13225360 Chain drive system
13225359 Chain drive system
11882703 Lock, outrigger, left
11307371 Roller AS
11882664 Lock, outrigger, right
13320980 Pumping system
13318395 Pumping mechanism
13314865 Cylinder, oil, main
13314865 Cylinder, oil, main
13315001 Head, piston
13430377 Support, water tank
11660952 Hanger, hopper
A810301032042 S valve assembly
A810301032042 S valve assembly
A810301032042 S valve assembly
13281077 Swing mechanism
A810301060032 Cylinder, swing valve, left
A810301060033 Cylinder, swing valve, right
13320903 Hopper GP
13320903 Hopper GP
12807822 Lamp, working
13246814 mixing device
13246814 mixing device
A220501000080 Motor, plunger
11206195 Group, elbow, hinged
13430359 Support, main oil cylinder
13471855 Base structure GP
13132745 Support,main
10672496 Box, plate, backup
12736892 Support, accumulator
13224726 Chassis GP
A810103020022 Hanger, transfer case
13231789 Refashionment, chassis
13223869 Transfer case and oil pump GP
B220301000049 Pump, plunger
A810103012003 Case, transfer
A810103012003 Case, transfer
12245377 Box body, combination
13325464 Fork, shift, AS
B220304000083 Pump, plunger
B229900000324 Valve, control
12825566 Air valve and oil filling pipe GP
13468967 Platform and accessories
12817240 Support, electric control
12714751 Mudflap,rear
13231410 Hydraulic system
13225801 Hydraulic system, boom
13225798 hydraulic system
Pipeline, hyd
13225789 Pipeline, hydraulic
13225791 Hydraulic system
13225791 Hydraulic system
13225713 Pipeline, hydraulic,boom 2
13225787 Pipeline, hydraulic,boom 1
13225954 Hydraulic system, pumping
13225954 Hydraulic system, pumping
13024462 Reversing valve GP, main
60059723 Valve, electromagnetic
60059727 Valve, electromagnetic
13432022 Mounting, tank, oil
60101257 Core GP, filter, oil intake
60193267 Element GP, filter, return oil
A810201020952 Valve GP, control, oil cylinder
60059726 Valve, electromagnetic
60142588 Radiator
13234624 Hydraulic systemпјЊmixing system
13234624 Hydraulic systemпјЊmixing system
12905848 Auxiliary valve GP
60077983 Valve, electromagnetic
13234625 Hydraulic system, swing cylinder
13234625 Hydraulic system, swing cylinder
B229900003708 Accumulator
12910134 Swing valve GP
60059724 Valve, electromagnetic
13348225 Flushing system
A220302000023 Pump, water
13226268 Hydraulic system, tower, revolving
13226268 Hydraulic system, tower, revolving
B229900000018 Filter, oil, high-pressure
12343138 Rotary balance valve AS
13226267 Hydraulic system, outrigger
13226267 Hydraulic system, outrigger
10986259 Valve GP, control, outrigger, right
10898103 Operation box, outrigger, four-handle
B220401000305 Valve, multiway, outrigger
13199096 Electrical system
13199097 Sensor GP
11053304 Mechanic encoder GP
12799283 Box, operation, outrigger
13199099 Harness fastening GP
13199107 Harness GP
13199102 Electric control cabinet GP
13503789 Horn GP
13191316 Box , operation, maintenance
11092705 Operation box GP
A810201202157 Box, operation, small
13199100 Lamp GP
13352957 Appliance, electric, cab
12562604 Remote controller GP
13234694 Tubing, concrete
13234695 Piping, platform
13173901 Support , single, 150
13348712 140KX Support, double
13235228 Support , double, 140
13479376 Piping, boom
13423165 Lubrication system

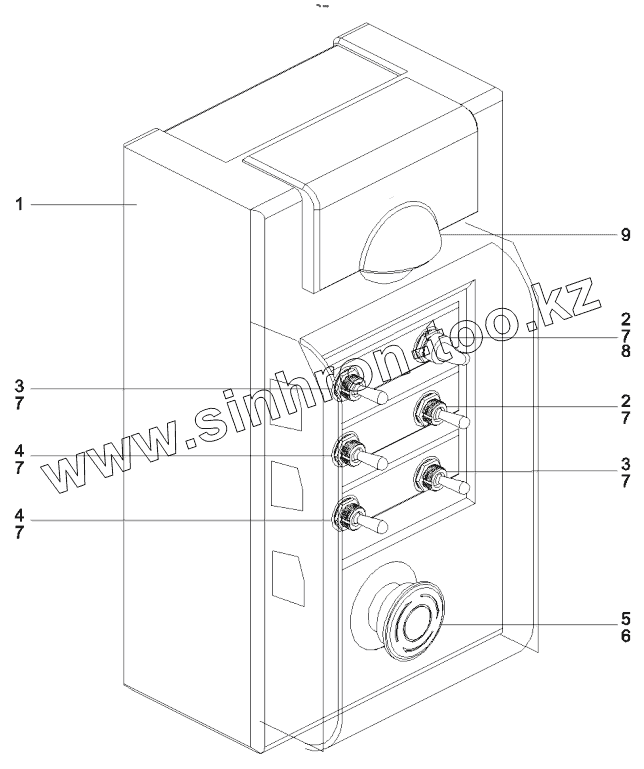

1
2
2
3
3
4
4
5
6
7
7
7
7
7
7
8
9
Позиция на иллюстрации
Заводской номер детали
Название детали
1
60034172
Box, operation, small
2
B241200000531
Switch, toggle
3
B241200000529
Switch, toggle
4
B241200000530
Switch, toggle
5
B240200000059
Switch, stop, emergency, red, XB2-BS542
6
B240200000081
Contact block, normally-opened, ZB2-BE101C
7
60015462
Pad, waterproof
8
A229900009656
Cap, protective
9
B230101000684
O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
