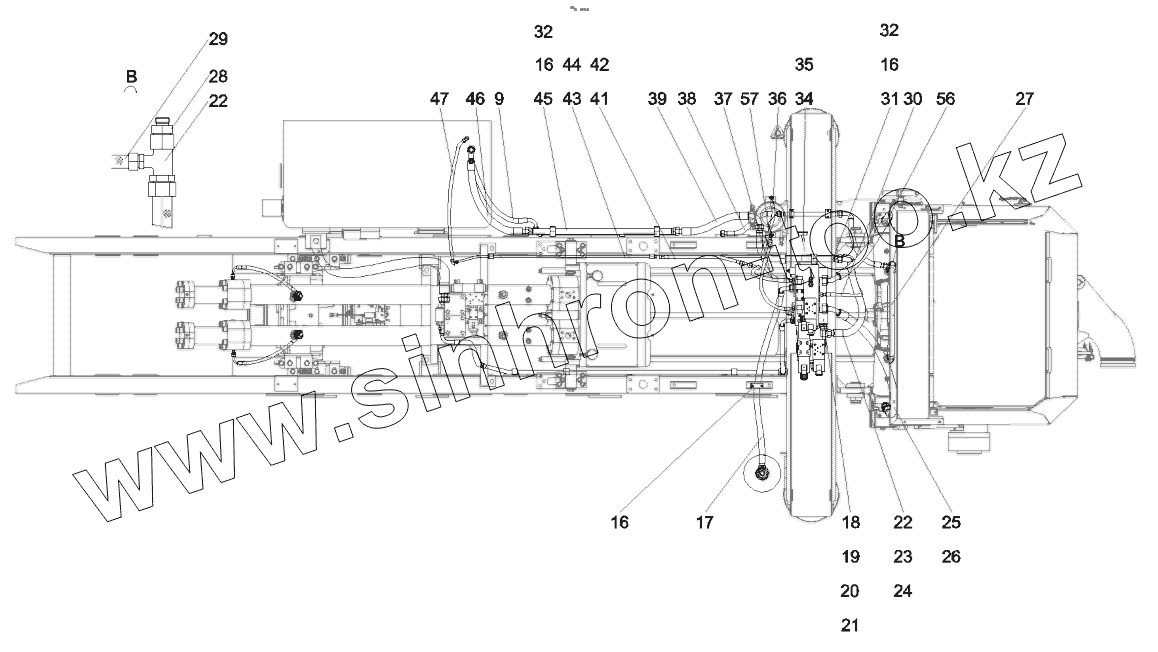

Каталог запасных частей к технике: SANY SYM5190THBDZ 30. 13234625 Hydraulic system, swing cylinder
9
16
16
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
32
34
35
36
37
38
39
41
42
43
44
45
46
47
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9 | 60025953 | Hose, rubber | |
| 16 | 12127381 | Clamp body, pipe, upper | |
| 17 | B230103001500 | Hose,rubber | |
| 18 | 11781856 | Flange, oil return, swing valve | |
| 19 | B230101002071 | O-ring | |
| 20 | A210204000345 | Screw | |
| 21 | A210401000001 | Washer | |
| 22 | B210780000052 | Connector, pipe | |
| 23 | B210780000838 | Connector, pipe | |
| 24 | B230103000415 | Hose, rubber | |
| 25 | A820205001244 | Body, connector, oil, inlet and outlet, swing cylinder | |
| 26 | 60113041 | Hose, rubber | |
| 27 | 60012624 | Hose, rubber | |
| 28 | A820205000022 | Bolt, hinged | |
| 29 | B230103004932 | Hose, rubber | |
| 30 | B230103003858 | Hose, rubber | |
| 31 | 13017691 | Pipe, oil | |
| 32 | 12127357 | Clamp body, pipe, lower | |
| 34 | B250202000006 | Gauge, pressure | |
| 35 | B230103001442 | Pipe, pressure measuring | |
| 36 | B230103000469 | Hose, rubber | |
| 37 | B230103004101 | Hose, rubber | |
| 38 | B230103000974 | Hose, rubber | |
| 39 | B230103000409 | Hose, rubber | |
| 41 | 13070539 | Pipe, oil | |
| 42 | 60014673 | Body, clamp | |
| 43 | 13018800 | Pipe, oil | |
| 44 | 60014672 | Body, clamp | |
| 45 | 13018782 | Pipe, oil | |
| 46 | B230103000411 | Hose, rubber | |
| 47 | B230103003877 | Hose, rubber | |
| 56 | 12985521 | Hose,rubber | |
| 57 | B230103000468 | Hose, rubber |
