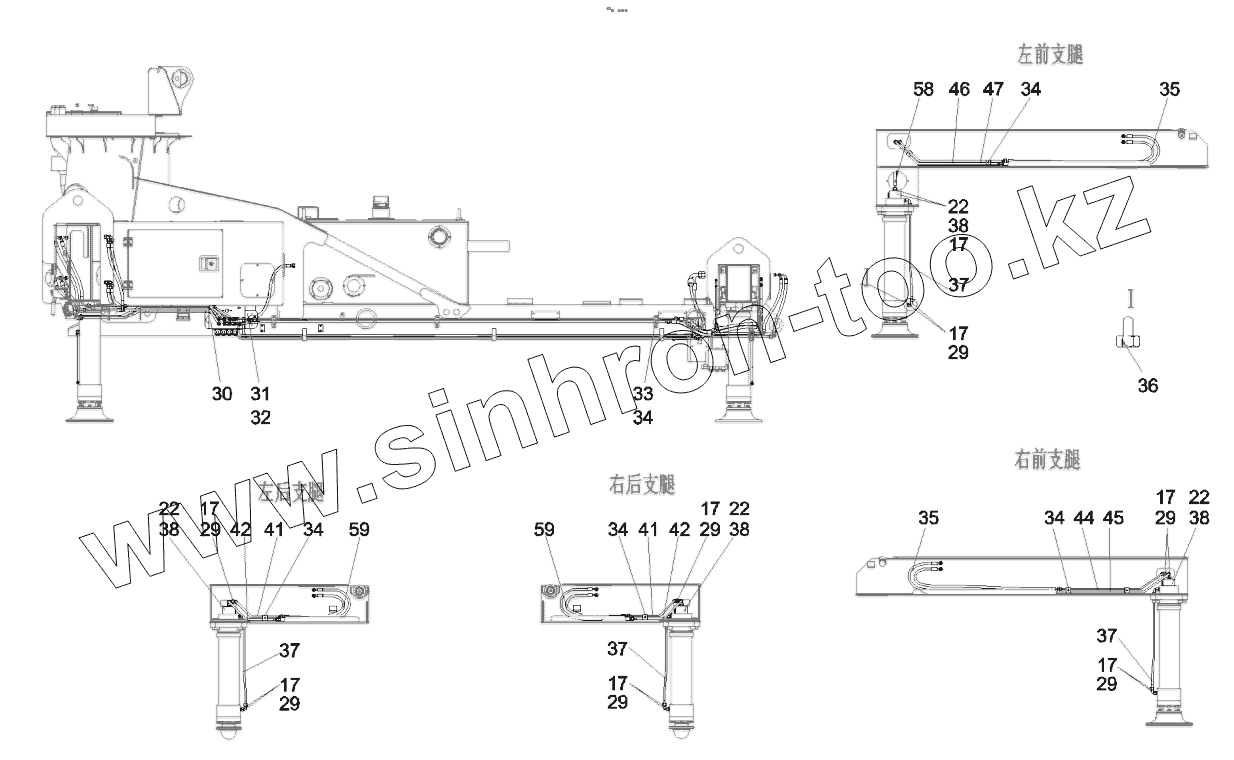

Каталог запасных частей к технике: SANY SYM5190THBDZ 30. 13226267 Hydraulic system, outrigger
17
17
17
17
17
17
17
17
22
22
22
22
29
29
29
29
29
29
29
30
31
32
33
34
34
34
34
34
35
35
36
37
37
37
37
38
38
38
38
41
41
42
42
44
45
46
47
58
59
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 17 | B210780000037 | Connector, hose, GE12LMEDOMDA3C | |
| 22 | A210204000217 | Screw | |
| 29 | B210780000024 | Connector, hose, EW12LOMDA3C | |
| 30 | 10986259 | Valve GP, control, outrigger, right | |
| 31 | A210204000130 | Screw | |
| 32 | 10969372 | Plate, mounting , control box, outrigger | |
| 33 | 60202487 | Nut | |
| 34 | 60014671 | Body, clamp | |
| 35 | 12823453 | Hose, rubber, double-row, outrigger, front | |
| 36 | B230101000417 | O-ring | |
| 37 | 12823524 | Pipe, oil | |
| 38 | B222200000051 | Lock, hydraulic, outrigger | |
| 41 | 13070400 | Pipe, oil | |
| 42 | 13070402 | Pipe, oil | |
| 44 | 12823745 | Pipe, oil | |
| 45 | 12823747 | Pipe, oil | |
| 46 | 12823526 | Pipe, oil | |
| 47 | 12823528 | Pipe, oil | |
| 58 | 12936787 | Hose, rubber | |
| 59 | 12824005 | Hose, rubber, double-row, outrigger, rear |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
