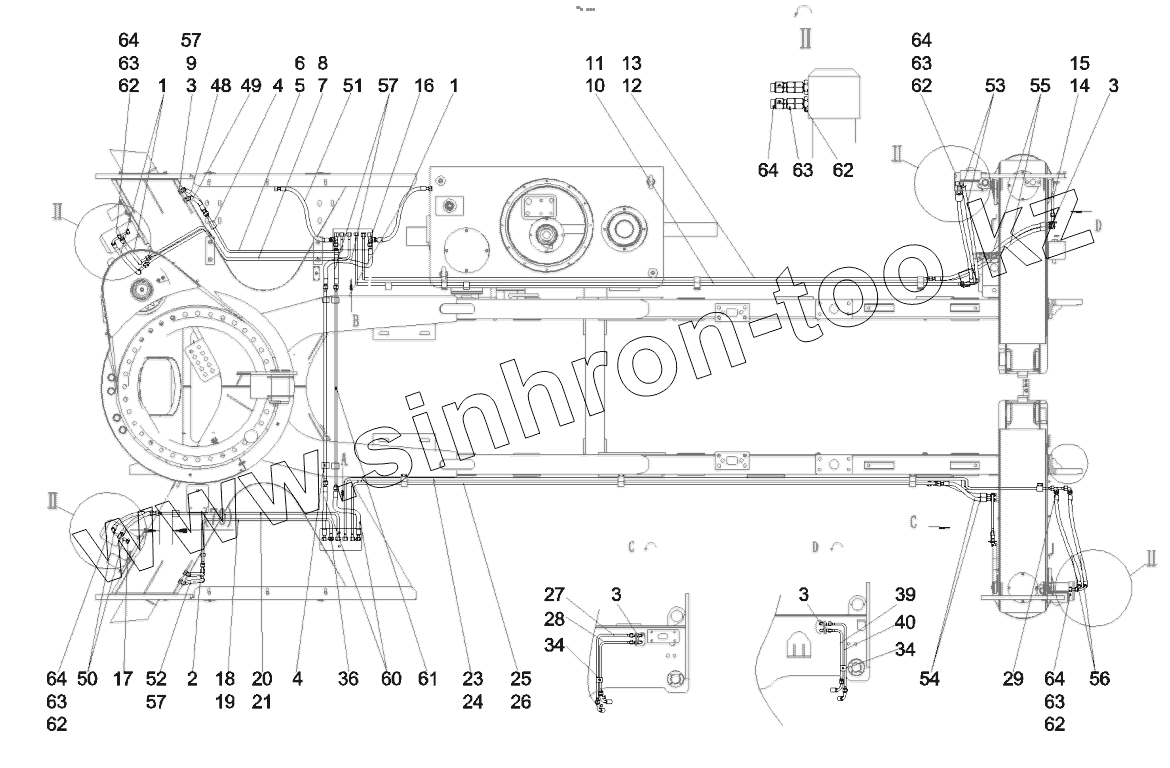

Каталог запасных частей к технике: SANY SYM5190THBDZ 30. 13226267 Hydraulic system, outrigger

Тип техники

Марка

Модель

Схема

1

1

2

3

3

3

3

4

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

23

24

25

26

27

28

29

34

34

36

39

40

48

49

50

51

52

53

54

55

56

57

57

57

60

61

62

62

62

62

62

63

63

63

63

63

64

64

64

64

64

Позиция на иллюстрации	Заводской номер детали		Название детали
1	B230103004190		Hose
2	B230103000475		Hose, rubber
3	B210780000649		Connector, pipe
4	60014672		Body, clamp
5	13024751		Pipe, oil
6	13024754		Pipe, oil
7	13024756		Pipe, oil
8	13025392		Pipe, oil
9	B210780000636		Connector, hose, EW10LOMDA3C
10	13031716		Pipe, oil
11	13031722		Pipe, oil
12	13031742		Pipe, oil
13	13037435		Pipe, oil
14	13025224		Pipe, oil
15	13025275		Pipe, oil
16	B210780000016		Connector, hose, EL12LOMDA3C
17	B210780000037		Connector, hose, GE12LMEDOMDA3C
18	13199022		Pipe, oil
19	13199132		Pipe, oil
20	13199430		Pipe, oil
21	13199543		Pipe, oil
23	13199567		Pipe, oil
24	13199848		Pipe, oil
25	13198945		Pipe, oil
26	13198979		Pipe, oil
27	13024981		Pipe, oil
28	13025069		Pipe, oil
29	B210780000024		Connector, hose, EW12LOMDA3C
34	60014671		Body, clamp
36	B230101000417		O-ring
39	13070387		Pipe, oil
40	13070397		Pipe, oil
48	B230103005083		Hose, rubber
49	60024581		Hose, rubber
50	60101298		Hose, rubber
51	B230103004472		Hose, rubber
52	B230103000474		Hose, rubber
53	B230103000093		Hose, rubber
54	60211065		Hose, rubber
55	60209251		Hose, rubber
56	B230103003912		Hose, rubber
57	A210309000003		Nut
60	60101297		Hose, rubber
61	12800446		Pipe, oil
62	B210780000746		Connector
63	B210780000829		Connector, hose, GZ12LA3C
64	60240932		valve, damper, one-way

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
