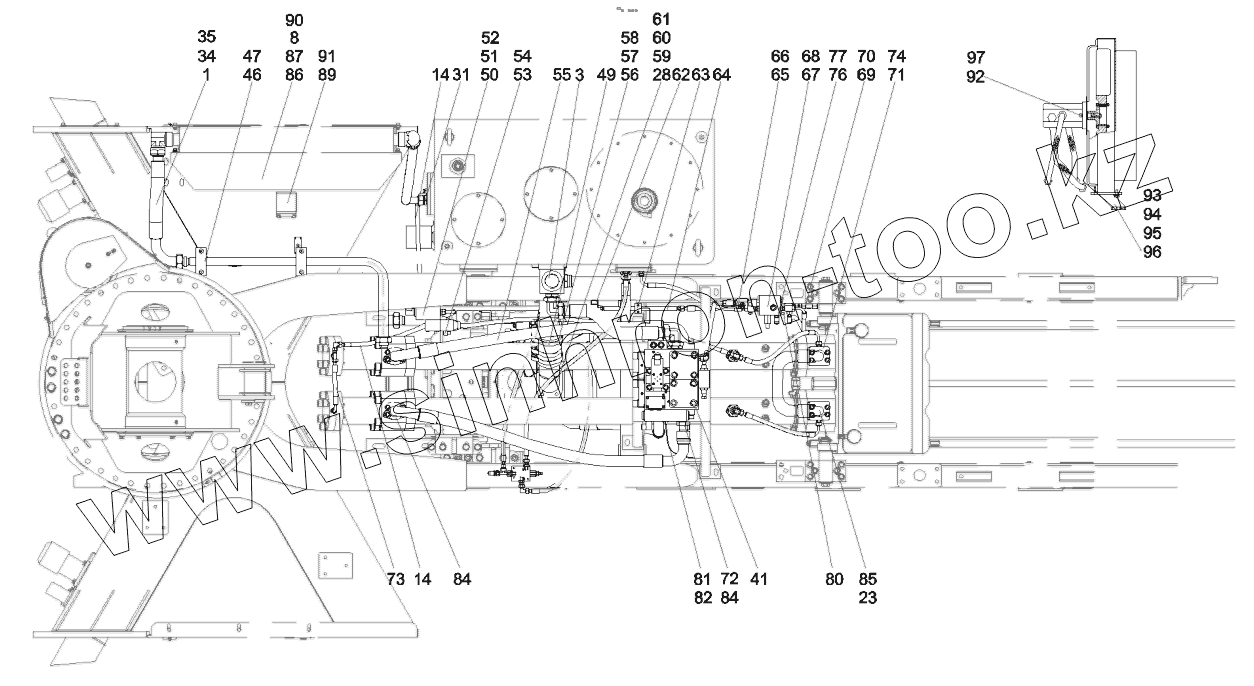

Каталог запасных частей к технике: SANY SYM5190THBDZ 30. 13225954 Hydraulic system, pumping
1
3
8
14
14
23
28
31
34
35
41
46
47
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
76
77
80
81
82
84
84
85
86
87
89
90
91
92
93
94
95
96
97
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A820205000532 | Connector, air cooler | |
| 2 | 60162235 | Hose,rubber | |
| 3 | B210361000000 | Plug, Screw | |
| 8 | B210780000036 | Connector, pipe | |
| 14 | 60019596 | Hose, rubber | |
| 23 | A210111000205 | Bolt | |
| 28 | A210204000343 | SCREW | |
| 31 | B210780000052 | Connector, pipe | |
| 34 | 60014929 | Hose, rubber | |
| 35 | B210780000907 | Connector, pipe | |
| 41 | A210204000337 | Screw | |
| 46 | 13235730 | Pipe, steel,air cooler | |
| 47 | 60014677 | Body, clamp | |
| 49 | 10746630 | Hose, rubber, oil suction | |
| 50 | A210204000141 | Screw | |
| 51 | A810201020952 | Valve GP, control, oil cylinder | |
| 52 | 11300142 | Cover, waterproof, valve GP, control, oil cylinder | |
| 53 | B210780001404 | Connector, pipe | |
| 54 | 21008727 | Fitting, pipe | |
| 55 | 13070385 | Hose,rubber | |
| 56 | A210204000170 | Screw | |
| 57 | 13395982 | Valve, cut-off | |
| 58 | 13026169 | Pipe, oil intake, main | |
| 59 | A229900001659 | Hoop, T-type | |
| 60 | 13026381 | Pipe, steel, oil inlet, main pump | |
| 61 | A820606020010 | Plate, rubber | |
| 62 | 60014675 | Body, pipe clamp | |
| 63 | 60014673 | Body, clamp | |
| 64 | 13026160 | Pipe, oil | |
| 65 | A229900002434 | Connector, straight-through | |
| 66 | A220401000753 | Valve, ball | |
| 67 | 60056959 | Valve, waterproof | |
| 68 | A210204000138 | Screw | |
| 69 | B210780000683 | Connector, pipe | |
| 70 | B210780000016 | Connector, hose, EL12LOMDA3C | |
| 71 | 13110662 | Flange, transition | |
| 72 | A210204000455 | Screw | |
| 73 | 60154958 | Hose, rubber | |
| 74 | A210111000208 | Bolt | |
| 76 | B210780000012 | Connector, pipe | |
| 77 | B210780001749 | Connector, pressure measuring, SKK20-M12x1.5-PC | |
| 80 | 11036715 | Pipe, drainage, waterproof | |
| 81 | 60228754 | Gauge, pressure | |
| 82 | 60021305 | Pipe,measurement,pressure | |
| 84 | A210401000002 | Washer | |
| 85 | B230101000647 | O-ring | |
| 86 | 60142588 | Radiator | |
| 87 | B210780000131 | Connector, hose, GE18LMEDOMDA3C | |
| 89 | 60214753 | Motor, gear | |
| 90 | 12043397 | Support, air cooler | |
| 91 | A210405000007 | Washer | |
| 92 | A210401000017 | Washer | |
| 93 | 12302980 | Plate, backup | |
| 94 | A210405000011 | Washer | |
| 95 | A210401000001 | Washer | |
| 96 | A210111000018 | Bolt | |
| 97 | A210314000008 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
