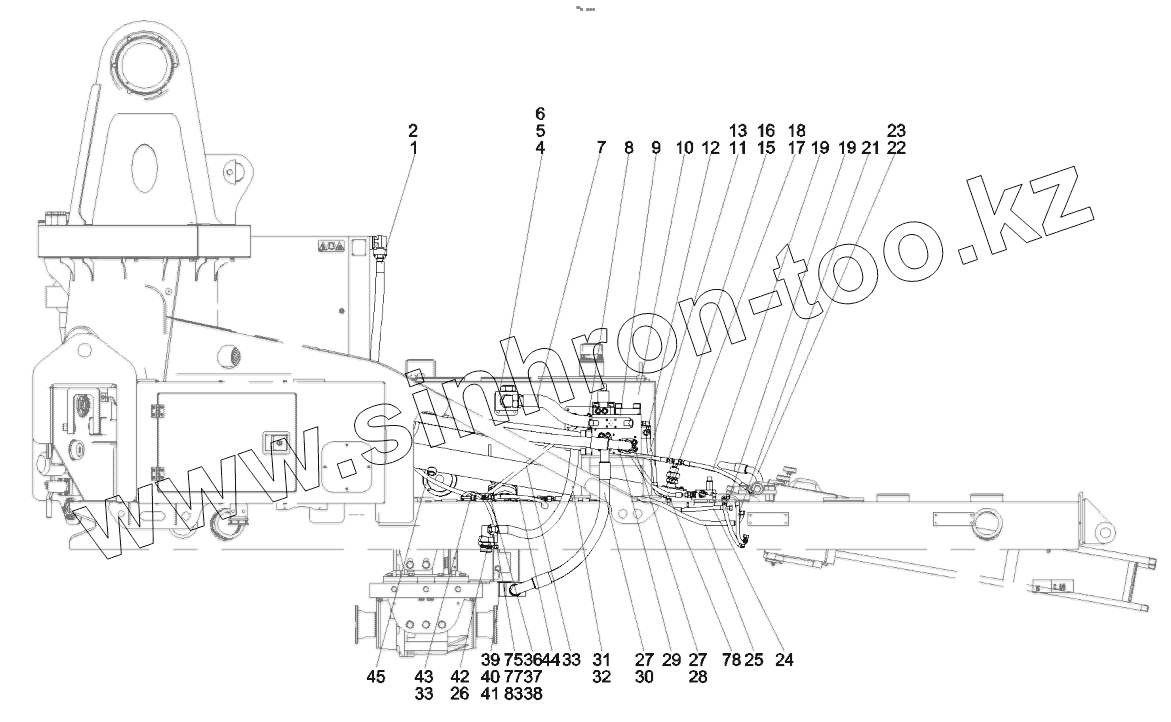

Каталог запасных частей к технике: SANY SYM5190THBDZ 30. 13225954 Hydraulic system, pumping

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
19
21
22
23
24
25
26
27
27
28
29
30
31
32
33
33
36
37
38
39
40
41
42
43
44
45
75
77
78
83
Позиция на иллюстрации Заводской номер детали Название детали
1 A820205000532 Connector, air cooler
2 60162235 Hose,rubber
4 A210111000277 Bolt
5 A210609000168 O-ring, 63x3.55 GB3452.1
6 13473967 Pipe, steel, oil return, main valve
7 60212561 Hose,rubber
8 B210780000036 Connector, pipe
9 13024462 Reversing valve GP, main
10 13432022 Mounting, tank, oil
11 B230103003857 Hose, rubber
12 B210780000636 Connector, hose, EW10LOMDA3C
13 B210780000015 Connector, hose, EL10LOMDA3C
15 B210780000631 Connector, hose, ET10LOMDA3C
16 B230103007432 Hose, rubber
17 A820205000005 Connector, pipe, U-shaped
18 B220400000101 Valve, one-way
19 B230103000469 Hose, rubber
21 B230103000474 Hose, rubber
22 B230103001062 Hose, rubber
23 A210111000205 Bolt
24 60156806 Hose, rubber
25 60101299 Hose, rubber
26 10680151 Connector
27 B210780000693 Flange, SAE
28 A210204000343 SCREW
29 13070384 Hose,rubber
30 B230103004195 Hose, rubber
31 B210780000052 Connector, pipe
32 60113034 Hose, rubber
33 B230103003874 Hose, rubber
36 A210111000093 Bolt
37 60122597 Valve GP, relief
38 60185722 Connector, filter
39 B230101000657 O-ring
40 13026384 Flange, oil outlet
41 A210204000337 Screw
42 B210780000838 Connector, pipe
43 B210780001748 Connector, pressure measuring
44 B230103000462 Hose, rubber
45 60209251 Hose, rubber
75 10680148 Connector
77 B210780001749 Connector, pressure measuring, SKK20-M12x1.5-PC
78 B230103003877 Hose, rubber
83 A820205001372 Body, connector
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
