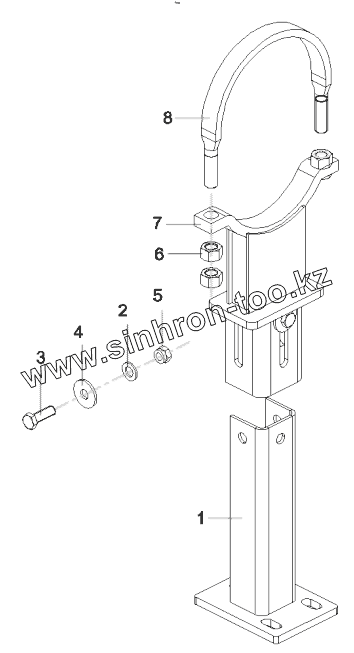

Каталог запасных частей к технике: SANY SYM5190THBDZ 30. 13173901 Support , single, 150

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано SYM5190THBDZ 30 Truck-mounted concrete pump 13233665 Boom GP 13233665 Boom GP 13234430 CylinderпјЊboom 1 13229819 CylinderпјЊboom 2 13229164 CylinderпјЊboom 3 13225469 CylinderпјЊboom 4 13472469 Revolving tower GP 13472469 Revolving tower GP 13227405 Turntable AS 13229662 Slewing mechanism 60022996 Motor, cycloid A990303070000 Reducer GP A810103000410 Reducer AS 13230447 Covering part 13229075 Outrigger, front, right 12620653 Cylinder, oil, outrigger 11141675 Mounting, encoder, turntable 11142524 Retainer 13229076 Outrigger, front, left 13229077 Outrigger, rear 13225360 Chain drive system 13225359 Chain drive system 11882703 Lock, outrigger, left 11307371 Roller AS 11882664 Lock, outrigger, right 13320980 Pumping system 13318395 Pumping mechanism 13314865 Cylinder, oil, main 13314865 Cylinder, oil, main 13315001 Head, piston 13430377 Support, water tank 11660952 Hanger, hopper A810301032042 S valve assembly A810301032042 S valve assembly A810301032042 S valve assembly 13281077 Swing mechanism A810301060032 Cylinder, swing valve, left A810301060033 Cylinder, swing valve, right 13320903 Hopper GP 13320903 Hopper GP 12807822 Lamp, working 13246814 mixing device 13246814 mixing device A220501000080 Motor, plunger 11206195 Group, elbow, hinged 13430359 Support, main oil cylinder 13471855 Base structure GP 13132745 Support,main 10672496 Box, plate, backup 12736892 Support, accumulator 13224726 Chassis GP A810103020022 Hanger, transfer case 13231789 Refashionment, chassis 13223869 Transfer case and oil pump GP B220301000049 Pump, plunger A810103012003 Case, transfer A810103012003 Case, transfer 12245377 Box body, combination 13325464 Fork, shift, AS B220304000083 Pump, plunger B229900000324 Valve, control 12825566 Air valve and oil filling pipe GP 13468967 Platform and accessories 12817240 Support, electric control 12714751 Mudflap,rear 13231410 Hydraulic system 13225801 Hydraulic system, boom 13225798 hydraulic system Pipeline, hyd 13225789 Pipeline, hydraulic 13225791 Hydraulic system 13225791 Hydraulic system 13225713 Pipeline, hydraulic,boom 2 13225787 Pipeline, hydraulic,boom 1 13225954 Hydraulic system, pumping 13225954 Hydraulic system, pumping 13024462 Reversing valve GP, main 60059723 Valve, electromagnetic 60059727 Valve, electromagnetic 13432022 Mounting, tank, oil 60101257 Core GP, filter, oil intake 60193267 Element GP, filter, return oil A810201020952 Valve GP, control, oil cylinder 60059726 Valve, electromagnetic 60142588 Radiator 13234624 Hydraulic systemпјЊmixing system 13234624 Hydraulic systemпјЊmixing system 12905848 Auxiliary valve GP 60077983 Valve, electromagnetic 13234625 Hydraulic system, swing cylinder 13234625 Hydraulic system, swing cylinder B229900003708 Accumulator 12910134 Swing valve GP 60059724 Valve, electromagnetic 13348225 Flushing system A220302000023 Pump, water 13226268 Hydraulic system, tower, revolving 13226268 Hydraulic system, tower, revolving B229900000018 Filter, oil, high-pressure 12343138 Rotary balance valve AS 13226267 Hydraulic system, outrigger 13226267 Hydraulic system, outrigger 10986259 Valve GP, control, outrigger, right 10898103 Operation box, outrigger, four-handle B220401000305 Valve, multiway, outrigger 13199096 Electrical system 13199097 Sensor GP 11053304 Mechanic encoder GP 12799283 Box, operation, outrigger 13199099 Harness fastening GP 13199107 Harness GP 13199102 Electric control cabinet GP 13503789 Horn GP 13191316 Box , operation, maintenance 11092705 Operation box GP A810201202157 Box, operation, small 13199100 Lamp GP 13352957 Appliance, electric, cab 12562604 Remote controller GP 13234694 Tubing, concrete 13234695 Piping, platform 13173901 Support , single, 150 13348712 140KX Support, double 13235228 Support , double, 140 13479376 Piping, boom 13423165 Lubrication system

1

2

3

4

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1	13110498		Seat, plate, plug, small
2	A210405000001		Washer
3	A210111000203		Bolt
4	A210404000004		Washer, 12 GB96.1
5	A210315000015		Nut
6	A210307000028		Nut
7	13173903		Seat, plate, plug, large
8	A810301010126		U-bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
