A810102060135 Drive & damping system

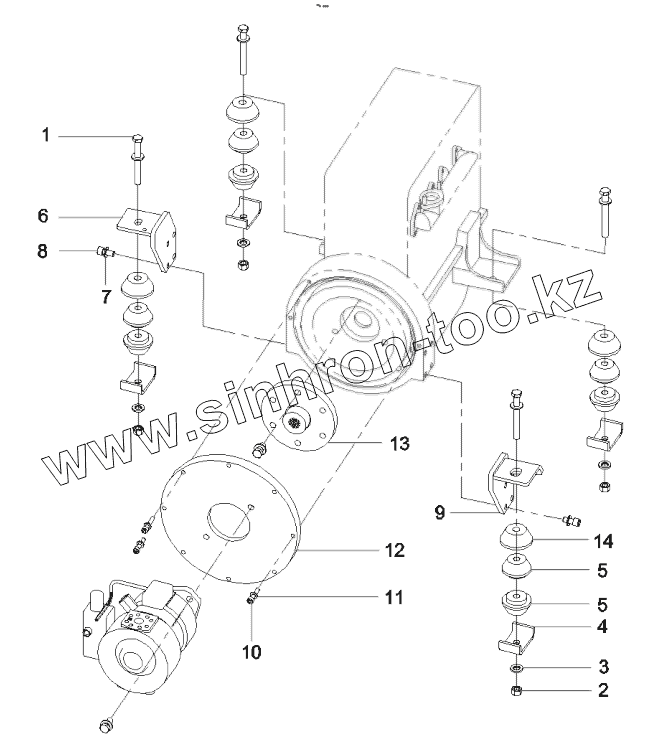

Каталог запасных частей к технике: SANY SY75C9I2H. A810102060135 Drive & damping system
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
12095406 Hydraulic Excavator SY75C9
12145569 Slewing device
12145569 Slewing device
12158796 Pipeline, pilot, hydraulic
12158796 Pipeline, pilot, hydraulic
60004100 Valve, foot
60004100 Valve, foot
60004100 Valve, foot
B229900001009 Valve, pilot
B220400000388 Valve, oil source control
B229900000063 Filter, oil
B229900003353 Valve, pilot, right
11168809 Joystick AS, right
B229900003354 Valve, pilot, left
11168808 Joystick AS, left
11992301 Cab GP
12934780 Running control mechanism SY135C9.1.5.2
12049398 Seat and control cabinet
12168555 Support, bottom plate
11095397 7T Air conditioning system
60030339 Air conditioning system
60030339 Air conditioning system
60030339 Air conditioning system
60030991 Evaporator AS
12146141 Cover GP
10872465 Hood AS, engine, front
10872468 Panel GP, door, left
11234424 Bracket GP
11292833 Lock catch AS
11297512 Cover GP, rear
10872431 Panel GP, door, right
11297791 Counterweight GP
12158687 Pipeline, main, hydraulic
12158687 Pipeline, main, hydraulic
B220301000569 Pump, plunger
12158635 Tank GP, hydraulic
60015195 Valve, main control
60015195 Valve, main control
60015195 Valve, main control
60015195 Valve, main control
60015195 Valve, main control
60015195 Valve, main control
60015195 Valve, main control
60015195 Valve, main control
60015195 Valve, main control
12151522 Power system
11097777 Air inlet system
B222100000599 Air cleaner
12151506 Сooling system
60037353 Radiator
11919286 Fuel system
10866074 Tank GP, fuel
60064763 Filter, fuel (primary)
A810102060135 Drive & damping system
10866413 Exhaust system
B220200000094 Engine
60029665 Cover, valve mechanism
60029664 Cylinder Head
60029666 Cylinder block
60029666 Cylinder block
60029673 Oil pan & engine oil level gauge
60029670 Camshaft & valve mechanism
60029667 Crankshaft & piston & flywheel
60029671 Timing gearbox and flywheel housing
60029660 Manifold, inlet
60029661 Manifold, exhaust
60029644 Breather
60029643 Fuel injection system
60029662 Lines, fuel injection pump
60029663 Connecting parts, fuel injection pump
60029646 Pump, fuel injection
60029654 Regulator, Speed
60029654 Regulator, Speed
60029647 Pump, fuel priming (manual)
60029652 Coupling, fuel injection pump
60029648 Pump, water
60029656 Pipe, water (engine)
60029659 Thermostat
60029672 Fan & belt
60029645 Pump, engine oil
60029658 Lines, engine oil
60029651 Starting motor
60029650 Alternator
60029668 Lines, fuel
60029655 Bracket, idler gear
60029657 Bracket
60029649 Filter, engine oil
60029653 Separator, water & fuel
60029669 Fuel filter & bracket
10608118 Travel device
10608118 Travel device
10608118 Travel device
10608118 Travel device
11260095 Roller AS, track
11899729 Roller As, carrier
A229900004501 Connector, central slewing
10475467 Work equipment
10475467 Work equipment
10475467 Work equipment
A810201068291 Pipeline, work equipment AS
10468495 Bucket
12390359 Electrical system SY75C9.5C
12390237 Vehicle electrical assembly SY75C9.5C.4
12390225 Cab electrical assembly SY75C9.5C.1
12390213 Electrical assembly SY75C9.5C.1.3
10878001 Painting, excavator
10878001 Painting, excavator
10878001 Painting, excavator
11241923 Accessories
11241923 Accessories
1061107 9O-ring, undercarriage, SY60
10611083 O-ring, pilot pipeline, SY60
10611084 O-ring, mian pipeline
10611085 O-ring, work equipment, SY60
A810509000100 Tool, attached
A290000000155 Toolbox, portable
60047136 Reducer GP
60184683 Plunger motor
60184683 Plunger motor
60184685 Reduction Gear
60182027 Reducer
60192265 Motor AS, hydraulic
60192265 Motor AS, hydraulic
60192265 Motor AS, hydraulic
60191906 Reducer GP,gear
60199324 Cylinder, bucket 6T
60199325 Cylinder, boom 6T
60199326 Cylinder, arm 6T
60199327 Cylinder, dozer blade 6T
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
60128283 Cab AS
Other Fittings
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
A210110000193
Bolt
2
A210307000028
Nut
3
A210491000118
Washer 16GB1230
4
10178544
Coaster
5
A222000000032
Shock absorber
6
A810102060136
Bracket, rear, lh
7
A210444000001
Washer
8
A210111000205
Bolt
9
A810102060137
Bracket, rear, rh
10
A210204000335
Screw
11
A210405000011
Washer
12
A820101342979
Cover, end
13
60017431
Coupler AS
14
A820101356983
Coaster, bowl
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
