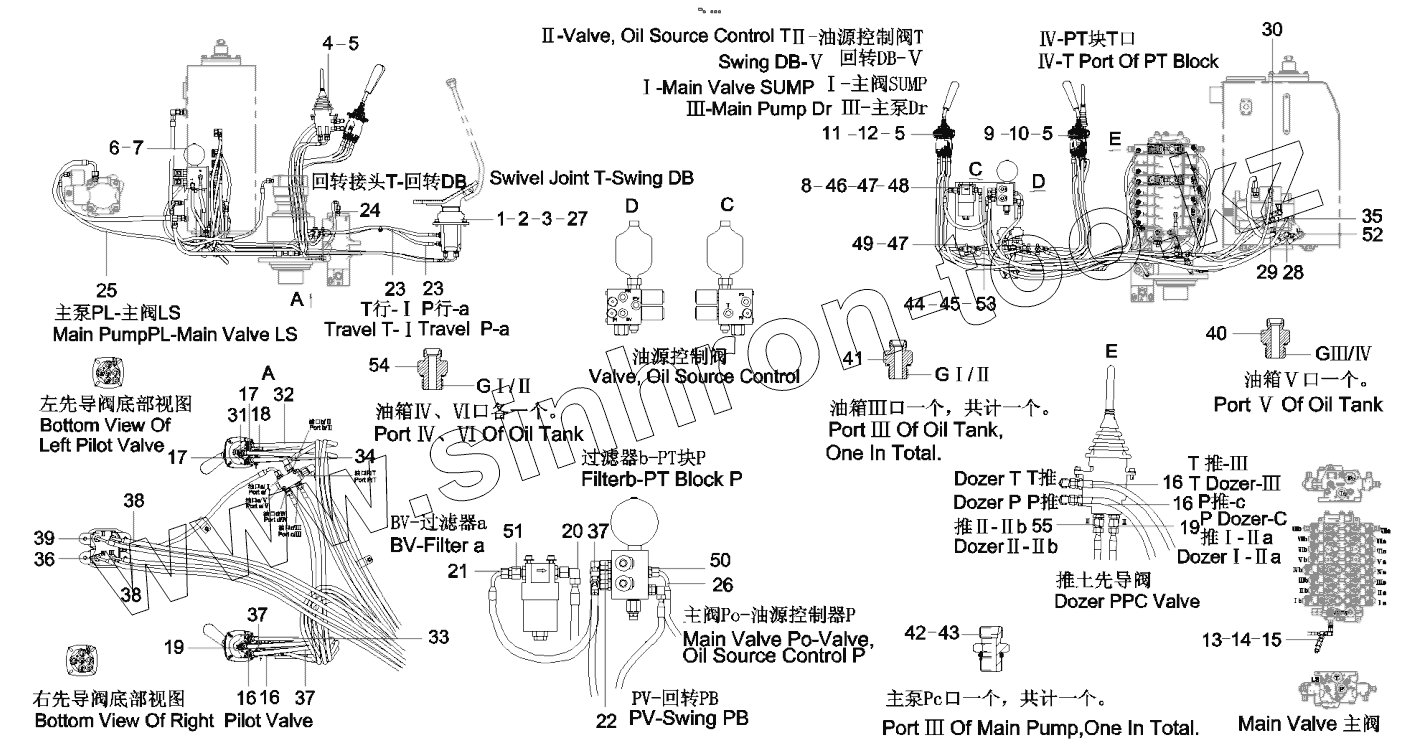

Каталог запасных частей к технике: SANY SY75C9I2H. 12158796 Pipeline, pilot, hydraulic
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
17
17
18
19
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
37
38
38
39
40
41
42
43
44
45
46
47
47
48
49
50
51
52
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60004100 | Valve, foot | |
| 2 | A210204000196 | Screw | |
| 3 | A210401000001 | Washer | |
| 4 | B229900001009 | Valve, pilot | |
| 5 | A210204000130 | Screw | |
| 6 | B220400000388 | Valve, oil source control | |
| 7 | A210111000088 | Bolt | |
| 8 | B229900000063 | Filter | |
| 9 | B229900003353 | Valve, pilot, right | |
| 10 | 11168809 | Joystick as, right | |
| 11 | B229900003354 | Valve, pilot, left | |
| 12 | 11168808 | Joystick as, left | |
| 13 | B210780001045 | Connector, pipe | |
| 14 | A820205001061 | Coupler, sensor, negative flow | |
| 15 | Sensor, pressure | Sensor, pressure | |
| 16 | B230103000983 | Hose | |
| 17 | B230103000984 | Hose, rubber | |
| 18 | 21003860 | Hose | |
| 19 | B230103000907 | Hose, rubber | |
| 20 | B230103002533 | Hose | |
| 21 | A831213050000 | Hose, rubber | |
| 22 | Hose, rubber | Hose, rubber | |
| 23 | B230103001947 | Hose, rubber | |
| 24 | 60197249 | rubber hose | |
| 25 | B230103001946 | Hose, rubber | |
| 26 | 60187384 | rubber hose | |
| 27 | Pedal, foot | Pedal, foot | |
| 28 | 60154318 | Hose | |
| 29 | B230103000789 | Hose | |
| 30 | A831213073000 | Hose | |
| 31 | B230103002707 | Hose | |
| 32 | B230103008478 | Hose | |
| 33 | B230103002264 | Hose | |
| 34 | B230103001358 | Hose | |
| 35 | B230103004707 | Hose | |
| 36 | 21025907 | Hose | |
| 37 | B230103000988 | Hose | |
| 38 | B230103000895 | Hose | |
| 39 | 21020054 | Hose | |
| 40 | B210780001307 | Connector | |
| 41 | B210780000043 | End straight coupling | |
| 42 | 24004879 | Joint, pipe | |
| 43 | 23002753 | O-ring | |
| 44 | 12081914 | Plate, mounting, pilot | |
| 45 | 12540611 | Plate, transitional | |
| 46 | A210111000120 | Bolt | |
| 47 | A210307000017 | Nut | |
| 48 | A210405000011 | Washer | |
| 49 | A210111000024 | Bolt | |
| 50 | 60049162 | Filter, tube-type | |
| 51 | B210780000827 | Connector, pipe | |
| 52 | Hose | Hose | |
| 53 | 12085734 | Sheath | |
| 54 | B210780000179 | Connector, hose, GE12LR1/2EDOMDA3C | |
| 55 | 23000918 | Hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
