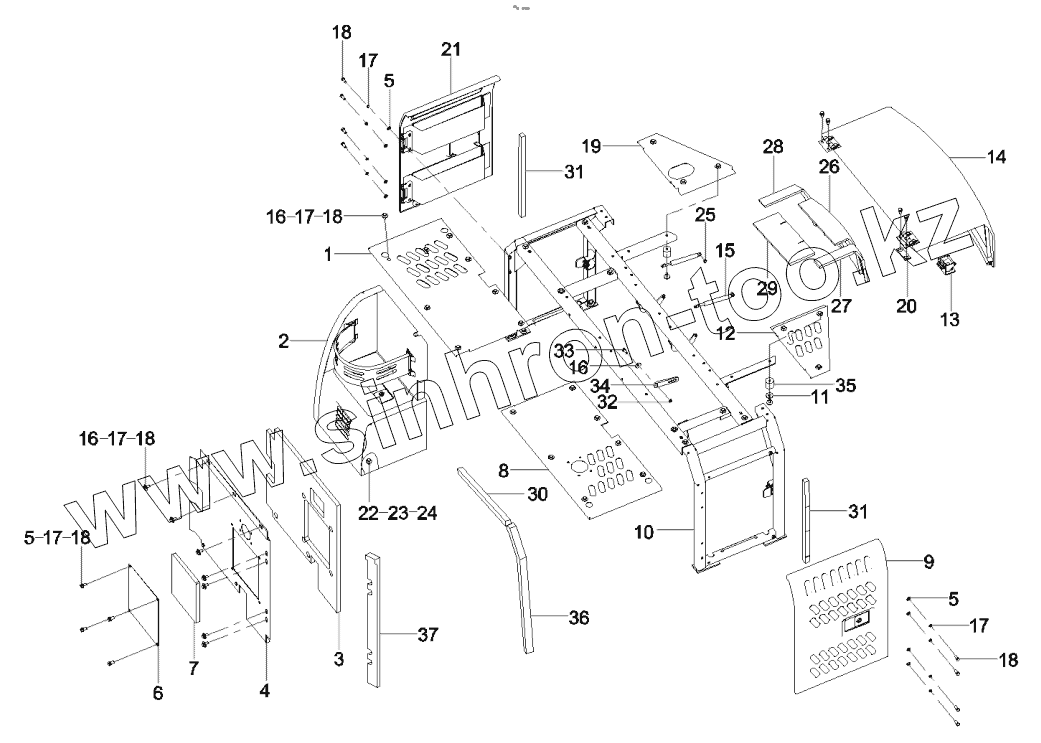

Каталог запасных частей к технике: SANY SY75C9I2H. 12146141 Cover GP
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
17
17
17
17
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11234419 | Coverplate, right | |
| 2 | 10872465 | Hood AS, engine, front | |
| 3 | 11295356 | Sponge, partition | |
| 4 | 12150776 | Plate GP, spacer | |
| 5 | A210405000011 | Washer | |
| 6 | 10869540 | Plate, sealing | |
| 7 | 11049187 | Sponge, sealing plate | |
| 8 | 11234434 | Coverplate AS, left | |
| 9 | 10872468 | Panel GP, door, left | |
| 10 | 11234424 | Bracket GP | |
| 11 | A210404000004 | Washer, 12 GB96.1 | |
| 12 | 11234443 | Coverplate AS, rear, left | |
| 13 | 11292833 | Lock catch AS | |
| 14 | 11297512 | Cover GP, rear | |
| 15 | 60078542 | Spring, air, rear hood | |
| 16 | A210404000003 | Washer | |
| 17 | A210401000001 | Washer | |
| 18 | A210111000018 | Bolt | |
| 19 | 11234420 | Coverplate, rear, right | |
| 20 | 11234421 | Shim, adjusting | |
| 21 | 10872431 | Panel GP, door, right | |
| 22 | A210111000038 | Bolt | |
| 23 | A210405000001 | Washer | |
| 24 | A210401000002 | Washer | |
| 25 | A210307000012 | Nut | |
| 26 | 10869568 | Sponge | |
| 27 | 10869571 | Sponge | |
| 28 | 10869567 | Sponge | |
| 29 | 10869569 | Sponge | |
| 30 | 12049959 | Sponge | |
| 31 | 12121473 | Sponge, limit | |
| 32 | A210307000017 | Nut | |
| 33 | A210111000023 | Bolt | |
| 34 | 11454028 | Rod, pull | |
| 35 | A230102000054 | Sleeve, spacer | |
| 36 | 12049855 | Sponge | |
| 37 | 12151114 | Sponge |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
