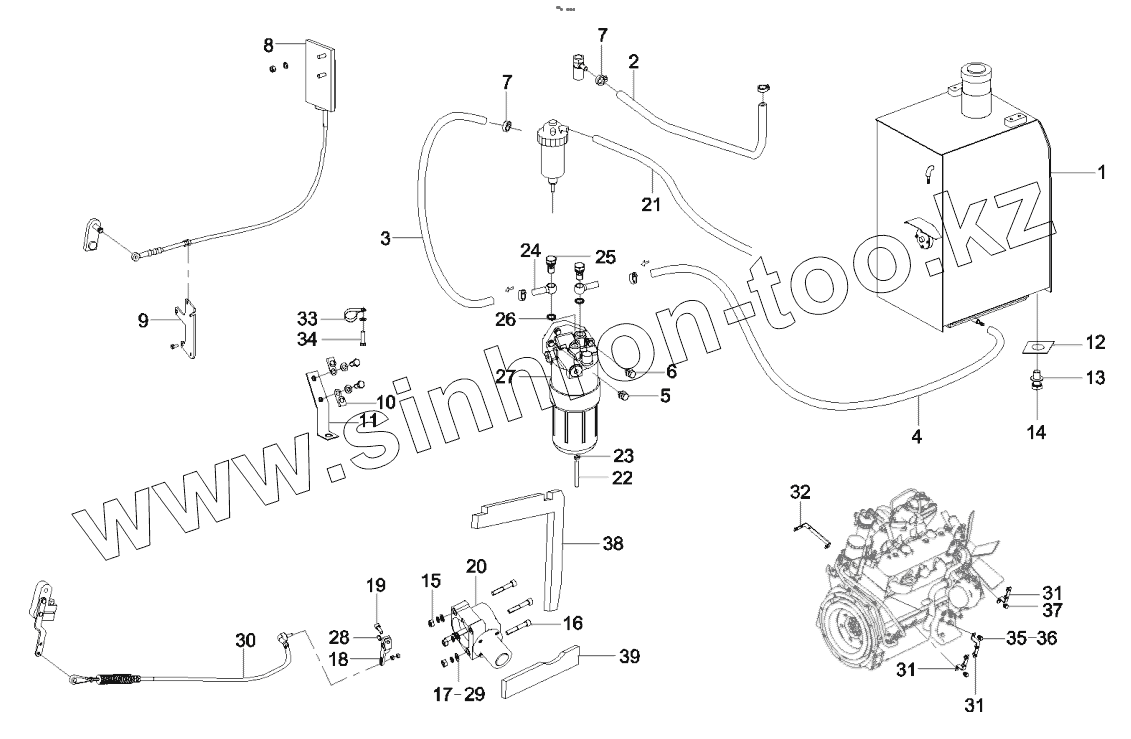

Каталог запасных частей к технике: SANY SY75C9I2H. 11919286 Fuel system
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 10866074 | Tank GP, fuel | |
| 2 | A820606020522 | Hose | |
| 3 | 12158923 | Oil inlet tube of | |
| 4 | 12339509 | Oil inlet tube of primary | |
| 5 | A210204000347 | False | |
| 6 | A210204000151 | Screw | |
| 7 | 21053360 | Clip, hose | |
| 8 | 60142856 | Manual flameout control cable | |
| 9 | 11728244 | Plate, fixing, flexible bearing | |
| 10 | 60176191 | The fixty of line | |
| 11 | 10138452 | Bracket, mtg, guy | |
| 12 | A820101118172 | Gasket | |
| 13 | A210405000003 | Washer | |
| 14 | A210204000198 | Screw | |
| 15 | A210307000017 | Nut | |
| 16 | A210204000012 | Screw | |
| 17 | A210405000011 | Washer | |
| 18 | 11626828 | Arm, throttle motor | |
| 19 | A210204000147 | Screw | |
| 20 | 60099069 | Motor,throttle | |
| 21 | A820606020543 | Hose | |
| 22 | 10949800 | Hose | |
| 23 | A229900001345 | Hoop, hose | |
| 24 | 60018586 | Hose GP, fuel | |
| 25 | 60064766 | Link bolt | |
| 26 | 60064764 | Shim | |
| 27 | 60064763 | Fuel coarse filter | |
| 28 | A210204000130 | Screw | |
| 29 | A210401000001 | Washer | |
| 30 | 60142853 | throttle guy assembly | |
| 31 | 12061846 | Bent plate | |
| 32 | 12063165 | Fixed frame | |
| 33 | 60149607 | Clamp, harness | |
| 34 | A210111000195 | Bolt | |
| 35 | A210111000343 | Bolt | |
| 36 | A210405000007 | Washer | |
| 37 | 60122059 | Bolt | |
| 38 | 12605188 | Sponge, sealing | |
| 39 | 12605190 | Sponge, sealing |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
