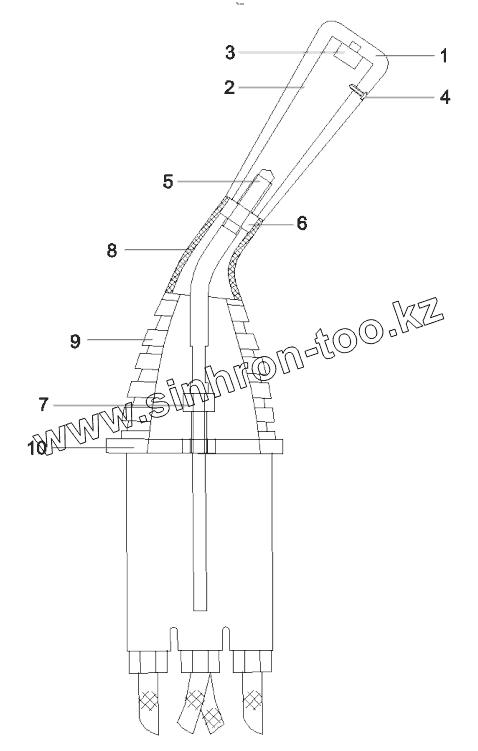

Позиция на иллюстрации	Заводской номер детали		Название детали
1	B229900001614		Joystick, right
2	60116344		Insertion piece
3	11742013		Harness, horn switch
4	A210264000022		Screw, self-tapping
5	11168674		Handle, grip
6	A210308000006		Nut
7	A210307000001		Nut
8	A229900006446		Hood
9	A229900001028		Hood
10	A229900001027		Plate
