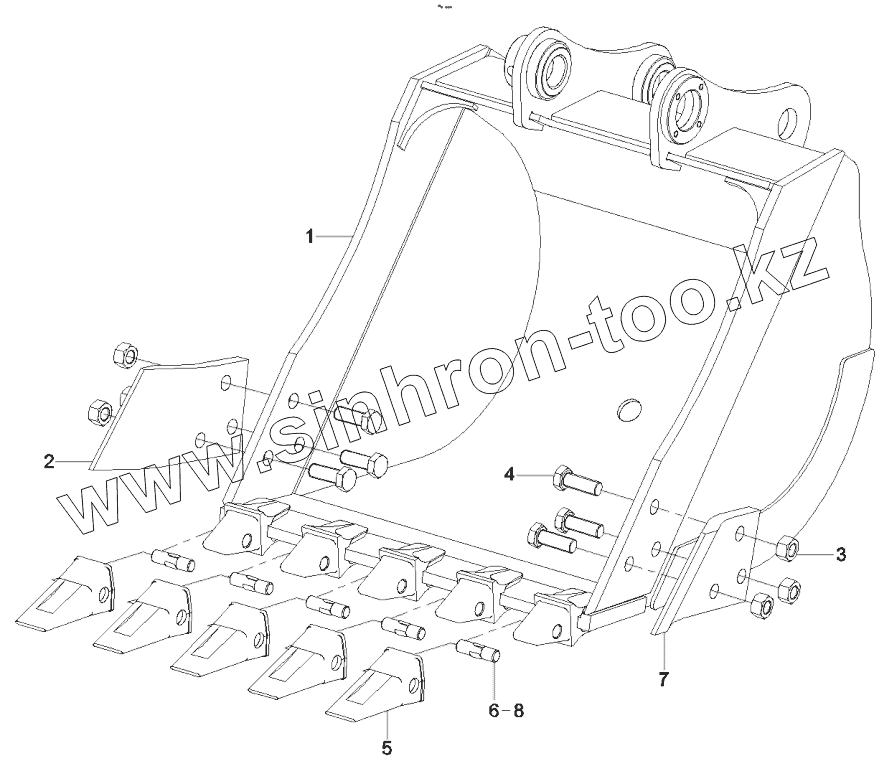

Каталог запасных частей к технике: SANY SY75C9I2H. 10468495 Bucket

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 12095406 Hydraulic Excavator SY75C9 12145569 Slewing device 12145569 Slewing device 12158796 Pipeline, pilot, hydraulic 12158796 Pipeline, pilot, hydraulic 60004100 Valve, foot 60004100 Valve, foot 60004100 Valve, foot B229900001009 Valve, pilot B220400000388 Valve, oil source control B229900000063 Filter, oil B229900003353 Valve, pilot, right 11168809 Joystick AS, right B229900003354 Valve, pilot, left 11168808 Joystick AS, left 11992301 Cab GP 12934780 Running control mechanism SY135C9.1.5.2 12049398 Seat and control cabinet 12168555 Support, bottom plate 11095397 7T Air conditioning system 60030339 Air conditioning system 60030339 Air conditioning system 60030339 Air conditioning system 60030991 Evaporator AS 12146141 Cover GP 10872465 Hood AS, engine, front 10872468 Panel GP, door, left 11234424 Bracket GP 11292833 Lock catch AS 11297512 Cover GP, rear 10872431 Panel GP, door, right 11297791 Counterweight GP 12158687 Pipeline, main, hydraulic 12158687 Pipeline, main, hydraulic B220301000569 Pump, plunger 12158635 Tank GP, hydraulic 60015195 Valve, main control 60015195 Valve, main control 60015195 Valve, main control 60015195 Valve, main control 60015195 Valve, main control 60015195 Valve, main control 60015195 Valve, main control 60015195 Valve, main control 60015195 Valve, main control 12151522 Power system 11097777 Air inlet system B222100000599 Air cleaner 12151506 Сooling system 60037353 Radiator 11919286 Fuel system 10866074 Tank GP, fuel 60064763 Filter, fuel (primary) A810102060135 Drive & damping system 10866413 Exhaust system B220200000094 Engine 60029665 Cover, valve mechanism 60029664 Cylinder Head 60029666 Cylinder block 60029666 Cylinder block 60029673 Oil pan & engine oil level gauge 60029670 Camshaft & valve mechanism 60029667 Crankshaft & piston & flywheel 60029671 Timing gearbox and flywheel housing 60029660 Manifold, inlet 60029661 Manifold, exhaust 60029644 Breather 60029643 Fuel injection system 60029662 Lines, fuel injection pump 60029663 Connecting parts, fuel injection pump 60029646 Pump, fuel injection 60029654 Regulator, Speed 60029654 Regulator, Speed 60029647 Pump, fuel priming (manual) 60029652 Coupling, fuel injection pump 60029648 Pump, water 60029656 Pipe, water (engine) 60029659 Thermostat 60029672 Fan & belt 60029645 Pump, engine oil 60029658 Lines, engine oil 60029651 Starting motor 60029650 Alternator 60029668 Lines, fuel 60029655 Bracket, idler gear 60029657 Bracket 60029649 Filter, engine oil 60029653 Separator, water & fuel 60029669 Fuel filter & bracket 10608118 Travel device 10608118 Travel device 10608118 Travel device 10608118 Travel device 11260095 Roller AS, track 11899729 Roller As, carrier A229900004501 Connector, central slewing 10475467 Work equipment 10475467 Work equipment 10475467 Work equipment A810201068291 Pipeline, work equipment AS 10468495 Bucket 12390359 Electrical system SY75C9.5C 12390237 Vehicle electrical assembly SY75C9.5C.4 12390225 Cab electrical assembly SY75C9.5C.1 12390213 Electrical assembly SY75C9.5C.1.3 10878001 Painting, excavator 10878001 Painting, excavator 10878001 Painting, excavator 11241923 Accessories 11241923 Accessories 1061107 9O-ring, undercarriage, SY60 10611083 O-ring, pilot pipeline, SY60 10611084 O-ring, mian pipeline 10611085 O-ring, work equipment, SY60 A810509000100 Tool, attached A290000000155 Toolbox, portable 60047136 Reducer GP 60184683 Plunger motor 60184683 Plunger motor 60184685 Reduction Gear 60182027 Reducer 60192265 Motor AS, hydraulic 60192265 Motor AS, hydraulic 60192265 Motor AS, hydraulic 60191906 Reducer GP,gear 60199324 Cylinder, bucket 6T 60199325 Cylinder, boom 6T 60199326 Cylinder, arm 6T 60199327 Cylinder, dozer blade 6T 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS 60128283 Cab AS Other Fittings

1

2

3

4

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1	10468494		Bucket body
2	A229900002159		Cutter, side
3	60012073		Nut
4	A210111000301		Screw
5	12076809		Tooth, bucket
6	12076815		Pin, bucket tooth
7	A229900007313		Cutter, side, right
8	12076820		Cover, tightening

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
