Каталог запасных частей к технике: SANY SY5320THB 470C-8S. A810201022063 Limit valve GP, rotary

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 12822498 SY5320THB 470C-8S Truck-mounted Concrete Pump 12550713 Boom 12550713 Boom 12550713 Boom 12554355 Hydraulic cylinder, в„–1 12554345 Hydraulic cylinder, в„–2 12554348 Hydraulic cylinder, в„–3 12554352 Hydraulic cylinder, в„–4 12554354 Hydraulic cylinder, в„–5 12745699 Tower, revolving 12745699 Tower, revolving 12745699 Tower, revolving 11646381 Turntable AS 11493496 Slewing mechanism A990303070000 Reducer GP A810102000105 Brake GP A810103000410 Reducer AS 60022996 Motor, cycloid 12639162 Outrigger, rear, right 12634395 Oil cylinder , outrigger, rear 11824009 Mounting, lock, outrigger, right A810302010036 Cylinder, spread, outrigger, rear 11141675 Mounting, encoder, turntable 11142524 Retainer 12637820 Outrigger, front, right 12634450 Oil cylinder, outrigger, front 10217326 Oil cylinder, telescopic, outrigger, front A810302010131 Oil cylinder, telescopic, outrigger, front 12637895 Outrigger, front, left A810302060096 Self-sealing device, port, oil intake, oil tank 12639161 Outrigger, rear, left 11824005 Mounting, lock, outrigger, left 11300603 Roller AS 12694474 Pumping system 12693164 Pumping mechanism 12686425 Cylinder, oil, main 12686425 Cylinder, oil, main 10628953 Drainage device 12595944 Head, piston 12784926 Support, water tank 12826476 Lubrication system 11660952 Hanger, hopper 12759825 Swing mechanism A810301060032 Cylinder, swing valve, left A810301060033 Cylinder, valve, swing, right 12207286 Hopper 10842799 Lamp, working 11694996 Articulated mechanism A810301050067 Mixing device A810301050067 Mixing device A810301050067 Mixing device A220501000080 Motor, plunger A810301032054 S-valve GP A810301032054 S-valve GP A810301032054 S-valve GP 11206195 Group, elbow, hinged 12746084 Base structure GP 12826365 Support, oil cylinder, main 12826366 Hanger, oil cylinder, main 12745055 Support, main 12755818 Chassis A810102040031 Shaft, driving A810103020022 Hanger, transfer case 11796493 Transfer case and oil pump GP B220301000165 Pump, plunger 10234443 Case, transfer 10234443 Case, transfer 12245377 Box body, combination B220304000083 Pump, plunger B229900000324 Valve, control 12211176 Hanger, oil pump 12755114 Platform and accessories A810406012907 Support, accumulator 11814186 Air valve and oil filling pipe GP 12825706 Hydraulic system 12563916 Hydraulic system, boom 12563916 Hydraulic system, boom 12826359 Cooling system 60160499 Motor, gear 12855220 Flushing system 11352544 Filter B220501000269 Motor, gear A220302000023 Pump, water 12827887 Pipeline, hydraulic, main system 12827887 Pipeline, hydraulic, main system 12631931 Valve GP, main 60059726 Valve, electromagnetic 11136884 Valve GP, control, oil cylinder 11737448 Valve, connecting, oil cylinder A810201020910 Pressure gauge valve group 12828050 Hydraulic system, mixing 12828050 Hydraulic system, mixing A810201021318 Valve GP, change A810201023032 Group, valve, auxiliary 60077982 Valve, solenoid 60077983 Valve, solenoid 12831484 Hydraulic system, swing cylinder 12831484 Hydraulic system, swing cylinder B229900003708 Accumulator 12635993 swing valve GP 60059727 Valve, solenoid 12772657 Hydraulic system, outrigger 12772657 Hydraulic system, outrigger 10984687 Wheel, guide 60031865 Disc, bobbing 60031864 Disc, bobbing 12768252 Valve GP, control, outrigger 12283755 Operation box, outrigger, four-handle 12828047 Pipeline, hydraulic, revolving tower 12828047 Pipeline, hydraulic, revolving tower B220400000377 Valve, multiway, five-section boom 12343139 Limit valve AS A810201022063 Limit valve GP, rotary 12552172 Atiswing valve group 12343138 Rotary balance valve assembly 12759787 Electrical system 12759787 Electrical system 12759787 Electrical system 12759787 Electrical system A810201202157 Box, operation, small 12725557 Harness GP 12725557 Harness GP 12726663 Electric control cabinet GP 12562604 Remote controller GP 60198956 Controller, remote A810201052590 Appliance, electric, cab 12822848 Electric control cabinet GP 60076986 Box, distribution, power, central 10510817 Box, operation, outrigger 12758525 Box, operation, maintenance 11062993 Harness fastening GP 11053595 Tilting angle sensor GP 12630723 Limit switch GP, X-outrigger 11058651 Switch GP, transfer case 11502460 Liquid level sensor GP 11053320 Temperature sensor GP 11744789 Sensor, temperature 11053370 Liquid level sensor GP 12670870 Proximity switch GP, oil cylinder 12592440 Proximity switch GP, oil cylinder 11055736 Switch GP 12726575 Sensor GP, shock absorbing system, boom 12823243 Lamp GP 12726509 Sensor GP, pressure, shock absorbing system, boom 11053609 Limit switch GP, boom 11502561 Sensor GP, pressure, energy efficiency 12775476 Harness GP, chassis 12576098 Horn GP 11053304 Mechanic encoder GP 12550395 Piping, oil 12702423 Piping GP 11362390 Mounting, support 11473163 Support, double 10819210 Support, double A810301990067 Support, single 11710350 Support, single 12550394 Piping, boom

1

1

2

3

4

5

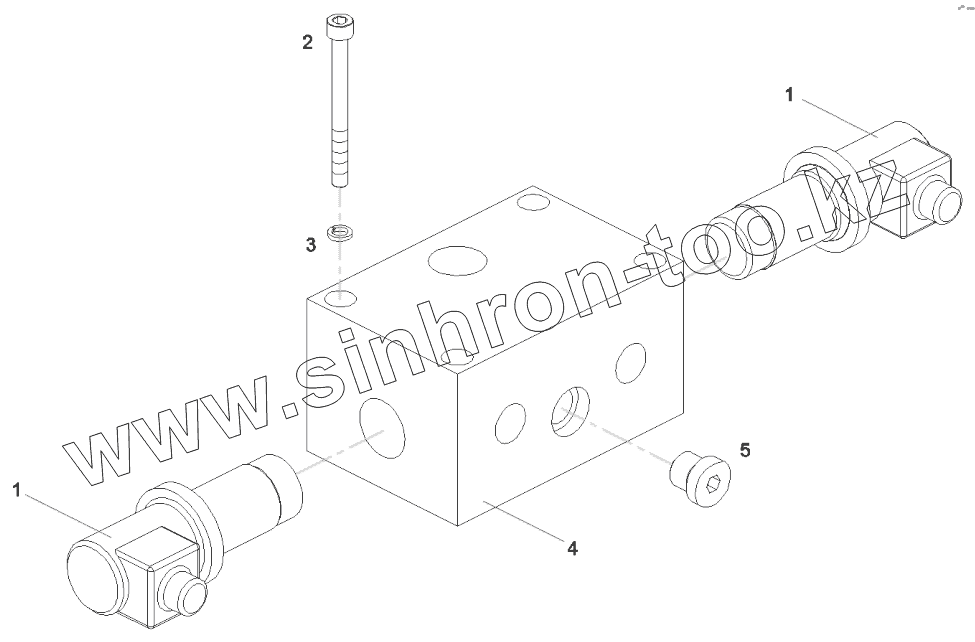

Позиция на иллюстрации	Заводской номер детали		Название детали
1	B220401000537		Electromagnetic steering valve SBV11-12-C-O-24DG-00
2	A210204000140		Screw
3	A210401000016		Washer
4	A820103010443		Limit valve body
5	B210780000201		Screw plug, VSTI14x1.5EDA3C

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
