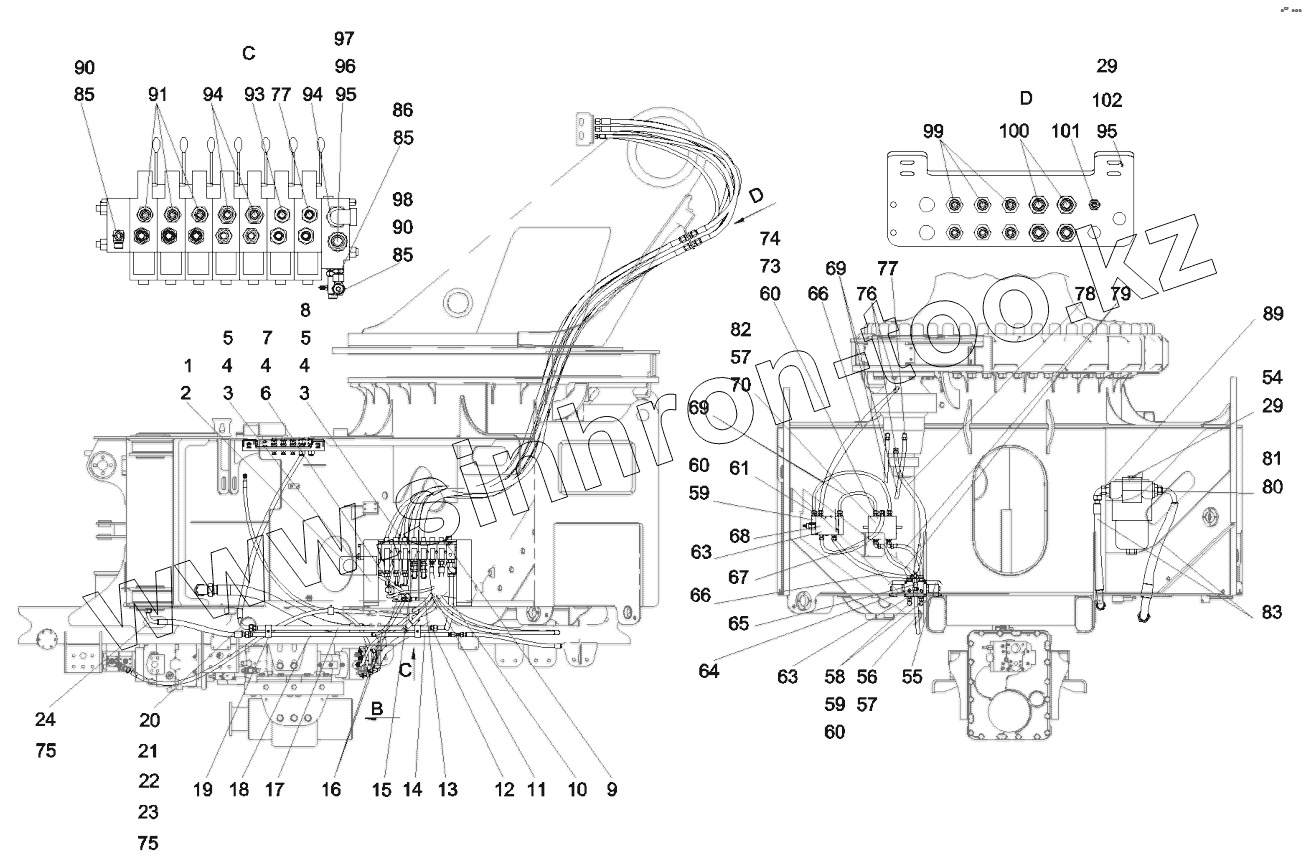

Каталог запасных частей к технике: SANY SY5320THB 470C-8S. 12828047 Pipeline, hydraulic, revolving tower
1
2
3
3
4
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
29
29
54
55
56
57
57
58
59
59
60
60
60
61
63
63
64
65
66
66
67
68
69
69
70
73
74
75
75
76
77
77
78
79
80
81
82
83
85
85
85
86
89
90
90
91
93
94
94
95
95
96
97
98
99
100
101
102
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 12827216 | Plate, mounting, pressure gauge | |
| 2 | B250202000006 | Gauge, pressure | |
| 3 | A210204000162 | Screw | |
| 4 | A210401000017 | Washer | |
| 5 | A210405000007 | Washer | |
| 6 | A810201020910 | Pressure gauge valve group | |
| 7 | A210204000146 | Screw, M8x16 GB70.1 | |
| 8 | A210307000012 | Nut | |
| 9 | 12711731 | Board, indication | |
| 10 | B230103003978 | Hose, rubber | |
| 11 | B230103007360 | Pipe, pressure measuring | |
| 12 | B230101000273 | O-ring | |
| 13 | 60019596 | Hose, rubber | |
| 14 | 60014675 | Body, pipe clamp | |
| 15 | B220400000377 | Valve, multiway, five-section boom | |
| 16 | B230103003967 | Hose, rubber | |
| 17 | 12840744 | Pipe, oil | |
| 18 | 12829069 | Pipe, oil | |
| 19 | 60014674 | Body, pipe clamp | |
| 20 | B230103003513 | Hose, rubber | |
| 21 | 60025953 | Hose, rubber | |
| 22 | B210780000157 | Connector, pipe | |
| 23 | B210780001310 | Connector, hose, EW18LOMDA3C | |
| 24 | B230103000383 | Hose, rubber, 2SN16-DKOL-DKOL90-350Q/SY1102 | |
| 29 | A210401000002 | Washer | |
| 54 | A210111000038 | Bolt | |
| 55 | 11930470 | Cover, protective | |
| 56 | B230103003863 | Hose, rubber | |
| 57 | B210780000016 | Connector, hose, EL12LOMDA3C | |
| 58 | 21018229 | Hose, rubber | |
| 59 | A210204000141 | Screw | |
| 60 | A210401000016 | Washer | |
| 61 | B210780000037 | Connector, hose, GE12LMEDOMDA3C | |
| 63 | B210780000024 | Connector, hose, EW12LOMDA3C | |
| 64 | 12343139 | Limit valve AS | |
| 65 | B210780000019 | Connector, pipe | |
| 66 | 60101298 | Hose, rubber | |
| 67 | B230103003865 | Hose, rubber | |
| 68 | 12552172 | Atiswing valve group | |
| 69 | 60101296 | Hose, rubber | |
| 70 | 12343138 | Rotary balance valve assembly | |
| 73 | A210204000138 | Screw | |
| 74 | A210405000006 | Washer | |
| 75 | B210780000131 | Connector, hose, GE18LMEDOMDA3C | |
| 76 | B210780000847 | Connector, hose, GE12LR1/4EDOMDA3C | |
| 77 | B210780000179 | Connector, hose, GE12LR1/2EDOMDA3C | |
| 78 | 60156800 | Hose, rubber | |
| 79 | 60211065 | Hose, rubber | |
| 80 | 60187669 | Filter, oil, high-pressure | |
| 81 | A820205001800 | Connector, pipe, oil filter | |
| 82 | B210399000002 | Screw plug, VSTI16x1.5EDA3C | |
| 83 | 60211068 | Hose, rubber | |
| 85 | B210780000733 | Connector, hose, GE10LREDOMDA3C | |
| 86 | B210780000636 | Connector, hose, EW10LOMDA3C | |
| 89 | B210780000029 | Connector, pipe | |
| 90 | B210780000015 | Connector, hose, EL10LOMDA3C | |
| 91 | B210780000209 | Connector, pipe | |
| 93 | B210780001307 | Connector | |
| 94 | B210780000048 | Connector, pipe | |
| 95 | A210405000001 | Washer | |
| 96 | B220400000213 | Valve, one-way | |
| 97 | B210780000184 | Connector, hose, GE18LR3/4EDOMDA3C | |
| 98 | B210780001748 | Connector, pressure measuring | |
| 99 | B210780000655 | Connector, pipe | |
| 100 | B210780000996 | Connector, pipe | |
| 101 | B210780000647 | Connector, pipe | |
| 102 | A210111000039 | Bolt |
