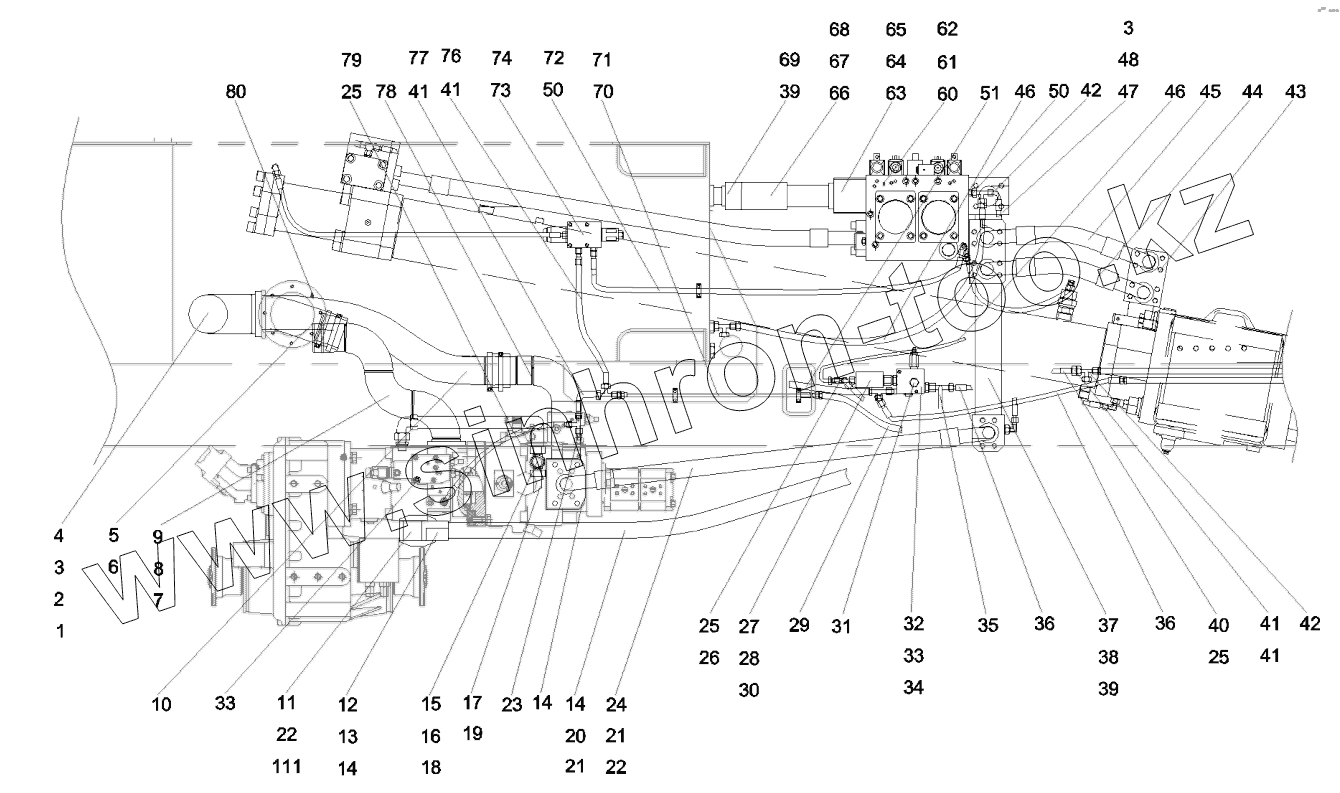

Каталог запасных частей к технике: SANY SY5320THB 470C-8S. 12827887 Pipeline, hydraulic, main system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
21
22
22
23
24
25
25
25
26
27
28
29
30
31
32
33
33
34
35
36
36
37
38
39
39
40
41
41
41
41
42
42
43
44
45
46
46
47
48
50
50
51
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
76
77
78
79
80
111
Позиция на иллюстрации Заводской номер детали Название детали
1 12827522 Pipe, oil intake, main
2 A820606020349 Plate, rubber
3 A210204000203 Screw
4 A210401000004 Washer
5 10796885 Hose, rubber, oil, suction
6 A229900001659 Hoop, T-type
7 12827514 Pipe, steel, oil inlet, main pump
8 A210111000112 Bolt
9 A820606020010 Plate, rubber
10 10932914 Hose, rubber, oil suction
11 A820205001923 Plug, screw
12 11699665 Flange, oil outlet, pump
13 A210204000232 Screw
14 B230101000244 O-ring
15 B210780000052 Connector, pipe
16 B210780001225 Connector, pipe
17 B210780000838 Connector, pipe
18 B230103000410 Hose, rubber
19 B230103001497 Hose, rubber
20 60211087 Hose, rubber
21 B210780000005 Flange, SAE
22 21005036 Screw
23 A820205001372 Body, connector
24 60211088 Hose, rubber
25 B210780000015 Connector, hose, EL10LOMDA3C
26 60185722 Connector, filter
27 A220401000753 Valve, ball
28 B210780000012 Connector, pipe
29 B230103004190 Hose
30 A229900002434 Connector, straight-through
31 11036715 Pipe, drainage, waterproof
32 60056959 Valve, waterproof
33 B210780001749 Connector, pressure measuring, SKK20-M12x1.5-PC
34 A210204000138 Screw
35 60019596 Hose, rubber
36 B230103003933 Hose, rubber
37 11736244 Pipe, steel, oil inlet, main valve
38 60118458 Screw
39 A210609000134 O-ring
40 60156805 Hose, rubber
41 B210780000683 Connector, pipe
42 B210780000016 Connector, hose, EL12LOMDA3C
43 A210204000312 Screw
44 60211085 Hose, rubber
45 60211084 Hose, rubber
46 B230103003967 Hose, rubber
47 11706283 Plate, cover, oil inlet flange
48 A210609000131 O-ring
50 B210780000232 Connector, hose, GE12LM14x1.5EDOMDA3C
51 B230103003916 Hose, rubber
60 12631931 Valve GP, main
61 A210204000158 Screw
62 B210780000036 Connector, pipe
63 A210204000031 Screw
64 12617778 Flange, oil return, main valve
65 A210401000002 Washer
66 60211050 Hose, rubber
67 A210204000022 Screw
68 60024155 Flange, SAE
69 A210204000023 Screw
70 12757687 Pipe, oil
71 60014673 Body, clamp
72 B230103006043 Hose, rubber
73 A210204000141 Screw
74 11136884 Valve GP, control, oil cylinder
76 B230103007726 Hose, rubber
77 B230103003876 Hose, rubber
78 12827518 Pipe, steel, oil inlet, main pump
79 B230103003875 Hose, rubber
80 A210204000337 Screw
111 A210609000060 O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
