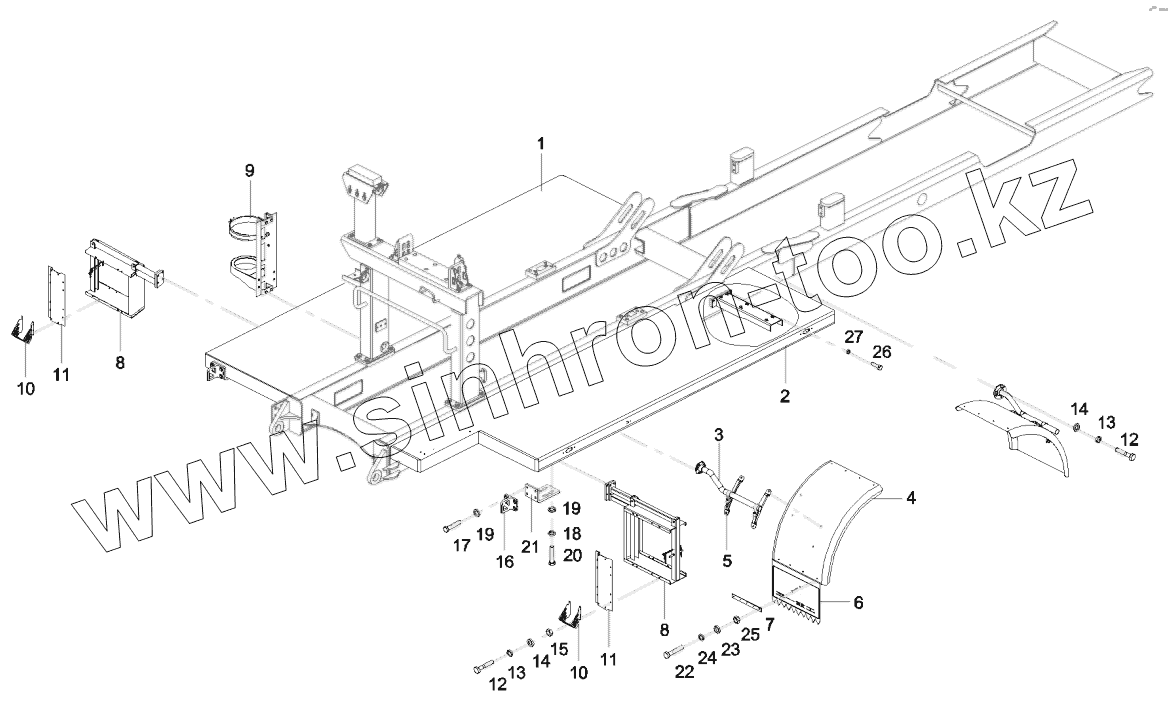

Каталог запасных частей к технике: SANY SY5320THB 470C-8S. 12755114 Platform and accessories
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
12822498 SY5320THB 470C-8S Truck-mounted Concrete Pump
12550713 Boom
12550713 Boom
12550713 Boom
12554355 Hydraulic cylinder, в„–1
12554345 Hydraulic cylinder, в„–2
12554348 Hydraulic cylinder, в„–3
12554352 Hydraulic cylinder, в„–4
12554354 Hydraulic cylinder, в„–5
12745699 Tower, revolving
12745699 Tower, revolving
12745699 Tower, revolving
11646381 Turntable AS
11493496 Slewing mechanism
A990303070000 Reducer GP
A810102000105 Brake GP
A810103000410 Reducer AS
60022996 Motor, cycloid
12639162 Outrigger, rear, right
12634395 Oil cylinder , outrigger, rear
11824009 Mounting, lock, outrigger, right
A810302010036 Cylinder, spread, outrigger, rear
11141675 Mounting, encoder, turntable
11142524 Retainer
12637820 Outrigger, front, right
12634450 Oil cylinder, outrigger, front
10217326 Oil cylinder, telescopic, outrigger, front
A810302010131 Oil cylinder, telescopic, outrigger, front
12637895 Outrigger, front, left
A810302060096 Self-sealing device, port, oil intake, oil tank
12639161 Outrigger, rear, left
11824005 Mounting, lock, outrigger, left
11300603 Roller AS
12694474 Pumping system
12693164 Pumping mechanism
12686425 Cylinder, oil, main
12686425 Cylinder, oil, main
10628953 Drainage device
12595944 Head, piston
12784926 Support, water tank
12826476 Lubrication system
11660952 Hanger, hopper
12759825 Swing mechanism
A810301060032 Cylinder, swing valve, left
A810301060033 Cylinder, valve, swing, right
12207286 Hopper
10842799 Lamp, working
11694996 Articulated mechanism
A810301050067 Mixing device
A810301050067 Mixing device
A810301050067 Mixing device
A220501000080 Motor, plunger
A810301032054 S-valve GP
A810301032054 S-valve GP
A810301032054 S-valve GP
11206195 Group, elbow, hinged
12746084 Base structure GP
12826365 Support, oil cylinder, main
12826366 Hanger, oil cylinder, main
12745055 Support, main
12755818 Chassis
A810102040031 Shaft, driving
A810103020022 Hanger, transfer case
11796493 Transfer case and oil pump GP
B220301000165 Pump, plunger
10234443 Case, transfer
10234443 Case, transfer
12245377 Box body, combination
B220304000083 Pump, plunger
B229900000324 Valve, control
12211176 Hanger, oil pump
12755114 Platform and accessories
A810406012907 Support, accumulator
11814186 Air valve and oil filling pipe GP
12825706 Hydraulic system
12563916 Hydraulic system, boom
12563916 Hydraulic system, boom
12826359 Cooling system
60160499 Motor, gear
12855220 Flushing system
11352544 Filter
B220501000269 Motor, gear
A220302000023 Pump, water
12827887 Pipeline, hydraulic, main system
12827887 Pipeline, hydraulic, main system
12631931 Valve GP, main
60059726 Valve, electromagnetic
11136884 Valve GP, control, oil cylinder
11737448 Valve, connecting, oil cylinder
A810201020910 Pressure gauge valve group
12828050 Hydraulic system, mixing
12828050 Hydraulic system, mixing
A810201021318 Valve GP, change
A810201023032 Group, valve, auxiliary
60077982 Valve, solenoid
60077983 Valve, solenoid
12831484 Hydraulic system, swing cylinder
12831484 Hydraulic system, swing cylinder
B229900003708 Accumulator
12635993 swing valve GP
60059727 Valve, solenoid
12772657 Hydraulic system, outrigger
12772657 Hydraulic system, outrigger
10984687 Wheel, guide
60031865 Disc, bobbing
60031864 Disc, bobbing
12768252 Valve GP, control, outrigger
12283755 Operation box, outrigger, four-handle
12828047 Pipeline, hydraulic, revolving tower
12828047 Pipeline, hydraulic, revolving tower
B220400000377 Valve, multiway, five-section boom
12343139 Limit valve AS
A810201022063 Limit valve GP, rotary
12552172 Atiswing valve group
12343138 Rotary balance valve assembly
12759787 Electrical system
12759787 Electrical system
12759787 Electrical system
12759787 Electrical system
A810201202157 Box, operation, small
12725557 Harness GP
12725557 Harness GP
12726663 Electric control cabinet GP
12562604 Remote controller GP
60198956 Controller, remote
A810201052590 Appliance, electric, cab
12822848 Electric control cabinet GP
60076986 Box, distribution, power, central
10510817 Box, operation, outrigger
12758525 Box, operation, maintenance
11062993 Harness fastening GP
11053595 Tilting angle sensor GP
12630723 Limit switch GP, X-outrigger
11058651 Switch GP, transfer case
11502460 Liquid level sensor GP
11053320 Temperature sensor GP
11744789 Sensor, temperature
11053370 Liquid level sensor GP
12670870 Proximity switch GP, oil cylinder
12592440 Proximity switch GP, oil cylinder
11055736 Switch GP
12726575 Sensor GP, shock absorbing system, boom
12823243 Lamp GP
12726509 Sensor GP, pressure, shock absorbing system, boom
11053609 Limit switch GP, boom
11502561 Sensor GP, pressure, energy efficiency
12775476 Harness GP, chassis
12576098 Horn GP
11053304 Mechanic encoder GP
12550395 Piping, oil
12702423 Piping GP
11362390 Mounting, support
11473163 Support, double
10819210 Support, double
A810301990067 Support, single
11710350 Support, single
12550394 Piping, boom
1
2
3
4
5
6
7
8
8
9
10
10
11
11
12
12
13
13
14
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
Позиция на иллюстрации
Заводской номер детали
Название детали
1
12689979
Platform, left
2
12690423
Platform, right
3
60063102
Support, mudguard
4
60000959
Mudguard, tyre
5
A229900007244
Adjusting pressure plate, mudguard
6
60024662
Mudguard, rear
7
A820101311280
Plate, strip, trim
8
10672496
Box, plate, backup
9
A810406012907
Support, accumulator
10
A810599001331
Box, chock
11
10672507
Chock
12
A210111000011
Bolt
13
A210401000001
Washer
14
A210405000011
Washer
15
A210307000017
Nut
16
11763657
Plate, lock, steel, stainless
17
A313041602516
Screw
18
A210401000004
Washer
19
A210405000003
Washer
20
A210111000229
Bolt
21
11757792
Plate, connecting, lock plate
22
A210111000090
Bolt
23
A210405000007
Washer
24
A210401000017
Washer
25
A210307000013
Nut
26
A210111000199
Bolt
27
A210433000019
Washer
