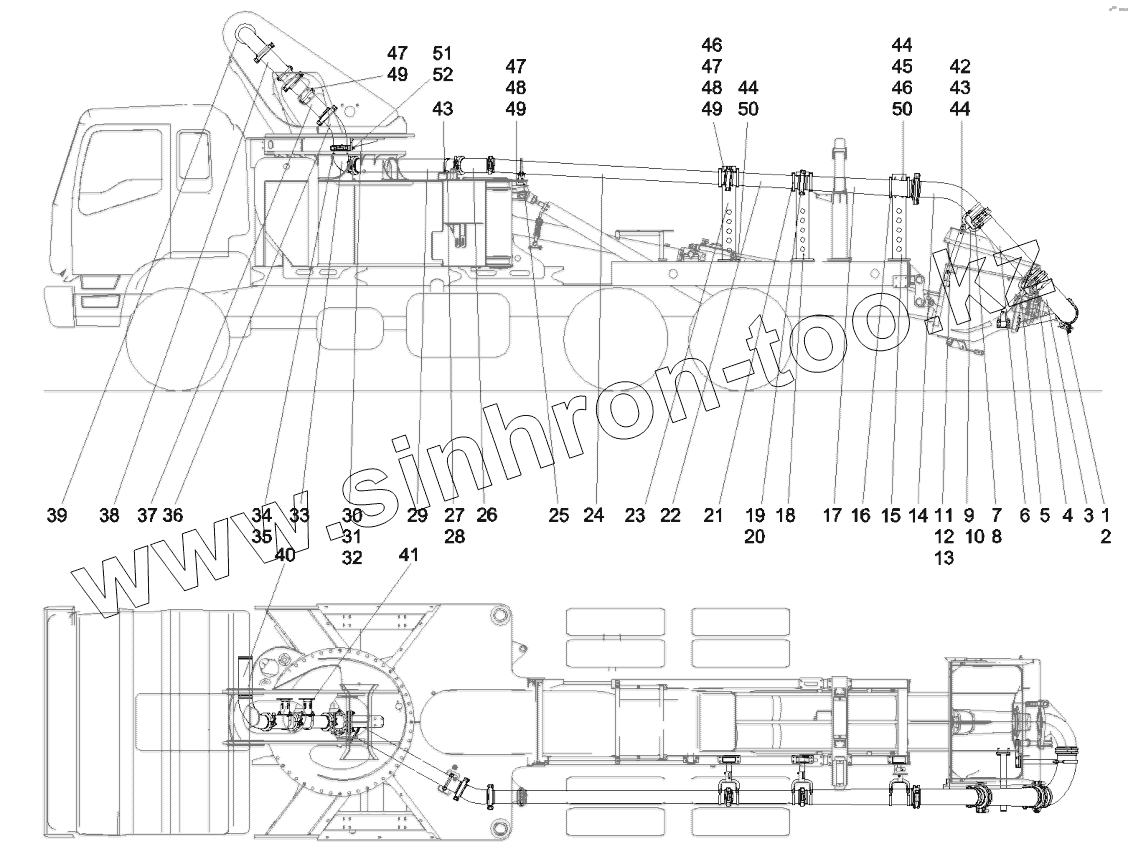

Каталог запасных частей к технике: SANY SY5320THB 470C-8S. 12702423 Piping GP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
44
44
44
45
46
46
47
47
47
48
48
49
49
49
50
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 12068400 | Clamp body | |
| 2 | 12579712 | 175-ring, seal | |
| 3 | 11204463 | Elbow | |
| 4 | 12787533 | Clamp | |
| 5 | 11362390 | Mounting, support | |
| 6 | A810301010468 | Pipe, taper | |
| 7 | A810301010927 | Clamp | |
| 8 | A820606030048 | Ring, rubber, sealing | |
| 9 | 10949235 | Seat, bent, upper | |
| 10 | A810301010126 | U-bolt | |
| 11 | 11699917 | Rod, connection | |
| 12 | 12026023 | Support AS | |
| 13 | 11840956 | Cover, plug | |
| 14 | A810301010185 | Elbow | |
| 15 | 10983490 | Seat, supporting | |
| 16 | 11473163 | Support, double | |
| 17 | 12391137 | Pipe, taper, compound | |
| 18 | 12747734 | Seat, supporting | |
| 19 | A810301010722 | Clamp | |
| 20 | A820606030049 | Seal, ring | |
| 21 | 10819210 | Support, double | |
| 22 | 11851547 | Tube, straight, 133 generation-V | |
| 23 | 10983506 | Seat, supporting | |
| 24 | 11854273 | Tube, straight, 133 generation-V | |
| 25 | A810301990067 | Support, single | |
| 26 | 11669747 | Bend,composite | |
| 27 | A810301010996 | U-bolt | |
| 28 | A820699000291 | Plate, backup, small | |
| 29 | 11852537 | Tube, straight, 133 generation-V | |
| 30 | 11795383 | Support | |
| 31 | A210204000348 | Screw | |
| 32 | A210491000132 | Washer | |
| 33 | 10901859 | Elbow, compound | |
| 34 | A820699000293 | Plate, backup, large | |
| 35 | 10972967 | Clamp, fixed, revolving tower | |
| 36 | 10455165 | Tube, straight, double-bend | |
| 37 | 11849409 | Tube, straight, 133 generation-V | |
| 38 | 11848646 | Tube, straight, 133 generation-V | |
| 39 | 11405101 | Round support, adjusting | |
| 40 | A810301010131 | Elbow | |
| 41 | 11710350 | Support, single | |
| 42 | A210111000056 | Bolt | |
| 43 | A210307000028 | Nut | |
| 44 | A210405000003 | Washer | |
| 45 | A210111000101 | Bolt | |
| 46 | A210405000001 | Washer | |
| 47 | A210111000204 | Bolt | |
| 48 | A210307000031 | Nut | |
| 49 | A820101360900 | Washer, medium-size | |
| 50 | A210111000212 | Bolt | |
| 51 | A210111000055 | Bolt | |
| 52 | A210315000001 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
