  5. 12563916 Hydraulic system, boom

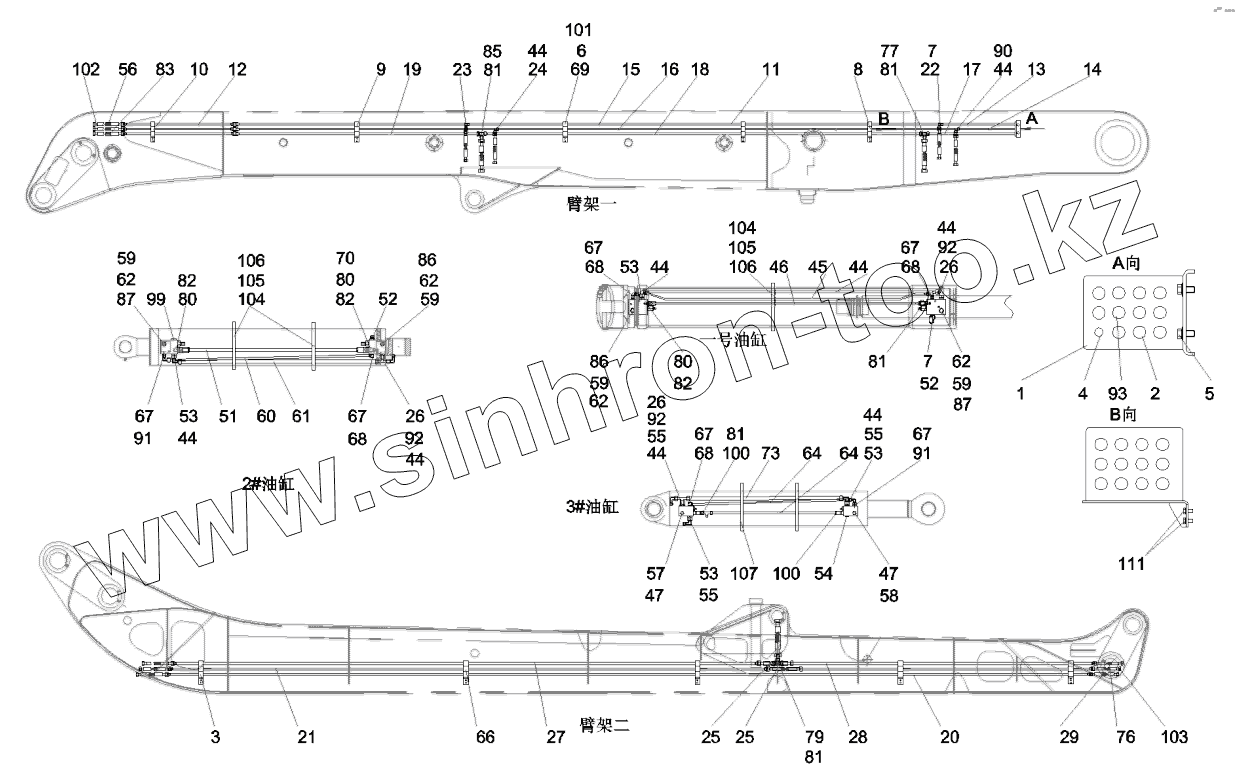

Каталог запасных частей к технике: SANY SY5320THB 470C-8S. 12563916 Hydraulic system, boom

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
26
26
27
28
29
44
44
44
44
44
44
44
44
44
45
46
47
47
51
52
52
53
53
53
53
54
55
55
55
56
57
58
59
59
59
59
60
61
62
62
62
62
64
64
66
67
67
67
67
67
67
68
68
68
68
69
70
73
76
77
79
80
80
80
81
81
81
81
81
82
82
82
83
85
86
86
87
87
90
91
91
92
92
92
93
99
100
100
101
102
103
104
104
105
105
106
106
107
111
Позиция на иллюстрации Заводской номер детали Название детали
1 11701409 Plate, connector, overlying piping, 12-hole
2 B210780000655 Connector, pipe
3 11514258 Rail, guide, 3-comb clamp
4 B210780000647 Connector, pipe
5 A313041602516 Screw
6 11514259 Rail, guide, 4-comb clamp
7 B210780001153 Connector, pipe
8 A229900007235 Screw
9 A210204000182 Screw
10 A210204000132 Screw
11 12841207 Pipe, oil
12 12841209 Pipe, oil
13 12841211 Pipe, oil
14 12841213 Pipe, oil
15 12841215 Pipe, oil
16 12841217 Pipe, oil
17 12841219 Pipe, oil
18 12841221 Pipe, oil
19 12841223 Pipe, oil
20 12841225 Pipe, oil
21 12841227 Pipe, oil
22 60008253 Hose, rubber
23 B230103006727 Hose, rubber
24 60119876 Hose, rubber
25 B230103003885 Hose, rubber
26 B210780000020 Connector, pipe
27 12841229 Pipe, oil
28 12841231 Pipe, oil
29 B230103003882 Hose, rubber
44 B210780000736 Connector, pipe
45 12841241 Pipe, oil
46 12841243 Pipe, oil
47 60159754 Valve, balanced
51 12735250 Pipe, oil
52 B210780000047 Connector, pipe
53 A820205000223 Connector, pipe
54 B210399000002 Screw plug, VSTI16x1.5EDA3C
55 B230101000375 O-ring
56 B230103000155 Hose, rubber
57 60061671 valve, damper, one-way
58 60061670 valve, damper, one-way
59 60051667 valve, damper, one-way
60 12731682 Pipe, oil
61 12731798 Pipe, oil
62 B230101001214 O-ring
64 12732041 Pipe, oil
66 60028239 Body, pipe clamp
67 B210780000024 Connector, hose, EW12LOMDA3C
68 B210780000037 Connector, hose, GE12LMEDOMDA3C
69 60014673 Body, clamp
70 B210780000631 Connector, hose, ET10LOMDA3C
73 12738694 Pipe, oil
76 60156802 Hose, rubber
77 60210214 Hose, rubber
79 B230103000484 Hose, rubber
80 B210780000036 Connector, pipe
81 B210780000015 Connector, hose, EL10LOMDA3C
82 B210780000636 Connector, hose, EW10LOMDA3C
83 B230103000444 Hose, rubber
85 B230103000441 Hose, rubber
86 60051668 Valve, balanced
87 60051669 Valve, balanced
90 60209227 Hose, rubber
91 60186836 Connector, filter
92 60186837 Connector, filter
93 B210780000996 Connector, pipe
99 B210780000799 Screw plug, VSTI27x2EDA3C
100 B210780000177 Connector, hose, GE10LR3/8EDOMDA3C
101 60014663 Plate, welding, clamp
102 11805685 Sleeve, protective, rubber hose, plastic
103 11805686 Sleeve, protective, rubber hose, plastic
104 60196988 Hoop
105 12638409 Clamp
106 12638380 Clamp
107 60196987 Hoop
111 A210204000242 Screw
