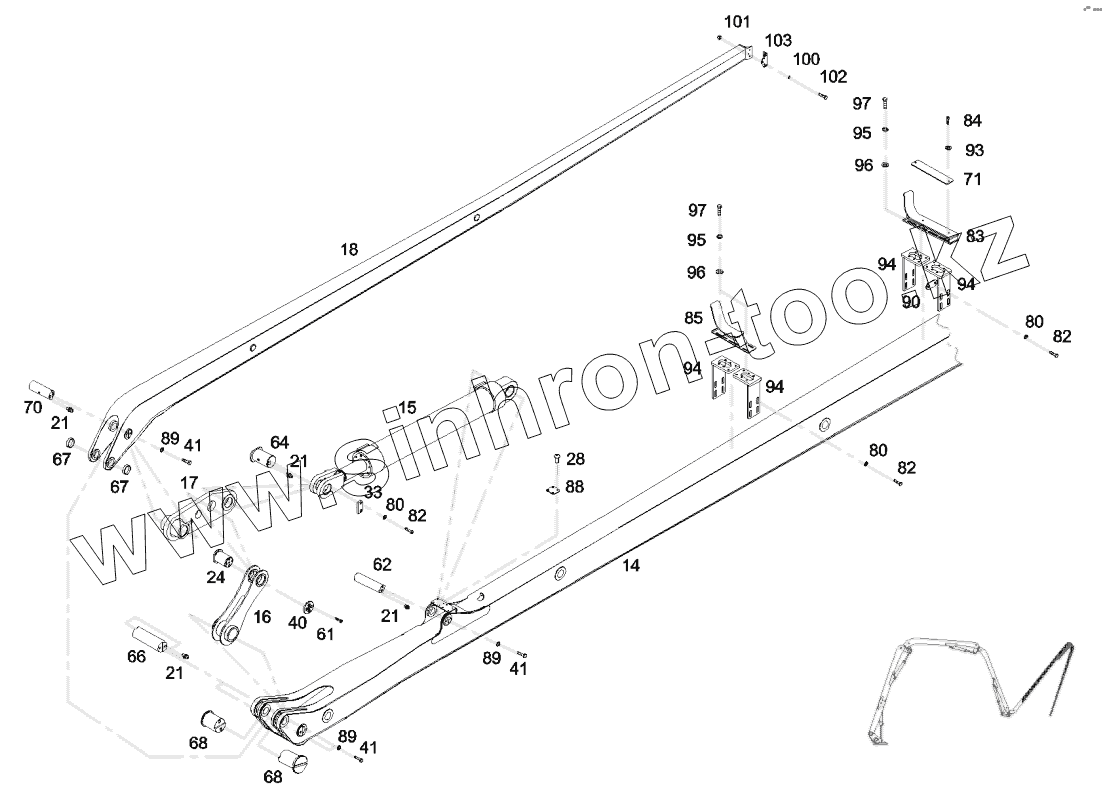

Каталог запасных частей к технике: SANY SY5320THB 470C-8S. 12550713 Boom
14
15
16
17
18
21
21
21
21
24
28
33
40
41
41
41
61
62
64
66
67
67
68
68
70
71
80
80
80
82
82
82
83
84
85
88
89
89
89
90
93
94
94
94
94
95
95
96
96
97
97
100
101
102
103
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 14 | 11994226 | Boom | |
| 15 | 12554354 | Hydraulic cylinder | |
| 16 | 12825343 | Connecting | |
| 17 | 12825344 | Connecting | |
| 18 | 12550360 | Boom | |
| 21 | A210804000001 | Nipple, grease | |
| 24 | 11998830 | Shaft | |
| 28 | 11670681 | Screw, fixed | |
| 33 | A820101213628 | Baffle | |
| 40 | A820101063491 | Baffle | |
| 41 | A210111000212 | Bolt | |
| 61 | 60206324 | Screw | |
| 62 | 11681845 | Shaft | |
| 64 | 11998829 | Shaft | |
| 66 | 11998827 | Shaft | |
| 67 | A820208000148 | Bearing | |
| 68 | 11681847 | Shaft | |
| 70 | 11998828 | Shaft | |
| 71 | 11156002 | Pad, buffer | |
| 80 | A210405000001 | Washer | |
| 82 | A210204000167 | Screw | |
| 83 | 12722880 | Support AS | |
| 84 | 60140588 | screw | |
| 85 | 11696026 | Support, hose | |
| 88 | 12276778 | Pad, buffer | |
| 89 | A210405000003 | Washer | |
| 90 | 11699880 | Pad, adjusting | |
| 93 | A210405000011 | Washer | |
| 94 | 11700745 | Seat | |
| 95 | A210401000017 | Washer | |
| 96 | A210404000005 | Washer | |
| 97 | A210111000088 | Bolt | |
| 100 | A210401000004 | Washer | |
| 101 | A210307000028 | Nut | |
| 102 | A210111000053 | Bolt | |
| 103 | 11665464 | Seat,bent tube,tail |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
