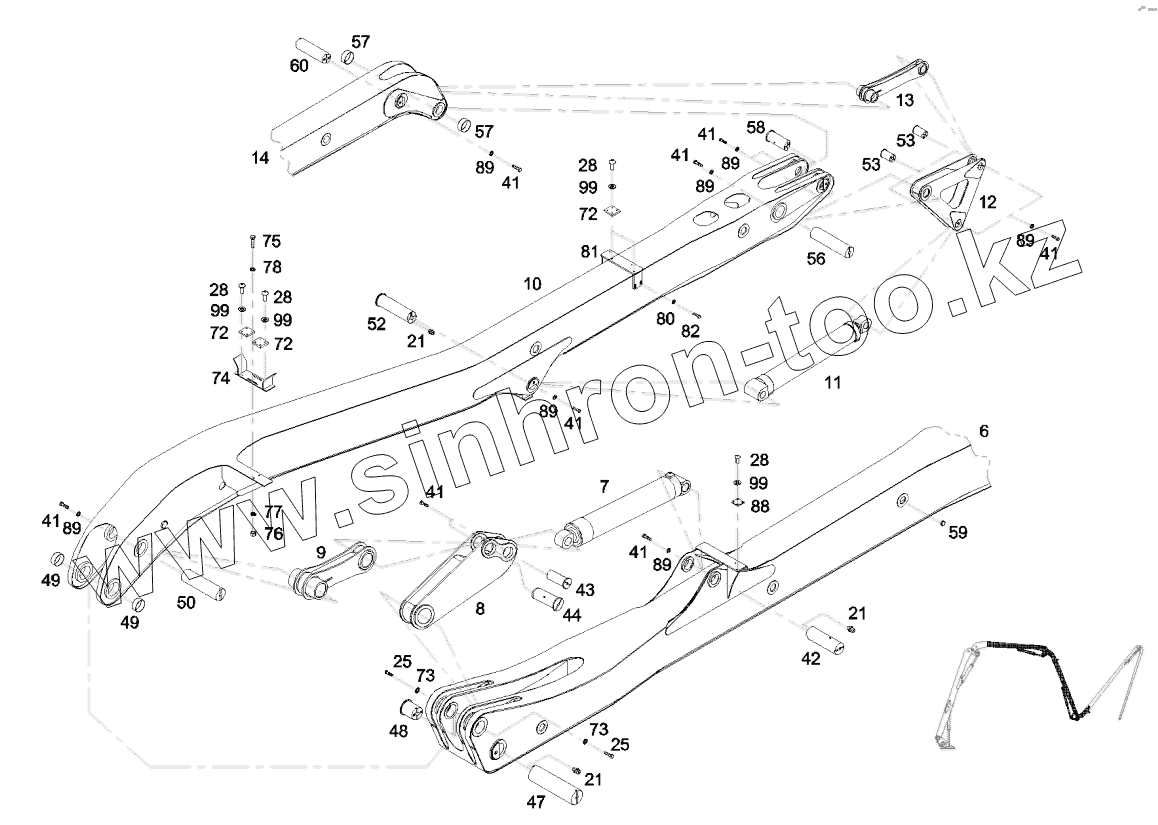

Каталог запасных частей к технике: SANY SY5320THB 470C-8S. 12550713 Boom
6
7
8
9
10
11
12
13
14
21
21
21
25
25
28
28
28
28
41
41
41
41
41
41
41
41
42
43
44
47
48
49
49
50
52
53
53
56
57
57
58
59
60
72
72
72
73
73
74
75
76
77
78
80
81
82
88
89
89
89
89
89
89
89
99
99
99
99
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 6 | 11682860 | Boom | |
| 7 | 12554348 | Hydraulic cylinder | |
| 8 | 12825347 | Connecting | |
| 9 | 12825348 | Connecting | |
| 10 | 11997900 | Boom | |
| 11 | 12554352 | Hydraulic cylinder | |
| 12 | 12825341 | Connecting | |
| 13 | 12825342 | Connecting | |
| 14 | 11994226 | Boom | |
| 21 | A210804000001 | Nipple, grease | |
| 25 | A210111000220 | Bolt | |
| 28 | 11670681 | Screw, fixed | |
| 41 | A210111000212 | Bolt | |
| 42 | 11681869 | Shaft | |
| 43 | 11681827 | Shaft | |
| 44 | 11681863 | Shaft | |
| 47 | 10900997 | Shaft | |
| 48 | 11681870 | Shaft | |
| 49 | A820208000442 | Bearing | |
| 50 | 11681828 | Shaft | |
| 52 | 11681829 | Shaft | |
| 53 | 11681844 | Shaft | |
| 56 | 11150566 | Shaft | |
| 57 | A820208000443 | Bearing | |
| 58 | 11998826 | Shaft | |
| 59 | A820606020232 | Cover, plug | |
| 60 | 10880413 | Shaft | |
| 72 | 12742061 | Pad, buffer | |
| 73 | A210405000008 | Washer | |
| 74 | 11670868 | Support, buffer | |
| 75 | A210111000023 | Bolt | |
| 76 | A210319000001 | Nut | |
| 77 | 24002389 | Washer | |
| 78 | A210404000003 | Washer | |
| 80 | A210405000001 | Washer | |
| 81 | 11670871 | Support, buffer | |
| 82 | A210204000167 | Screw | |
| 88 | 12276778 | Pad, buffer | |
| 89 | A210405000003 | Washer | |
| 99 | A210405000007 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
