Каталог запасных частей к технике: SANY SY5250GJB6C. A810422001520 Feeding/unloading device

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 11701309 SY5250GJB6C Concrete Mixer Truck 11044328 Cargo vehicle chassis body 10182010 Cab GP A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900008546 Cab assembly A229900005118 Lifter GP. electric, left A229900005119 Lifter GP. electric, right A249900001094 Box. distribution, power, central. 32 digital 60070553 Cold-warm conditioner GP 11057855 Rearview mirror device 10823252 Instrument device 60022974 Combination appliance assembly A810508000188 Nameplate GP 10489096 Air conditioner system 11000794 Heater device A810509990058 Attached tools A810201056406 GPS device 11050114 Carnage assembly A810304000072 Wheel and hub device A210881000103 Tyre 60048436 Rear axle GP A220800000199 Rear axle main reducer GP 60108511 Rear hub brake drum GP 60084069 Brake GP, left, rear 60084068 Brake GP, right, rear 60048437 Axle GP, middle A220800000200 Reducer GP, mian, axle, middle A810314000022 Suspension system, equalizing A229900004215 Spring GP, plate, steel, rear 60026836 Suspension GP, equalizing A229900004214 Rod GP, thrusting A229900004220 Rod GP, thrusting A810201090032 Brake pipeline device 10929319 Cab lower pipeline installation 10937643 Pipeline, exhaust brake 11000065 Pipeline installation, air compressor to desicator A810422001709 Dedicator GP, with connector 10936827 Gearbox pipeline installation 10811481 Air tank installation 10163441 Valve, protection, 4-loop, with adaptor 10825996 Pipeline installation, upper, axle, middle and rear A810422001710 Connector block GP A810422001712 Relay valve GP, with adaptor 10138265 Valve, differential, axle, rear, with adaptor A810422001711 Valve, relay, differential, with adaptor A810102070179 Exhaust system device A220400000516 Valve, brake, exhaust 10783745 Chassis electrical system A241100000622 Right combination tail light assembly A241100000623 Left combinition tail lamp assembly A819700002634 Front suspension system A819700002464 Shock absorber Installation A229900010402 Spring GP, leaf, front A810422002852 Mudguard, engine A810201060357 Cab tilting mechanism A220301000186 Pump, oil, combination A810102070175 Air intake device A229900004221 Front axle GP 60024158 Knuckle GP, left A229900007207 Knuckle GP, right 60106517 Brack drum GP, with wheel hub 60106426 Brake GP, left 60106424 Brake GP, right 10026431 Engine suspension device B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine B229900002847 Engine A810102090104 Cooling device 10494828 Front bumper device 10543271 Steering system A810305990059 Pipe GP, oil return A810305030026 Link GP, drag 10462982 Connector, articulated A820205002285 Connector, articulated A810422001194 Mudguard, front, left A810422001193 Mudguard GP, front, right 11418993 Clutch system 10859079 Transmission system 60021314 Transmission GP 10904953 Fuel supply device 11044968 Drive shaft system 10531582 Shaft GP, drive, axle, rear 11691890 Upper part assembly of SY5250GJB6C A810103060136 Drive shaft GP, oil pump 10506900 Water supply system A810103000257 Mixing drum driving system A220201000044 Radiator B220501000177 Motor, plunger B220501000177 Motor, plunger B220501000177 Motor, plunger 11686235 Mixing drum, 6 cube 11686019 Mixing drum vane diagram A810599001050 Mark, painting A810302000159 Wheel, riding A810423002045 Ladder A810422001520 Feeding/unloading device A810422001520 Feeding/unloading device A810422001520 Feeding/unloading device A810497001626 Tube, support A810502020190 Guard rail, anti-collision, rear 11691934 Mechanical control system 10025840 Bearer, control A810599001172 Footplate, lower A810399000811 Bracket AS, chute, auxiliary A810502020169 Cover, tyre A810502020201 Cover, tyre, right A810502020202 Cover, tyre, left 11691910 Subframe mounting 10119758 Tool box GP 10970000 Tool box body 11691788 Subframe GP A810201055694 General electrical system diagram A810502000558 Guard rail, side A810502000556 Guard rail, left A810502000557 Guard rail, right

1

2

3

4

5

6

7

8

9

10

11

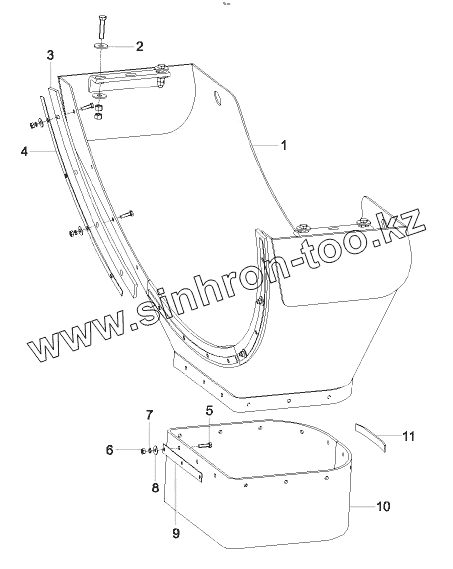

Позиция на иллюстрации	Заводской номер детали		Название детали
1	А810312019027		Hopper, discharge
2	А210405000001		Washer
3	10229160		Retainer plate
4	10057145		Plate
5	А210111000091		Bolt
6	А210307000012		Nut
7	А210404000005		Washer
8	А210401000017		Washer 8gb93
9	10059392		Strip, pressure
10	А820606990259		Plate, rubber
11	11041352		Strip, pressure

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
