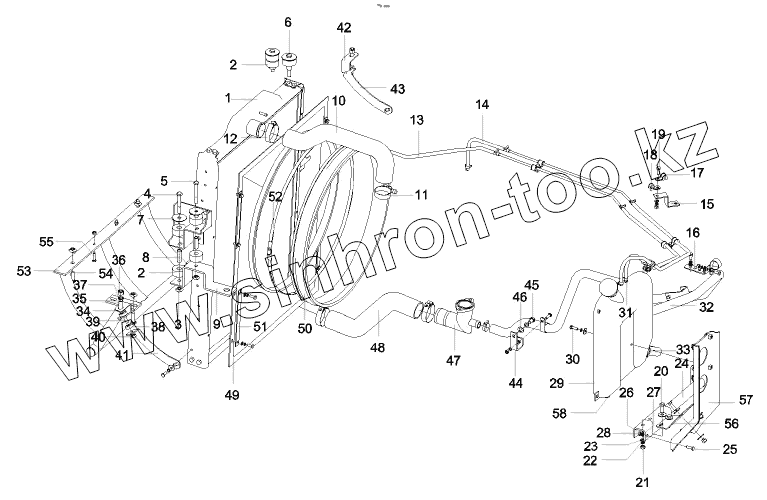

Каталог запасных частей к технике: SANY SY5250GJB6C. A810102090104 Cooling device

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
Позиция на иллюстрации Заводской номер детали Название детали
1 А810102091042 Radiator
2 А229900004242 Mat, soft, suspension, radiator
3 А210319000006 Nut
4 А210110000014 Bolt
5 А210110000015 Bolt
6 23002068 Bolt
7 А820101026989 Plate, keep, cushion, radiator
8 11629925 Bushing, limiting
9 А820101338816 Bracket, radiator
10 А810102099142 Pipe, upper, tank, water
11 А229900002031 Anchor ear, T-type
12 А229900003104 Anchor ear, T-type
13 А820606010981 Pipe, degassing, radiator
14 А820606010982 Pipe, degassing, engine
15 А820101338817 Bracket, tube, degassing
16 10060802 Bracket, tube, degassing
17 А229900004636 Sheet, clamp
18 А229900004637 Bushing, clamp
19 А210111000091 Bolt
20 А210111000018 Bolt
21 А210307000017 Nut
22 А210404000003 Washer
23 А210401000001 Washer
24 А810102090197 Bracket GP, expansion water tank
25 А210111000089 Bolt
26 А210405000007 Washer
27 А210401000017 Washer 8gb93
28 А210307000012 Nut
29 А229900005647 Plastic auxiliary water tank assembly with cover
30 А210111000090 Bolt
31 А229900002960 Hoop, ring, hose
32 А820606011242 Hose, rubber, outlet, radiator, auxiliary
33 А229900002962 Hoop, hose
34 11449470 Bracket, rod, support, left, radiator
35 А210111000207 Bolt
36 А210319000018 Nut
37 А210405000002 Washer
38 11449274 Cushion
39 А210111000028 Bolt
40 А210319000001 Nut
41 11449473 Bracket, rod, support, left, radiator
42 11449472 Bracket, rod, support, right, radiator
43 11449471 Bracket, rod, support, right, radiator
44 А820101338819 Bracket, hose, rubber, outlet, radiator, auxiliary
45 А210111000036 Bolt
46 А210401000002 Washer
47 10110193 Pipe, water, lower, engine
48 А810102099126 Pipe, lower, water tank
49 А810102094027 Cover, wind-lead, tank, water
50 А230199000045 Ring, wind, rubber
51 10110177 Plate, keep, wind lead cover, water tank
52 А229900004638 Band, steel
53 10020745 Weldment GP, guardrail, water tank
54 А210111000040 Bolt
55 А210111000039 Bolt
56 А229900006450 Bracket, tank, water, auxiliary
57 А229900006449 Bearing, tank, water, auxiliary
58 А210333000010 Plug, screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
