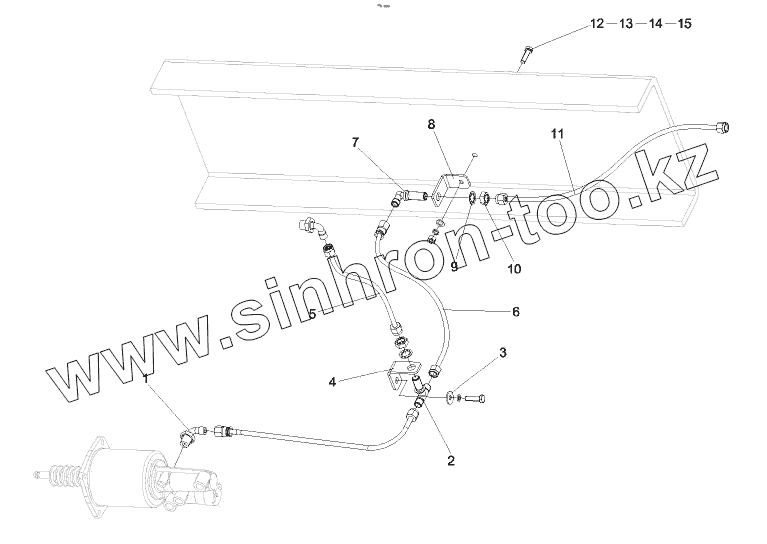

10936827 Gearbox pipeline installation
Каталог запасных частей к технике: SANY SY5250GJB6C. 10936827 Gearbox pipeline installation
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
11701309 SY5250GJB6C Concrete Mixer Truck
11044328 Cargo vehicle chassis body
10182010 Cab GP
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900008546 Cab assembly
A229900005118 Lifter GP. electric, left
A229900005119 Lifter GP. electric, right
A249900001094 Box. distribution, power, central. 32 digital
60070553 Cold-warm conditioner GP
11057855 Rearview mirror device
10823252 Instrument device
60022974 Combination appliance assembly
A810508000188 Nameplate GP
10489096 Air conditioner system
11000794 Heater device
A810509990058 Attached tools
A810201056406 GPS device
11050114 Carnage assembly
A810304000072 Wheel and hub device
A210881000103 Tyre
60048436 Rear axle GP
A220800000199 Rear axle main reducer GP
60108511 Rear hub brake drum GP
60084069 Brake GP, left, rear
60084068 Brake GP, right, rear
60048437 Axle GP, middle
A220800000200 Reducer GP, mian, axle, middle
A810314000022 Suspension system, equalizing
A229900004215 Spring GP, plate, steel, rear
60026836 Suspension GP, equalizing
A229900004214 Rod GP, thrusting
A229900004220 Rod GP, thrusting
A810201090032 Brake pipeline device
10929319 Cab lower pipeline installation
10937643 Pipeline, exhaust brake
11000065 Pipeline installation, air compressor to desicator
A810422001709 Dedicator GP, with connector
10936827 Gearbox pipeline installation
10811481 Air tank installation
10163441 Valve, protection, 4-loop, with adaptor
10825996 Pipeline installation, upper, axle, middle and rear
A810422001710 Connector block GP
A810422001712 Relay valve GP, with adaptor
10138265 Valve, differential, axle, rear, with adaptor
A810422001711 Valve, relay, differential, with adaptor
A810102070179 Exhaust system device
A220400000516 Valve, brake, exhaust
10783745 Chassis electrical system
A241100000622 Right combination tail light assembly
A241100000623 Left combinition tail lamp assembly
A819700002634 Front suspension system
A819700002464 Shock absorber Installation
A229900010402 Spring GP, leaf, front
A810422002852 Mudguard, engine
A810201060357 Cab tilting mechanism
A220301000186 Pump, oil, combination
A810102070175 Air intake device
A229900004221 Front axle GP
60024158 Knuckle GP, left
A229900007207 Knuckle GP, right
60106517 Brack drum GP, with wheel hub
60106426 Brake GP, left
60106424 Brake GP, right
10026431 Engine suspension device
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
B229900002847 Engine
A810102090104 Cooling device
10494828 Front bumper device
10543271 Steering system
A810305990059 Pipe GP, oil return
A810305030026 Link GP, drag
10462982 Connector, articulated
A820205002285 Connector, articulated
A810422001194 Mudguard, front, left
A810422001193 Mudguard GP, front, right
11418993 Clutch system
10859079 Transmission system
60021314 Transmission GP
10904953 Fuel supply device
11044968 Drive shaft system
10531582 Shaft GP, drive, axle, rear
11691890 Upper part assembly of SY5250GJB6C
A810103060136 Drive shaft GP, oil pump
10506900 Water supply system
A810103000257 Mixing drum driving system
A220201000044 Radiator
B220501000177 Motor, plunger
B220501000177 Motor, plunger
B220501000177 Motor, plunger
11686235 Mixing drum, 6 cube
11686019 Mixing drum vane diagram
A810599001050 Mark, painting
A810302000159 Wheel, riding
A810423002045 Ladder
A810422001520 Feeding/unloading device
A810422001520 Feeding/unloading device
A810422001520 Feeding/unloading device
A810497001626 Tube, support
A810502020190 Guard rail, anti-collision, rear
11691934 Mechanical control system
10025840 Bearer, control
A810599001172 Footplate, lower
A810399000811 Bracket AS, chute, auxiliary
A810502020169 Cover, tyre
A810502020201 Cover, tyre, right
A810502020202 Cover, tyre, left
11691910 Subframe mounting
10119758 Tool box GP
10970000 Tool box body
11691788 Subframe GP
A810201055694 General electrical system diagram
A810502000558 Guard rail, side
A810502000556 Guard rail, left
A810502000557 Guard rail, right
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
А229900003045
Adaptor, right angle, adjustable
2
А229900004384
Connector, tee
3
А210405000007
Washer
4
А820101027323
Bracket, hose
5
А819700001840
Tube GP, nylon
6
А229900005304
Hose, brake
7
А210748300000
Body, connector
8
А820101343021
Bracket, hose
9
А210431000005
Washer
10
А210334000015
Nut
11
А819700002753
Tube GP, nylon
12
А210111000091
Bolt
13
А210307000012
Nut
14
А210404000005
Washer
15
А210401000017
Washer 8gb93
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
